2018 Infiniti QX80 AWDFACTORY OEM SERVICE PROCEDURE

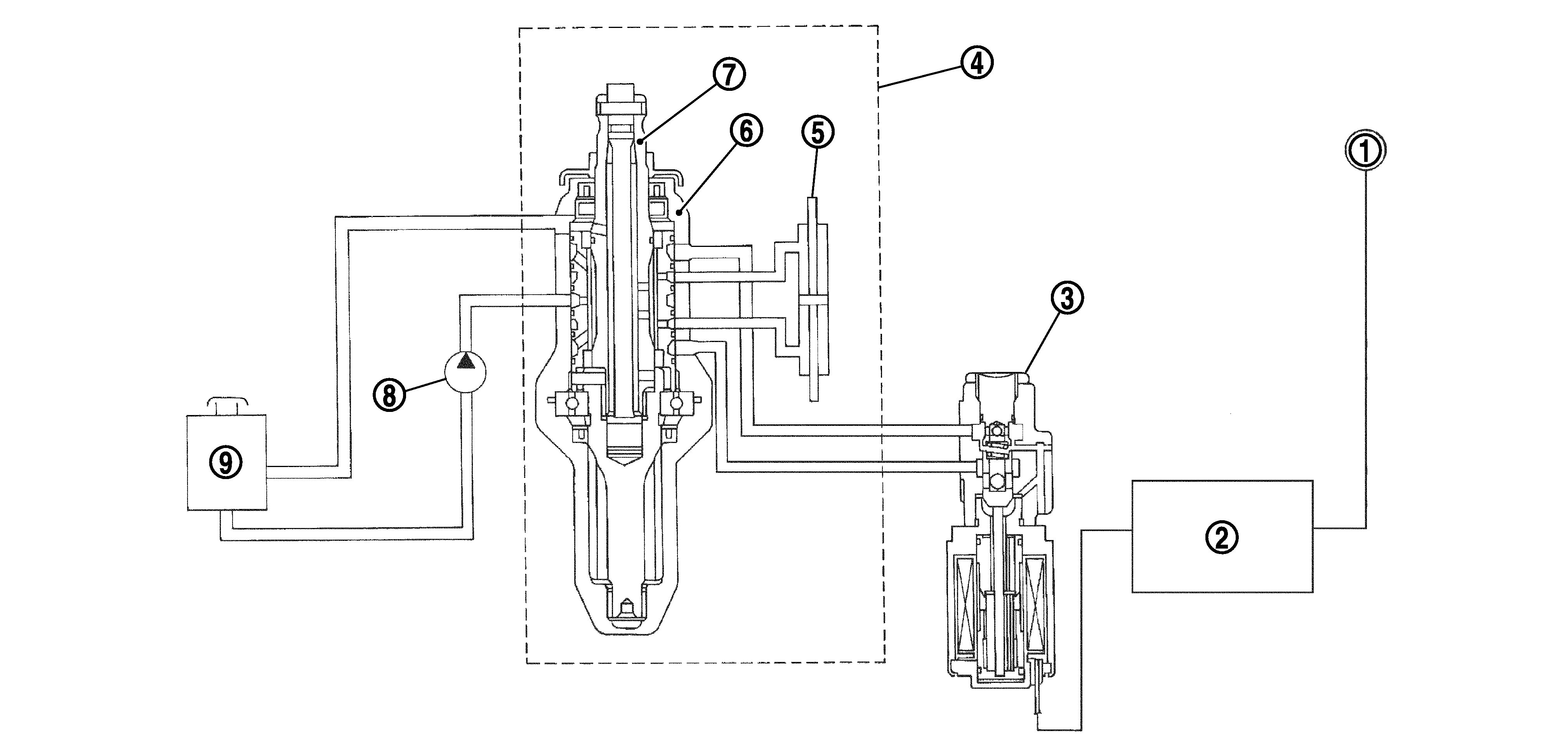

Cross-Sectional View

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Combination meter	2.	Power steering control unit	3.	Power steering solenoid valve
4.	Steering gear assembly	5.	Gear housing assembly	6.	Gear sub-assembly
7.	Pinion	8.	Power steering oil pump	9.	Reservoir tank
