Courtesy of NISSAN NORTH AMERICA, INC.

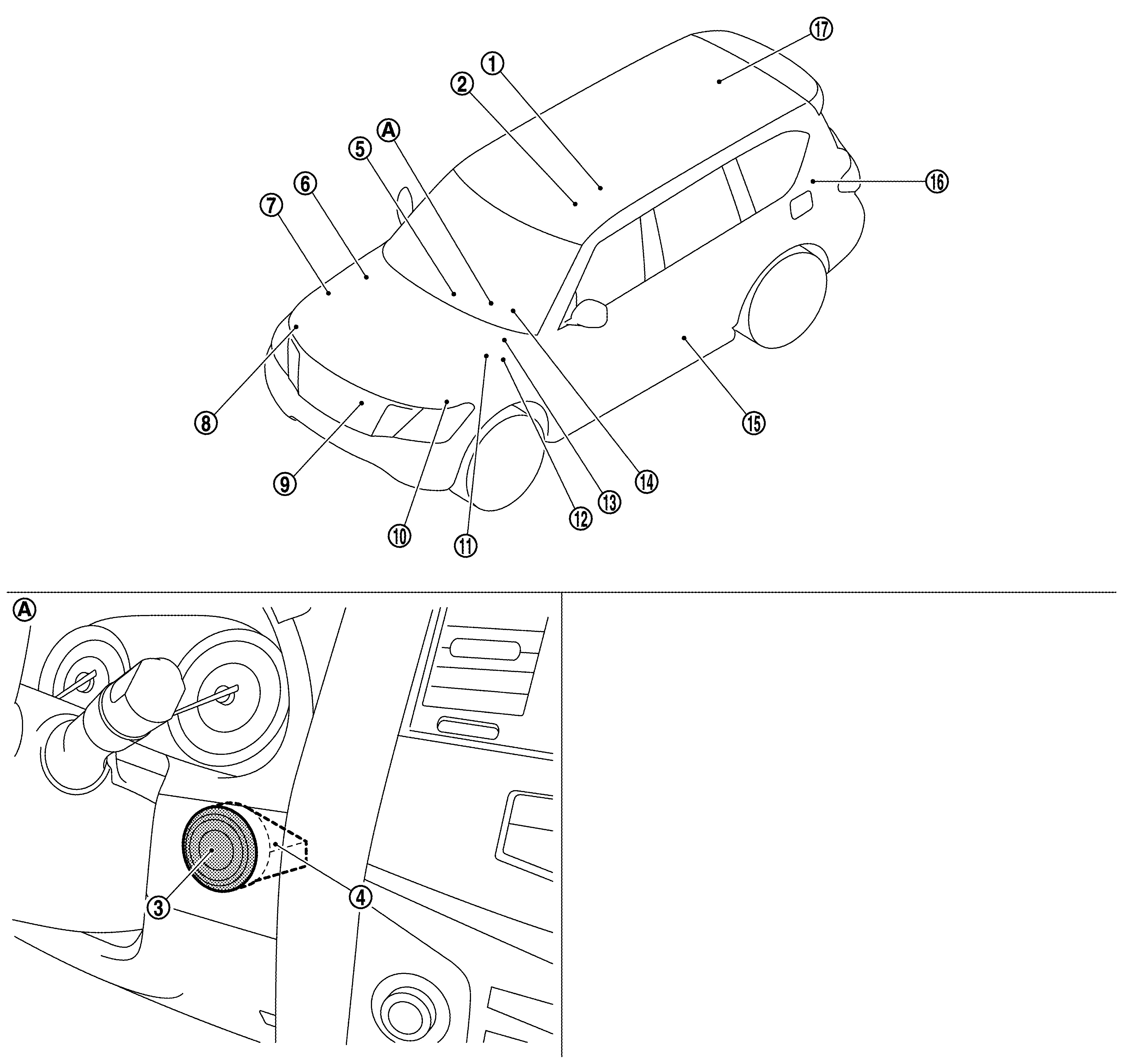

1.	Inside key antenna (console) Refer to Component Parts Location .	2.	A/T assembly Refer to Components Location .	3.	Push-button ignition switch
4.	NATS antenna amp.	5.	Inside key antenna (instrument center) Refer to Component Parts Location .	6.	IPDM E/R Refer to Components Location .
7.	ECM Refer to Components Location .	8.	Hood switch 1	9.	Horn
10.	Hood switch 2	11.	ABS actuator and electric unit (control unit) Refer to Components Location .	12.	Stop lamp switch Refer to Components Location .
13.	BCM Refer to Components Location .	14.	Combination meter Refer to Components Location .	15.	Front door switch (driver side) Refer to Component Parts Location .
16	Remote keyless entry receiver Refer to Component Parts Location .	17.	Inside key antenna (luggage room) Refer to Component Parts Location .
A.	Behind push-button ignition switch
