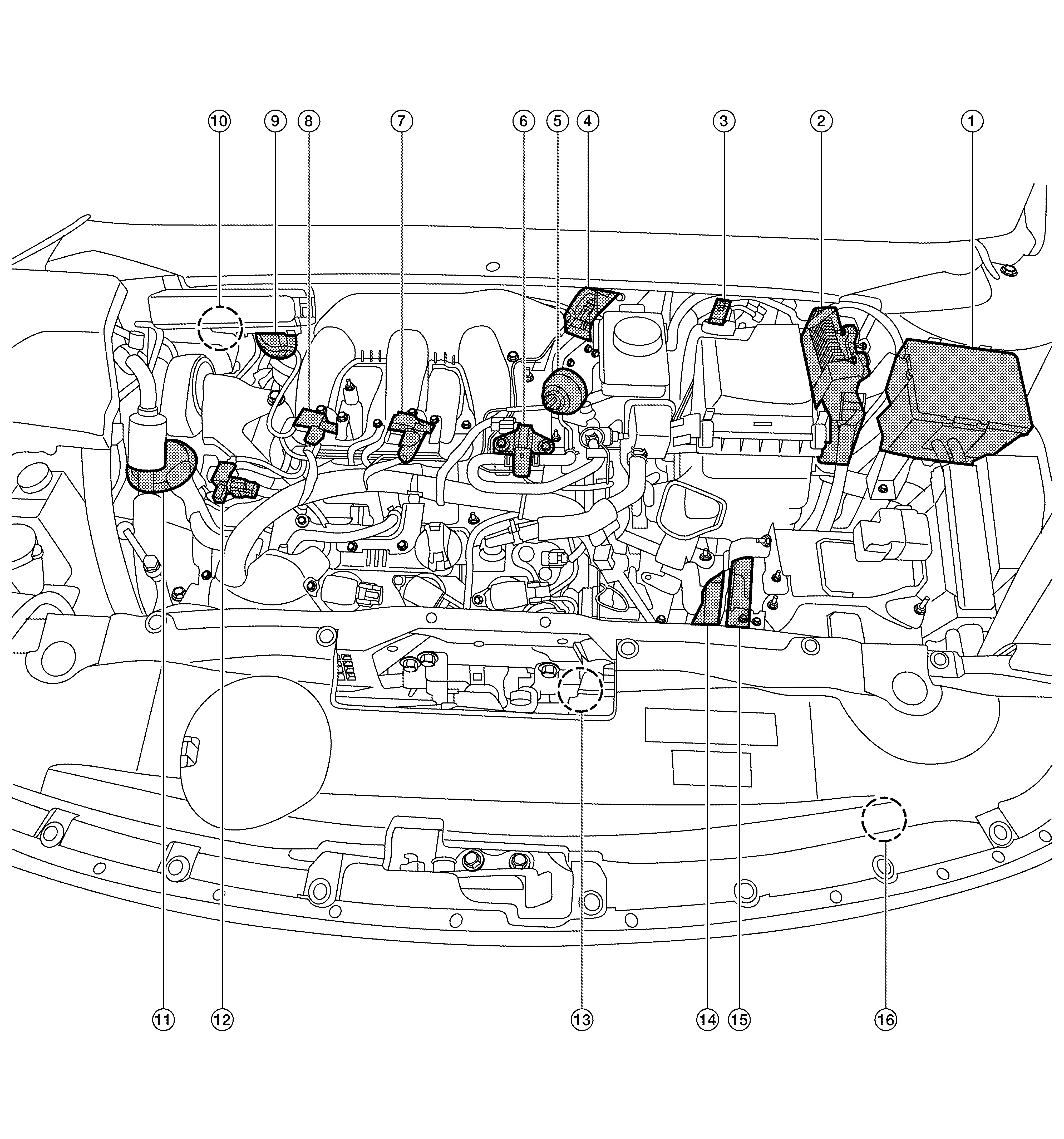

Engine Room Component
|
No. |
Component |
Function |
|
|
IPDM E/R |
IPDM E/R controls the internal relays and the actuators. When CAN communication with ECM is impossible, IPDM E/R performs fail-safe control. |
|
|
ECM (With Barometric Pressure Sensor) |
|
|
|
Mass Air Flow Sensor (With Intake Air Temperature Sensor) (Bank 1) |
|
|
|
Electric Throttle Control Actuator |
|
|
|
Power Valve Actuator 2 |
|
|
|
EVAP Canister Purge Volume Control Solenoid Valve |
|
|
|
VIAS Control Solenoid Valve 2 |
|
|
|
VIAS Control Solenoid Valve 1 |
|
|
|
Power Valve Actuator 1 |
|
|
|
ABS Actuator And Electric Unit (Control Unit) |
Mainly transmits the following signal to ECM via CAN Communication.
|
|
|
Rear Electronic Controlled Engine Mount |
|
|
|
Electronic Controlled Engine Mount Control Solenoid Valve |
|
|
|
Front Electronic Controlled Engine Mount |
|
|
|
TCM |
Mainly transmits the following signal to ECM via CAN Communication.
|
|
|
Electric Intake Valve Timing Control Module |
|
|
|
Refrigerant Pressure Sensor |
