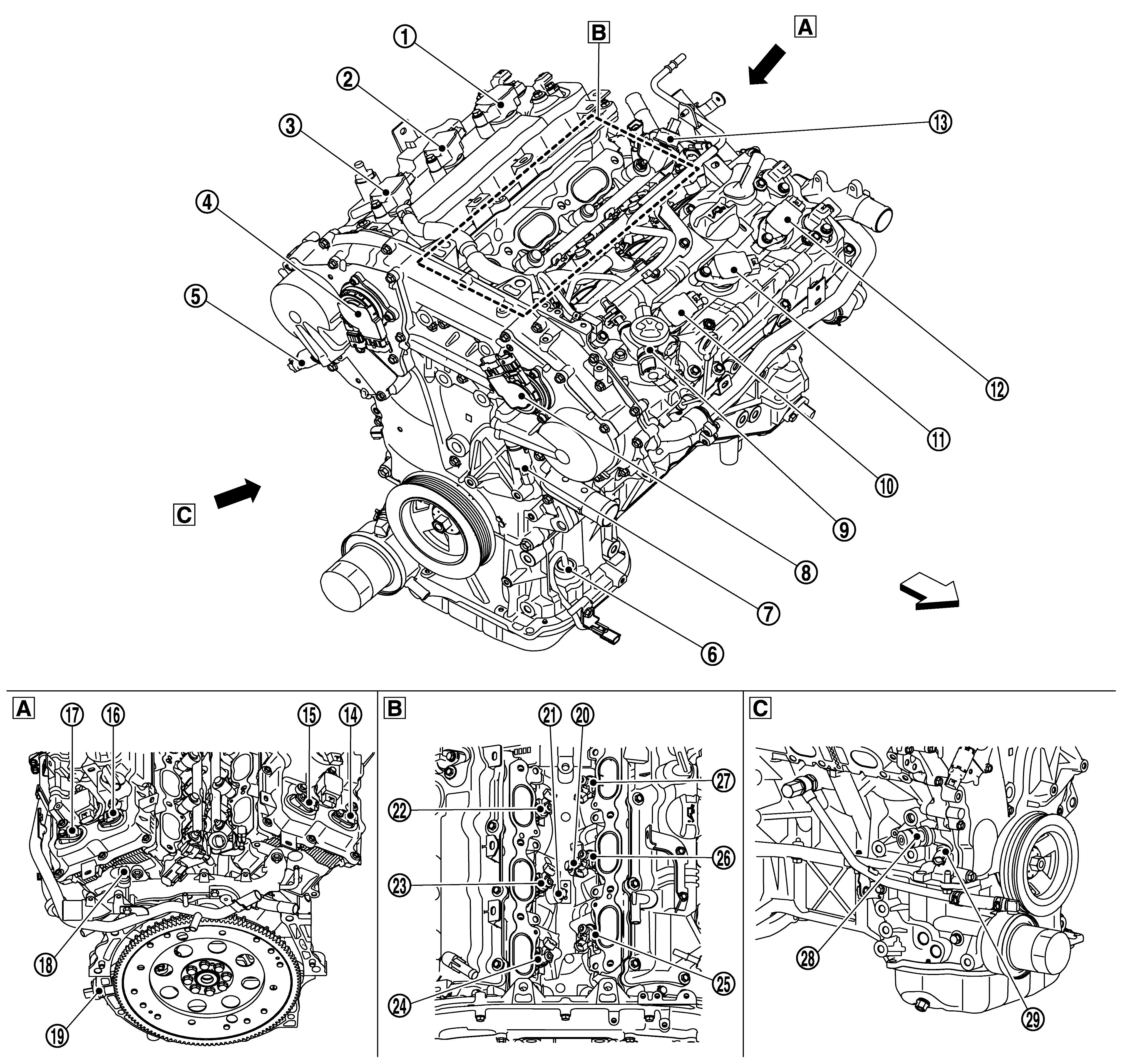

Engine Assembly Component
|
|
Rear view of the engine |
|
Top view of the engine |
|
Side view of the engine |
|
|
Vehicle front |
|
No. |
Component |
Function |
|
|
Ignition Coil (With Power Transistor) And Spark Plug (No. 5 Cylinder) |
|
|
|
Ignition Coil (With Power Transistor) And Spark Plug (No. 3 Cylinder) |
|
|
|
Ignition Coil (With Power Transistor) And Spark Plug (No. 1 Cylinder) |
|
|
|
Electric Intake Valve Timing Control Actuator (Bank 1) |
|
|
|
Exhaust Valve Timing Control Solenoid Valve (Bank 1) |
|
|
|
Engine Oil Pressure Control Solenoid Valve |
|
|
|
Exhaust Valve Timing Control Solenoid Valve (Bank 2) |
|
|
|
Electric Intake Valve Timing Control Actuator (Bank 2) |
|
|
|
High Pressure Fuel Pump |
|
|
|
Ignition Coil (With Power Transistor) And Spark Plug (No. 2 Cylinder) |
|
|
|
Ignition Coil (With Power Transistor) And Spark Plug (No. 4 Cylinder) |
|
|
|
Ignition Coil (With Power Transistor) And Spark Plug (No. 6 Cylinder) |
|
|
|
Fuel Rail Pressure Sensor |
|
|
|
Exhaust Camshaft Position Sensor (Bank 1) |
|
|
|
Intake Camshaft Position Sensor (Bank 1) |
|
|
|
Intake Camshaft Position Sensor (Bank 2) |
|
|
|
Exhaust Camshaft Position Sensor (Bank 2) |
|
|
|
Engine Coolant Temperature Sensor |
|
|
|
Crankshaft Position Sensor |
|
|
|
Knock Sensor (Bank 2) |
|
|
|
Knock Sensor (Bank 1) |
|
|
|
Fuel Injector (No. 5 Cylinder) |
|
|
|
Fuel Injector (No. 3 Cylinder) |
|
|
|
Fuel Injector (No. 1 Cylinder) |
|
|
|
Fuel Injector (No. 2 Cylinder) |
|
|
|
Fuel Injector (No. 4 Cylinder) |
|
|
|
Fuel Injector (No. 6 Cylinder) |
|
|
|
Engine Oil Pressure Sensor |
|
|
|
Engine Oil Temperature Sensor |
