Physical Values
- ECM is located behind the instrument assist lower panel. For this inspection, remove passenger side instrument lower panel.
- Specification data are reference values and are measured between each terminal and ground.
- Pulse signal is measured by CONSULT.
|
Terminal No. (Wire color) |
Description |

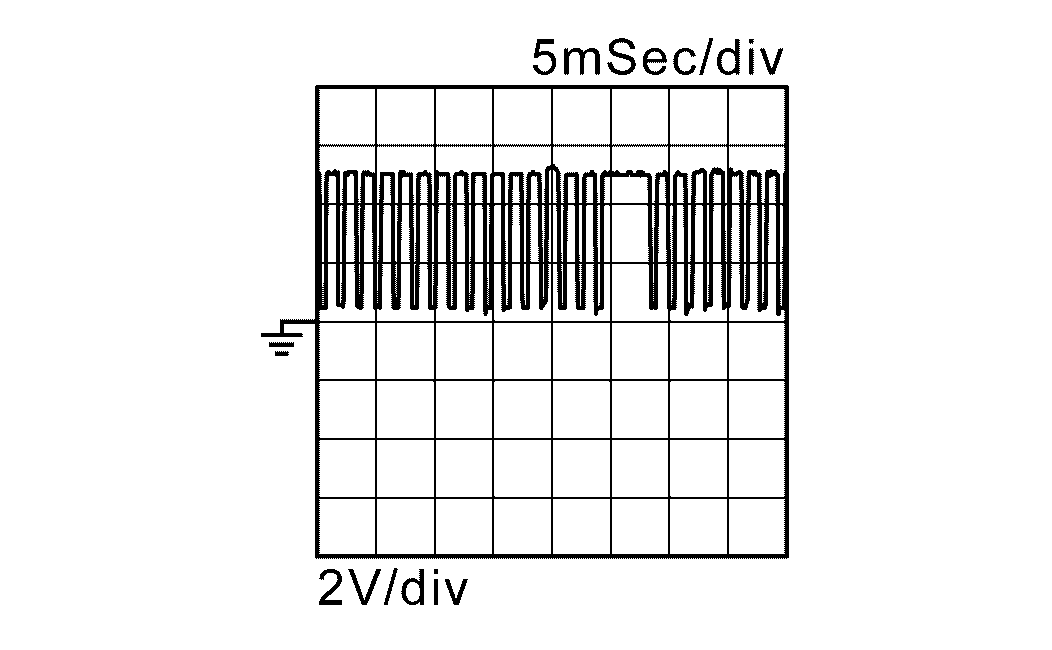

Condition |
Value (Approx.) |
||||
|
+ |
- |
Signal name |
Input/Output |
||||
|
1 (Y) |
204 (B) |
High pressure fuel pump power supply |
Input |
[Ignition switch: ON] |
BATTERY VOLTAGE (11 - 14 V) |
||
|
2 (B) |
-- |
ECM ground |
-- |
-- |
-- |
||
|
3 (SB) |
204 (B) |
Fuel injector driver power supply A1 |
Input |
[Ignition switch: ON] |
BATTERY VOLTAGE (11 - 14 V) |
||
|
4 (SB) |
204 (B) |
Fuel injector driver power supply A2 |
Input |
[Ignition switch: ON] |
BATTERY VOLTAGE (11 - 14 V) |
||
|
5 (SB) |
204 (B) |
Fuel injector driver power supply B1 |
Input |
[Ignition switch: ON] |
BATTERY VOLTAGE (11 - 14 V) |
||
|
6 (SB) |
204 (B) |
Fuel injector driver power supply B2 |
Input |
[Ignition switch: ON] |
BATTERY VOLTAGE (11 - 14 V) |
||
|
7 (B) |
-- |
ECM ground |
-- |
-- |
-- |
||
|
8 (B) |
84 (GR) |
Knock Sensor (bank 1) |
Input |
[Ignition switch: ON] |
2.43 V |
||
|
[Engine is running] Idle speed |
2.47 V* 1 |
||||||
|
9 (B) |
204 (B) |

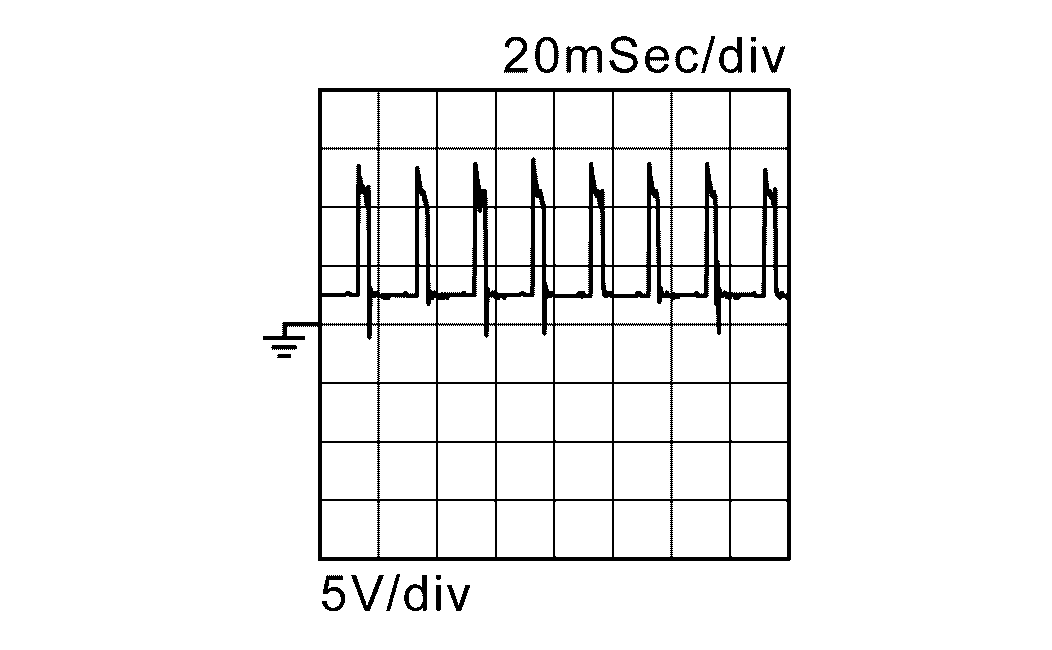

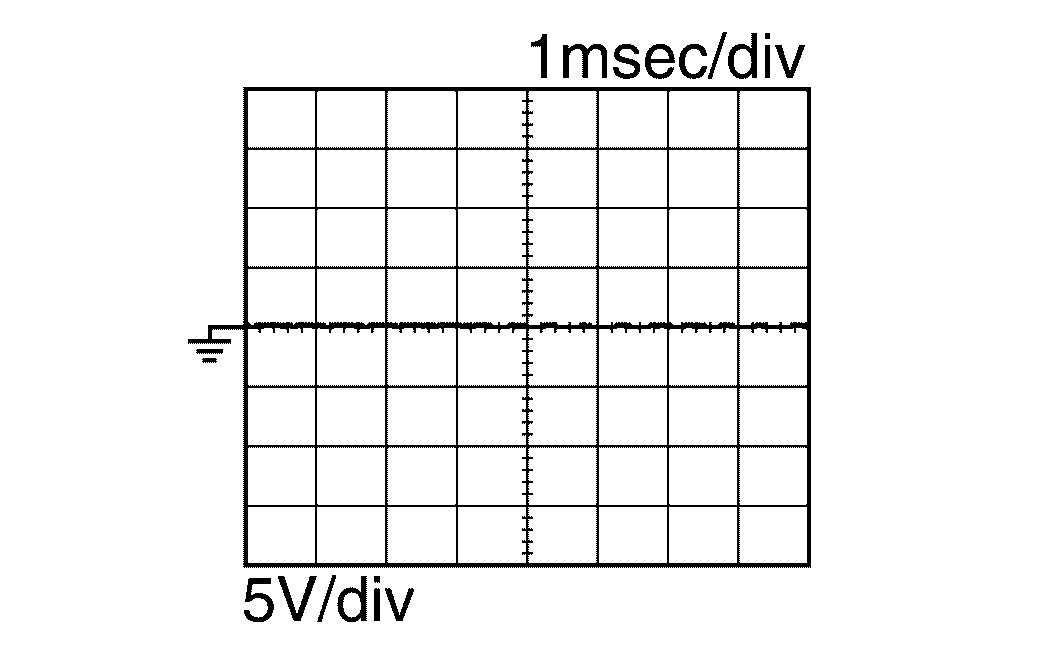

High pressure fuel pump (LO) |
Output |
[Ignition switch: ON] |
2.43 V |
||
|
[Engine is running]
NOTE:
The pulse cycle changes depending on RPM at idle
|
|||||||
|
[Engine is running]
|
|||||||
|
10 (W) |
204 (B) |

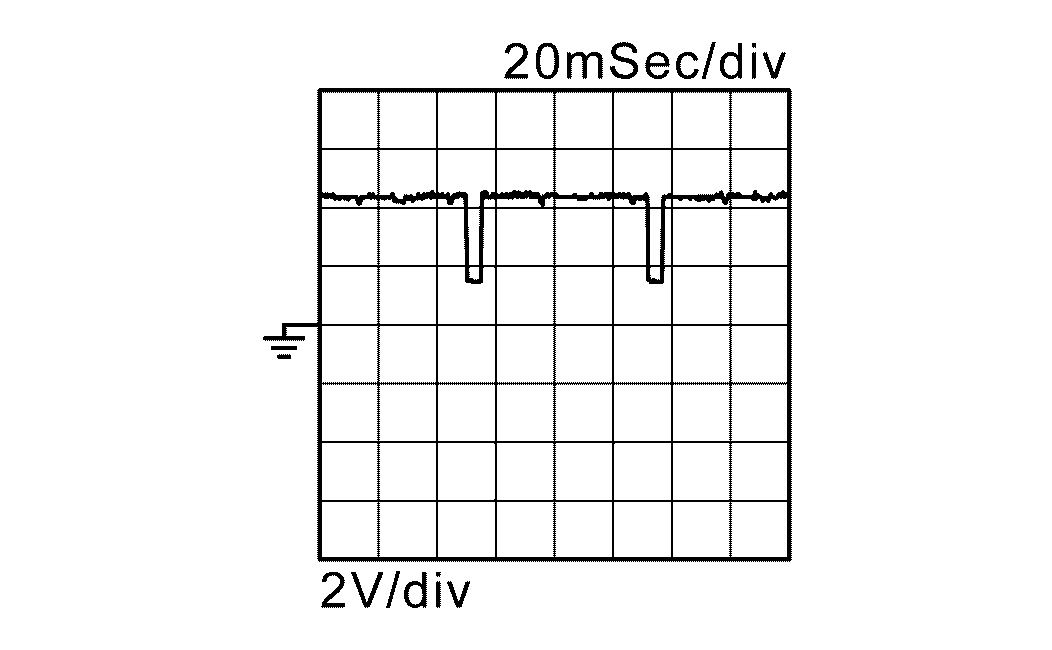

High pressure fuel pump (HI) |
Output |
[Ignition switch: ON] |
2.43 V |
||
|
[Engine is running]
NOTE:
The pulse cycle changes depending on RPM at idle
|
|||||||
|
[Engine is running]
|
|||||||
|

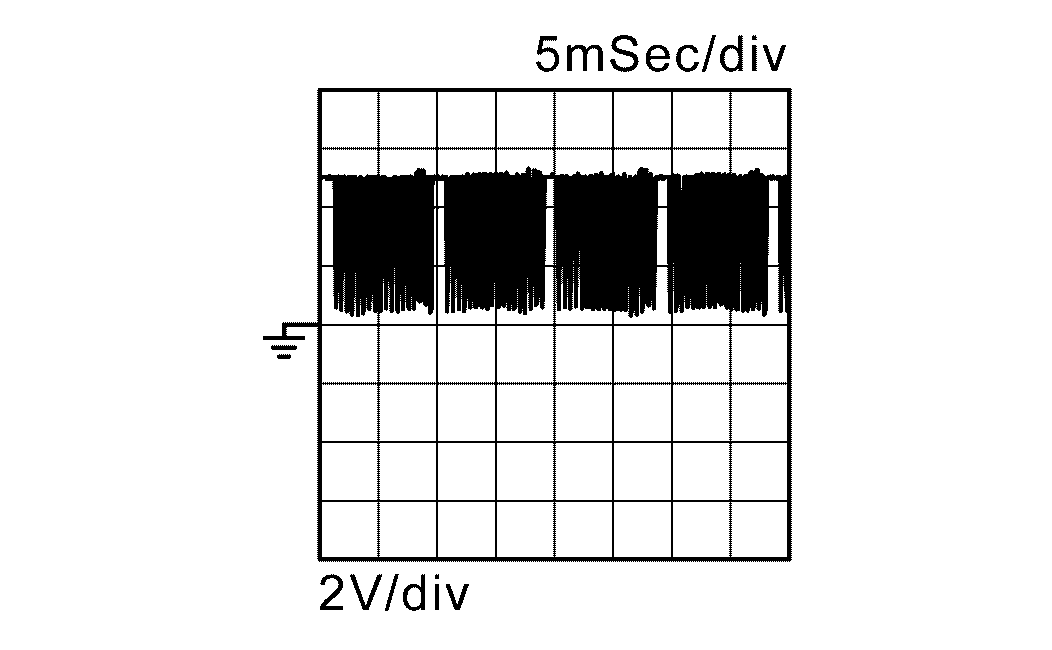

11 (Y) 12 (Y) 13 (Y) 15 (Y) 16 (Y) 19 (Y) |
204 (B) |

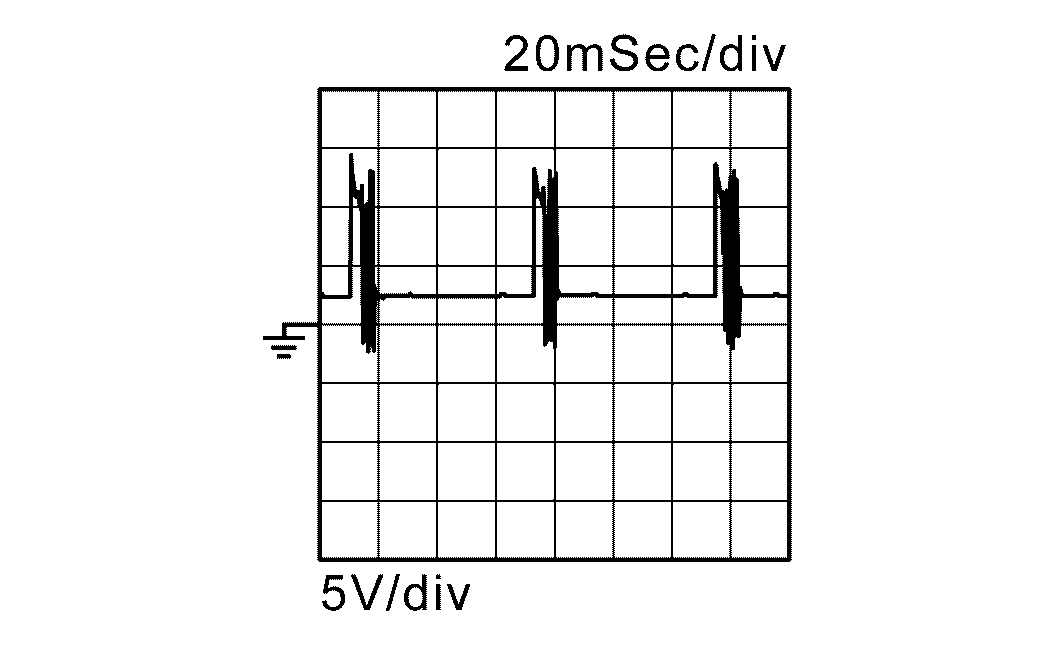

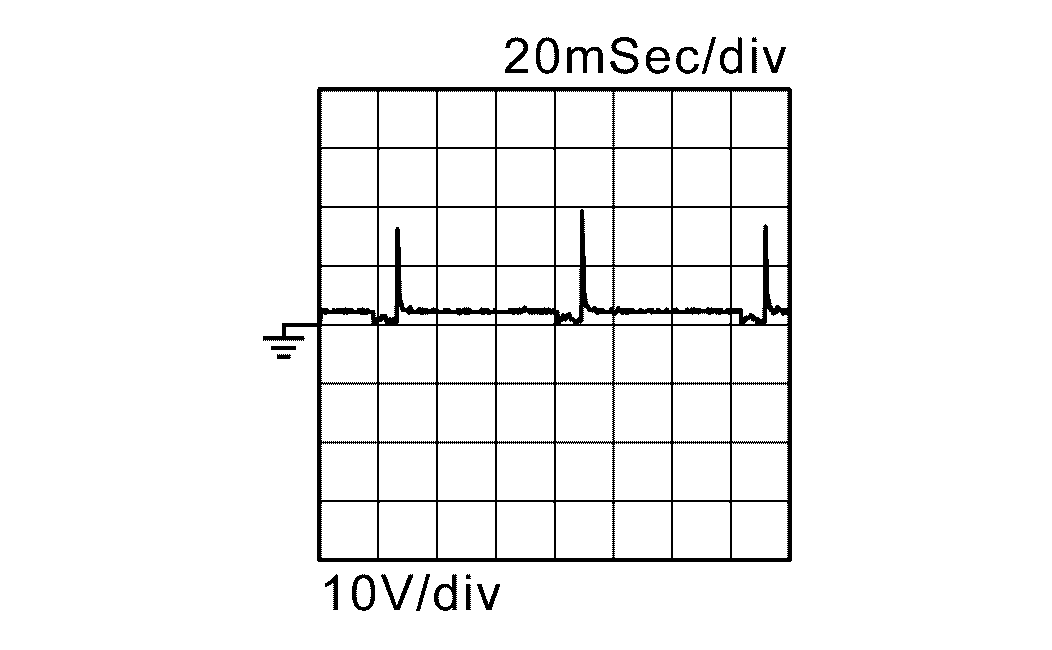

Fuel injector No. 1 (HI) Fuel injector No. 3 (HI) Fuel injector No. 5 (HI) Fuel injector No. 2 (HI) Fuel injector No. 4 (HI) Fuel injector No. 6 (HI) |
Output |
[Ignition switch: ON] |
2.44 V |
||
|
[Engine is running]
NOTE:
The pulse cycle changes depending on RPM at idle
|
2.6 V |
||||||
|

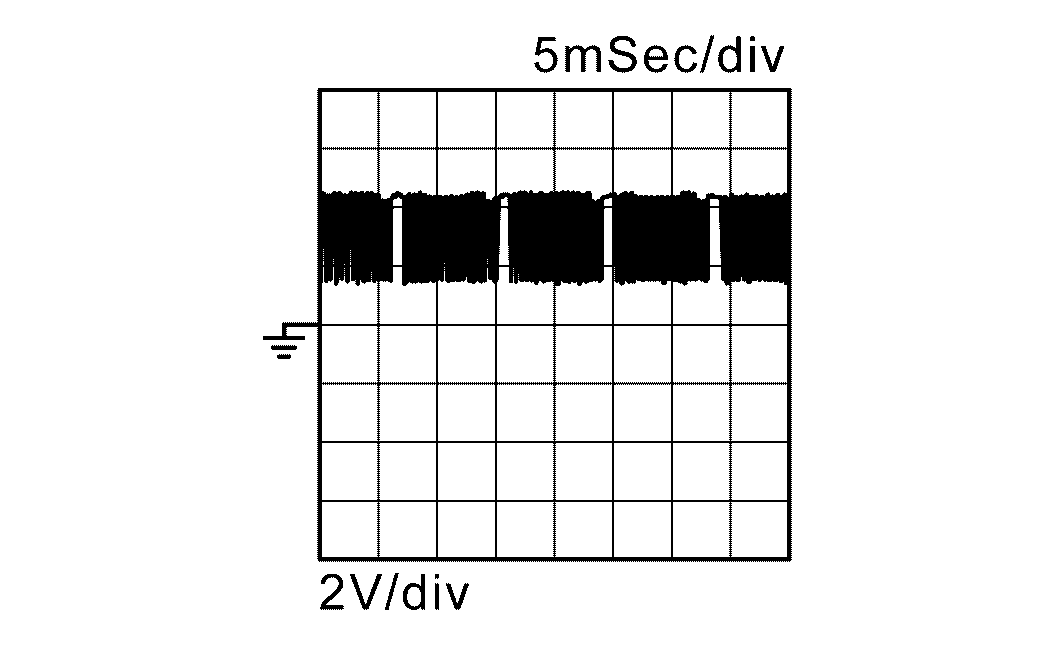

14 (BR) 17 (BR) 18 (BR) 20 (BR) 21 (BR) 22 (BR) |
204 (B) |

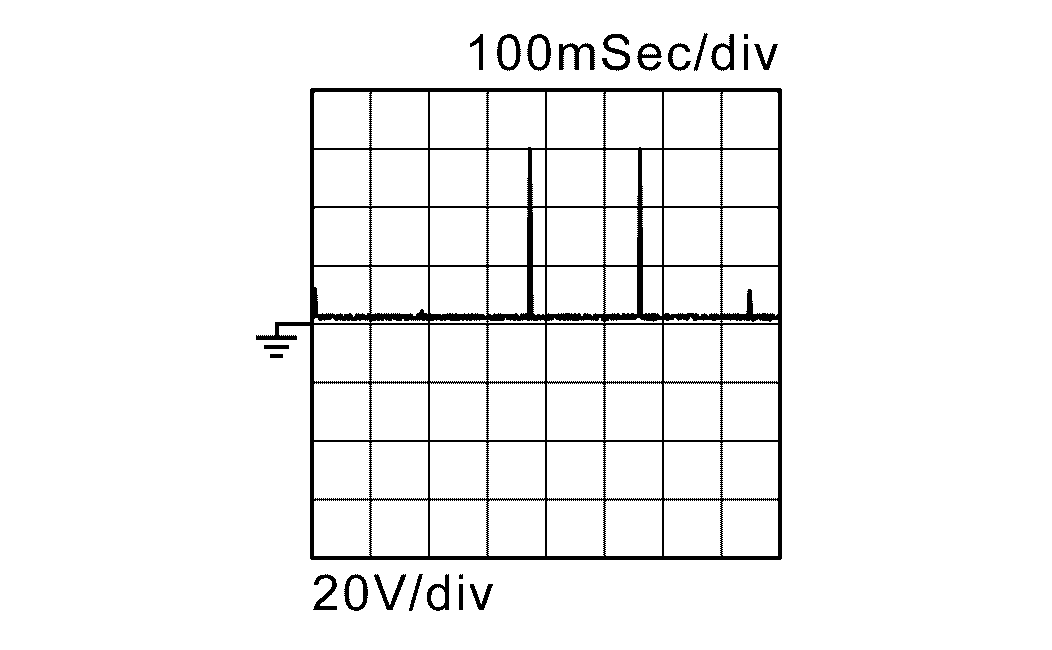

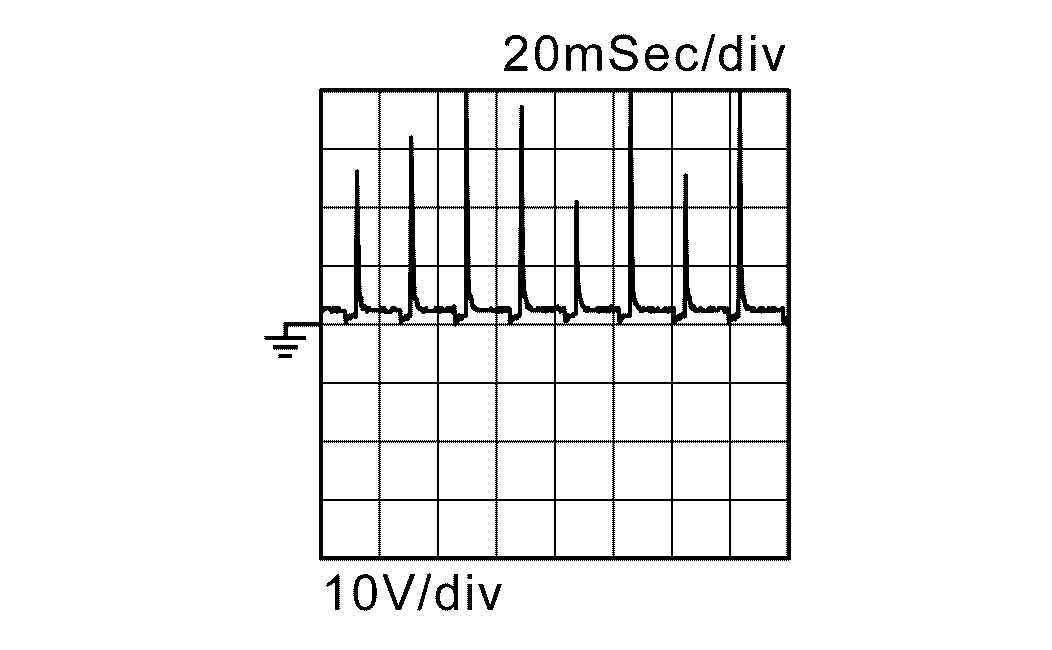

Fuel injector No. 3 (LO) Fuel injector No. 1 (LO) Fuel injector No. 5 (LO) Fuel injector No. 2 (LO) Fuel injector No. 4 (LO) Fuel injector No. 6 (LO) |
Output |
[Ignition switch: ON] |
2.44 V |
||
|
[Engine is running]
NOTE:
The pulse cycle changes depending on RPM at idle
|
2.55 V |
||||||
|
24 (G) |
-- |
Sensor ground (Engine oil pressure Sensor) |
-- |
-- |
-- |
||
|
25 (R) |
29 (LG) |

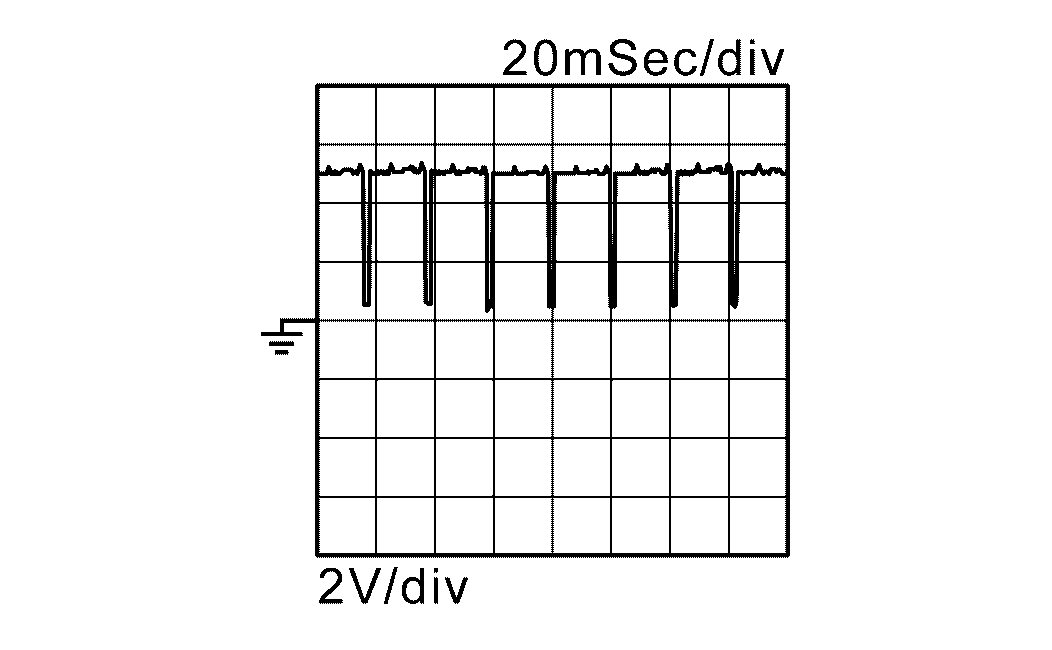

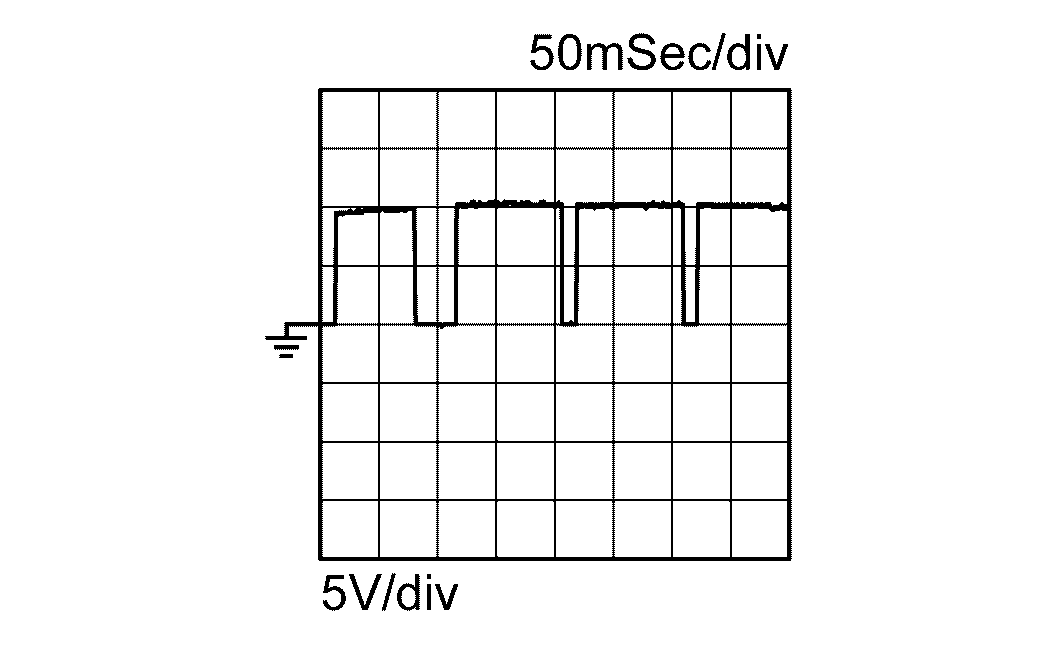

Intake camshaft position Sensor (bank 1) (Electric intake valve timing control signal) |
Output |
[Engine is running]
NOTE:
The pulse cycle changes depending on RPM at idle
|
4.0 - 5.0 V |
||
|
[Engine is running]
|
4.0 - 5.0 V |
||||||
|

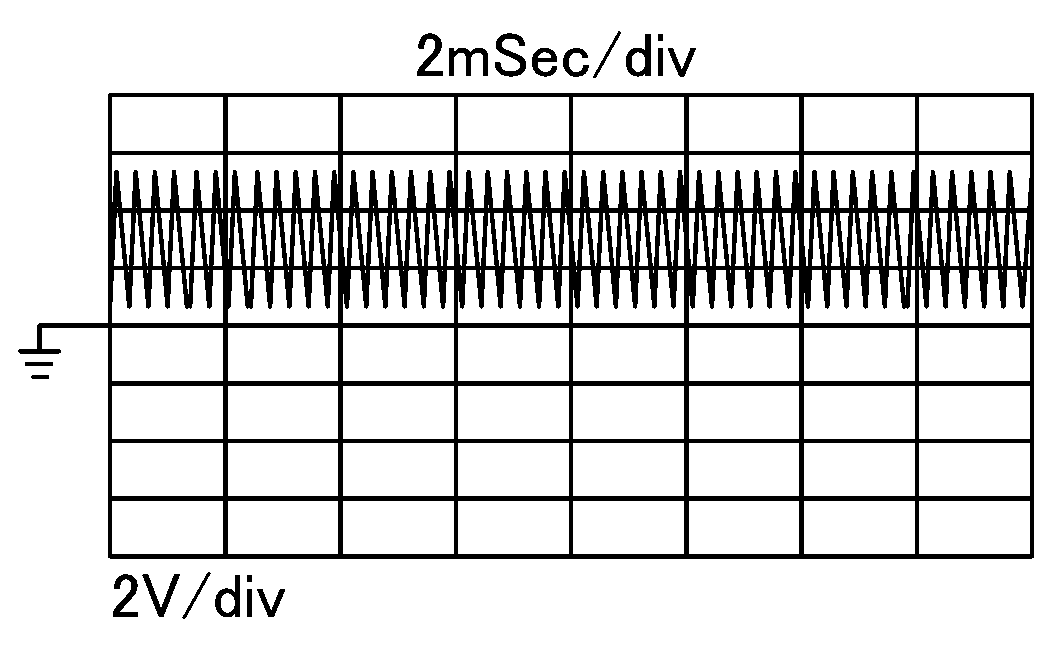

26 (GR) |
29 (LG) |

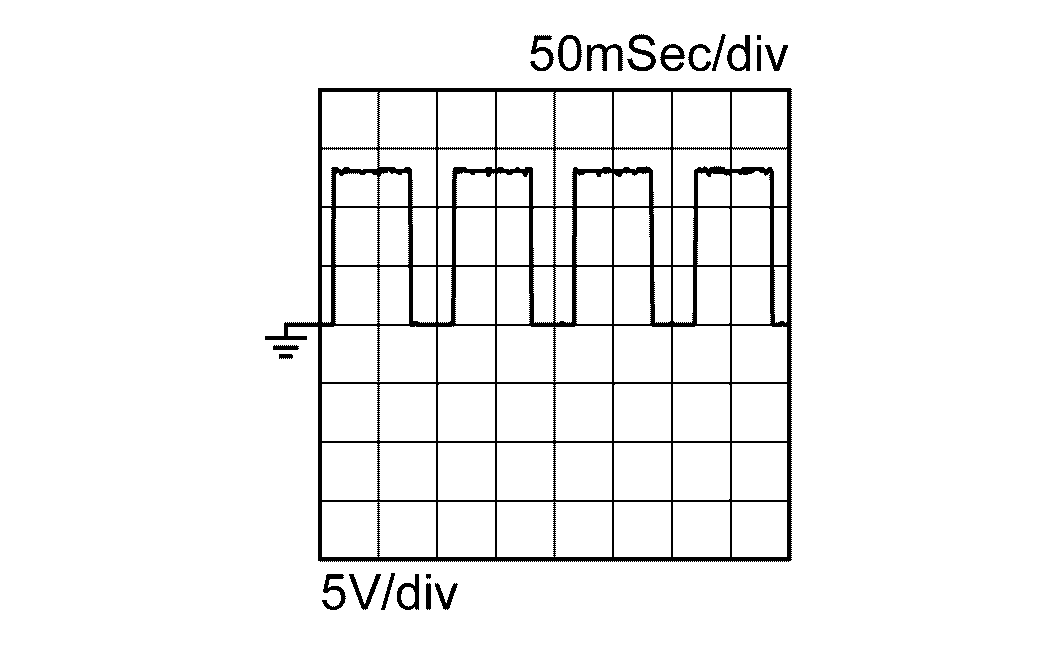

Intake camshaft position Sensor (bank 1) |
Input |
[Engine is running]
|
4.0 - 5.0 V |
||
|
[Engine is running]
|
4.0 - 5.0 V |
||||||
|
27 (B) |
-- |
Shield |
-- |
-- |
-- |
||
|
28 (Y) |
-- |
Sensor ground (Crankshaft position Sensor) |
-- |
-- |
-- |
||
|
29 (LG) |
-- |
Sensor ground [Intake camshaft position Sensor (bank 1), Exhaust camshaft position Sensor (bank 1)] |
-- |
-- |
-- |
||
|

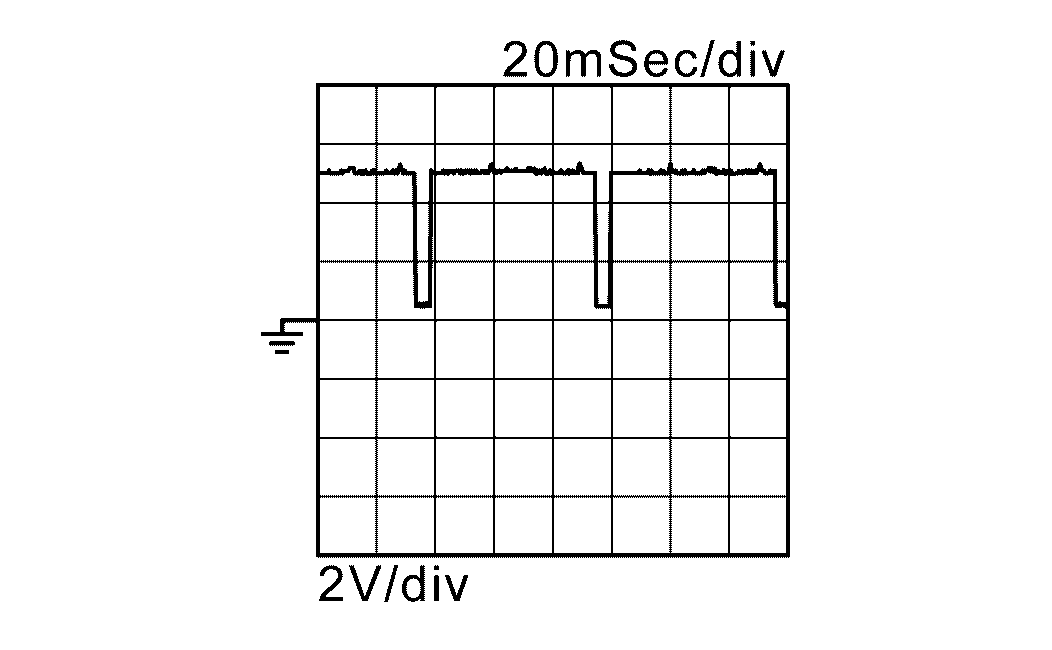

31 (L) |
28 (Y) |

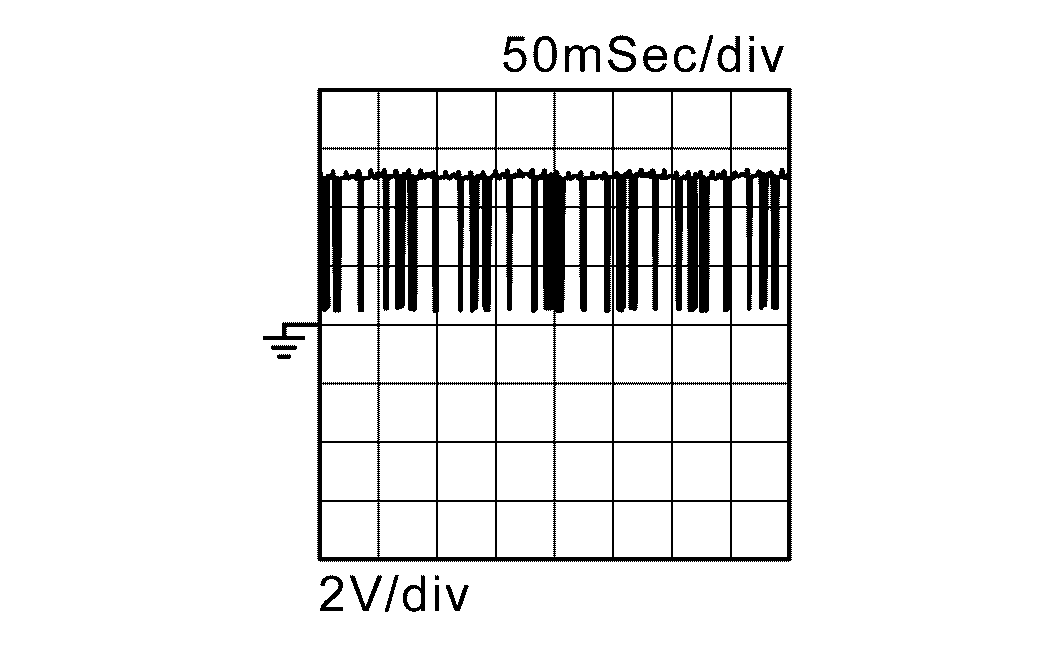

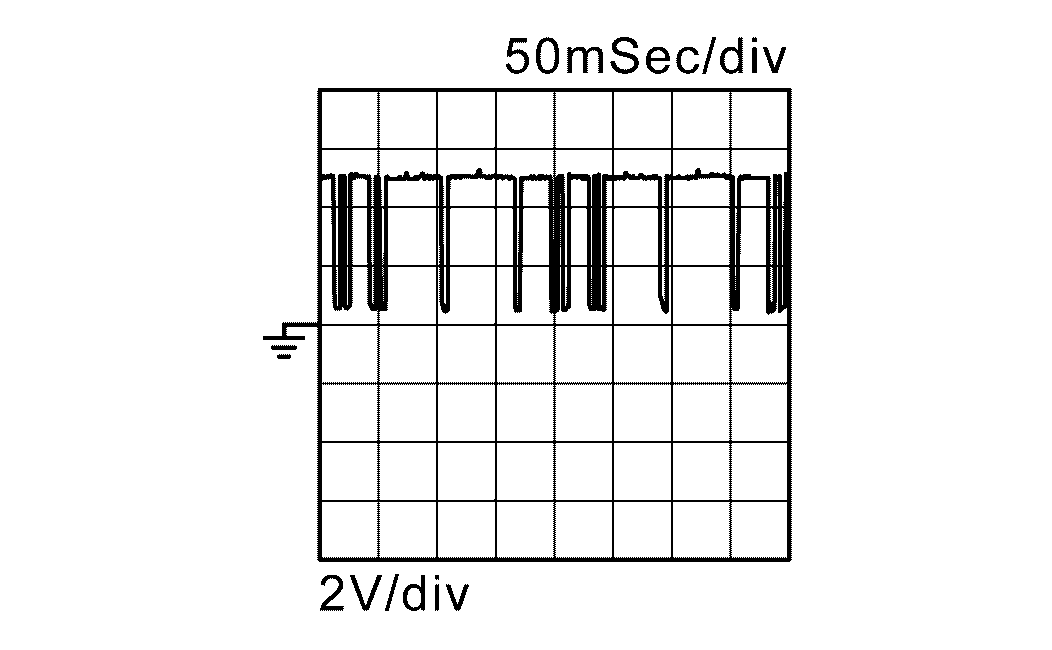

Crankshaft position Sensor |
Input |
[Engine is running]
|
|||
|
[Engine is running]
|
|||||||
|
32 (B) |
204 (B) |

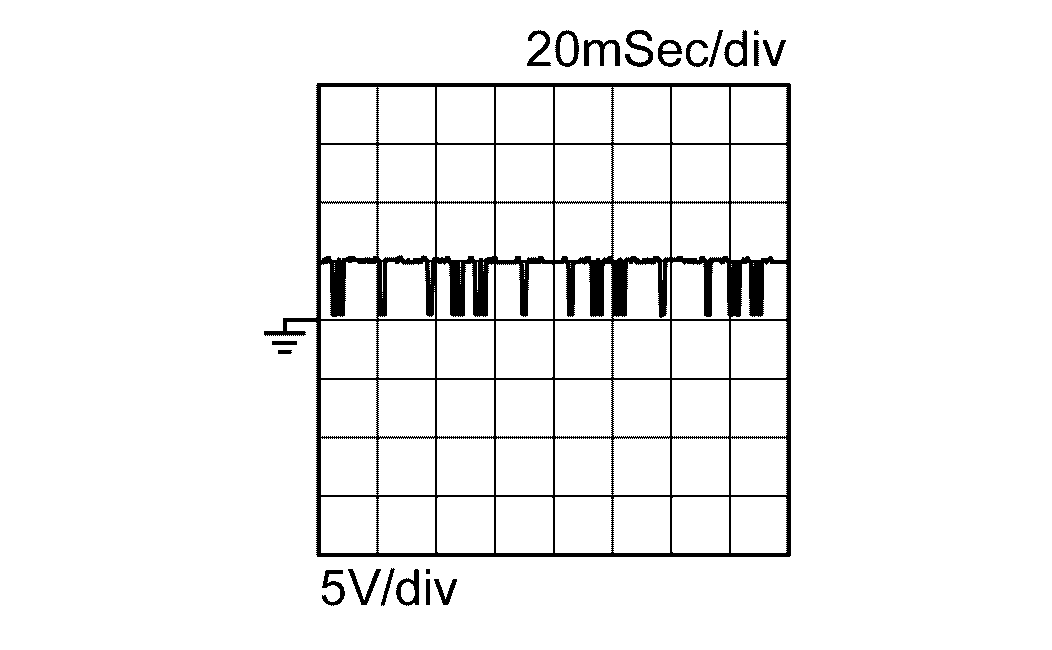

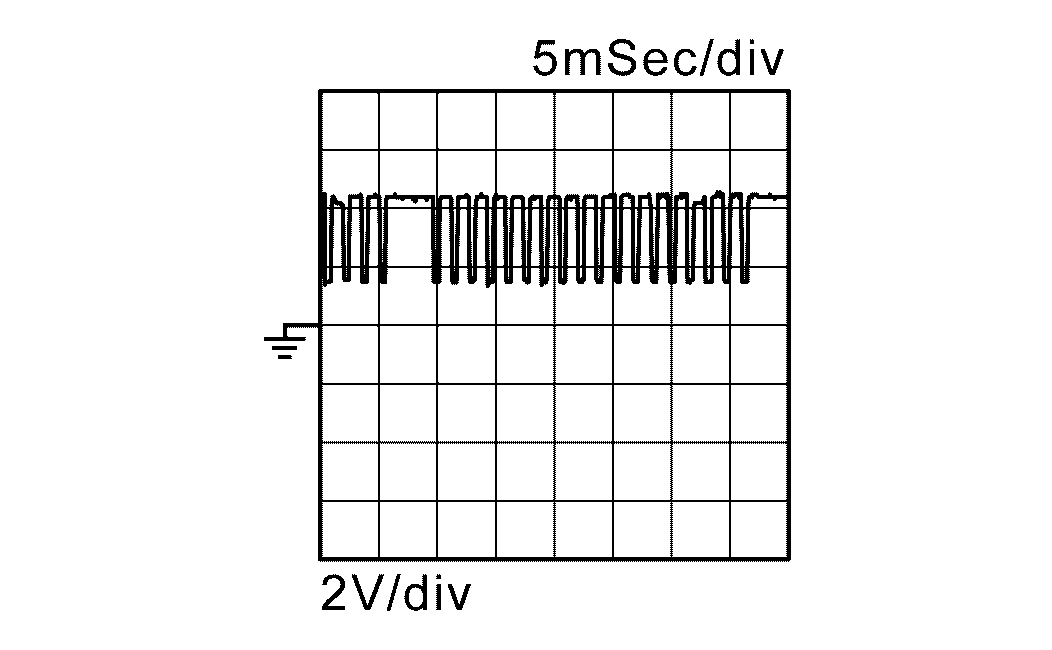

Crankshaft position Sensor (Electric intake valve timing control signal) |
Output |
[Engine is running]
|
|||
|
[Engine is running]
|
|||||||
|

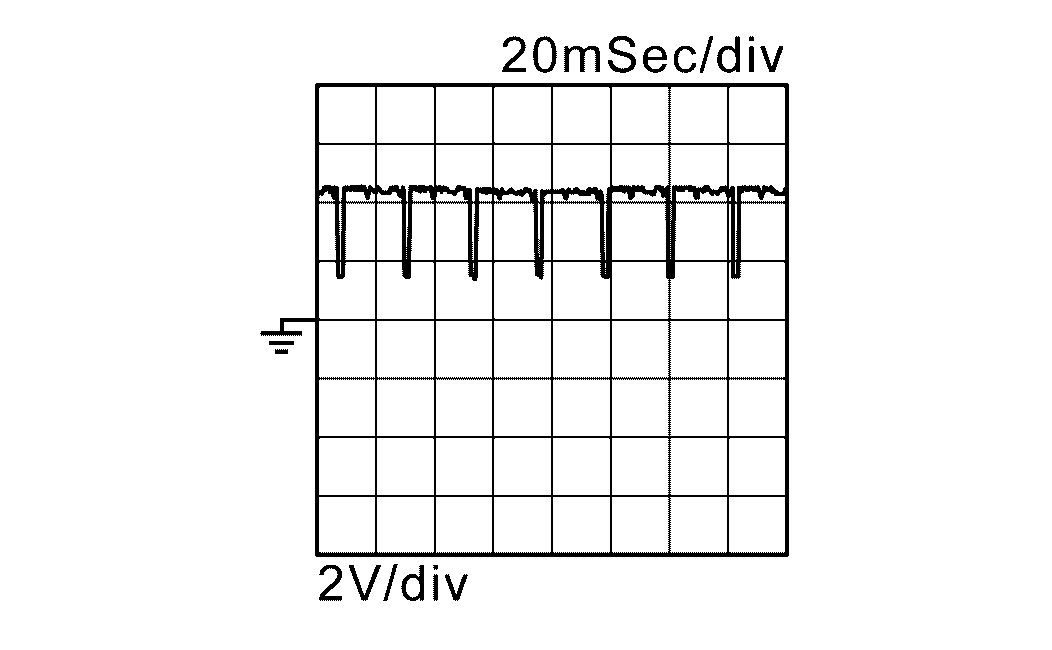

33 (GR) |
29 (LG) |

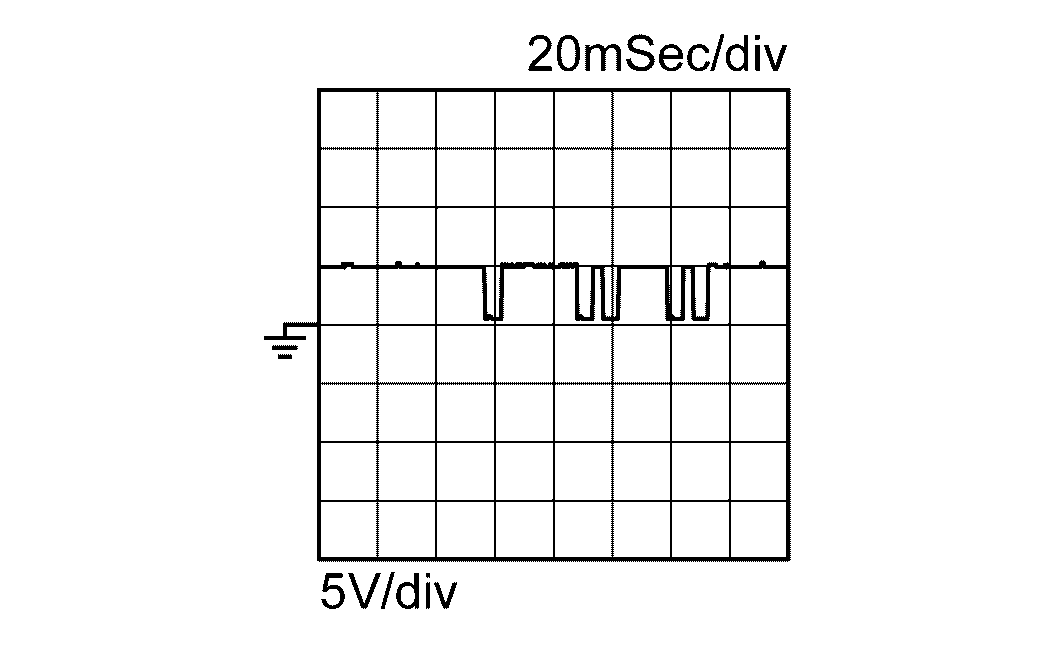

Exhaust camshaft position Sensor (bank 1) |
Input |
[Engine is running]
|
|||
|
[Engine is running]
|
|||||||
|
34 (LG) |
204 (B) |
Sensor power supply (Crankshaft position Sensor) |
-- |
[Ignition switch: ON] |
5 V |
||
|
35 (R) |
44 (G) |
Sensor power supply (Throttle position Sensor) |
-- |
[Ignition switch: ON] |
5 V |
||
|
36 (BR) |
204 (B) |
Sensor power supply [Intake camshaft position Sensor (bank 1), Exhaust camshaft position Sensor (bank 1)] |
-- |
[Ignition switch: ON] |
5 V |
||
|
37 (B) |
204 (B) |
Sensor power supply (Mass air flow Sensor, Intake air temperature Sensor) |
-- |
[Ignition switch: ON] |
5 V |
||
|
40 (V) |
42 (R) |
Intake air temperature Sensor |
Input |
[Ignition switch: ON]
|
2.1 V |
||
|
41 (W) |
42 (R) |
Mass air flow Sensor |
Input |
[Ignition switch: ON]
|
3, 700 Hz |
||
|
[Engine is running]
|
4, 714 - 5, 880 Hz |
||||||
|
[Engine is running]
|
6, 080 - 6, 600 Hz |
||||||
|
[Engine is running]
|
4, 714 - 5, 880 Hz -> 7, 200 Hz |
||||||
|
42 (R) |
-- |
Sensor ground (Mass air flow Sensor, Intake air temperature Sensor) |
-- |
-- |
-- |
||
|
43 (B) |
44 (G) |
Throttle position Sensor 1 |
Input |
[Ignition switch: ON]
|
More than 0.36 V |
||
|
[Ignition switch: ON]
|
Less than 4.75 V |
||||||
|
44 (G) |
-- |
Sensor ground (Throttle position Sensor) |
-- |
-- |
-- |
||
|
48 (W) |
44 (G) |
Throttle position Sensor 2 |
Input |
[Ignition switch: ON]
|
Less than 4.75 V |
||
|
[Ignition switch: ON]
|
More than 0.36 V |
||||||
|
50 (G) |
100 (B) |
Engine oil temperature Sensor |
Input |
[Engine is running]
|
3.27 V |
||
|
[Engine is running]
|
2.33 V |
||||||
|
[Engine is running]
|
1.26 V |
||||||
|
51 (R) |
24 (G) |
Engine oil pressure Sensor |
Input |
[Engine is running]
|
1.57 - 1.90 V |
||
|
[Engine is running]
|
1.61 - 2.12 V |
||||||
|
53 (LG) |
83 (V) |
Fuel rail pressure Sensor |
Input |
[Engine is running]
|
1.12 - 1.31 V |
||
|
[Engine is running]
|
1.22 - 1.42 V |
||||||
|
56 (BR) |
100 (B) |
Engine coolant temperature Sensor |
Input |
[Engine is running]
|
3.27 V |
||
|
[Engine is running]
|
2.33 V |
||||||
|
[Engine is running]
|
1.26 V |
||||||
|
70 (LG) |
97 (V) |
Refrigerant pressure Sensor |
Input |
[Engine is running]
|
1.0 - 4.0 V |
||
|
75 (LG) |
82 (SB) |
Exhaust camshaft position Sensor (bank 2) |
Input |
[Engine is running]
|
4.0 - 5.0 V |
||
|
[Engine is running]
|
4.0 - 5.0 V |
||||||
|
77 (LG) |
82 (SB) |
Intake camshaft position Sensor (bank 2) |
Input |
[Engine is running]
|
4.0 - 5.0 V |
||
|
[Engine is running]
|
4.0 - 5.0 V |
||||||
|
78 (W) |
204 (B) |
Intake camshaft position Sensor (bank 2) (Electric intake valve timing control signal) |
Output |
[Engine is running]
|
4.0 - 5.0 V |
||
|
[Engine is running]
|
4.0 - 5.0 V |
||||||
|
80 (Y) |
204 (B) |
Sensor power supply (Fuel rail pressure Sensor) |
-- |
[Ignition switch: ON] |
5 V |
||
|
82 (SB) |
-- |
Sensor ground [Intake camshaft position Sensor (bank 2), Exhaust camshaft position Sensor (bank 2)] |
-- |
-- |
-- |
||
|
83 (V) |
-- |
Sensor ground (Fuel rail pressure Sensor) |
-- |
-- |
-- |
||
|
84 (GR) |
-- |
Sensor ground (Knock Sensor) |
-- |
-- |
-- |
||
|
85 (V) |
204 (B) |
Sensor power supply [Intake camshaft position Sensor (bank 2), Exhaust camshaft position Sensor (bank 2)] |
-- |
[Ignition switch: ON] |
5 V |
||
|
86 (W) |
84 (GR) |
Knock Sensor (bank 2) |
Input |
[Ignition switch: ON] |
2.44 V |
||
|
[Engine is running]
|
2.50 V* 1 |
||||||
|
87 (B) |
-- |
ECM ground |
-- |
-- |
-- |
||
|
88 (B) |
-- |
ECM ground |
-- |
-- |
-- |
||
|
94 (BR) |
204 (B) |
Air fuel ratio (A/F) Sensor 1 Heater (bank 1) |
Output |
[Ignition switch: ON] |
13.5 V |
||
|
[Engine is running]
|
10.1 V |
||||||
|
95 (B) |
-- |
ECM ground |
-- |
-- |
-- |
||
|
96 (R) |
204 (B) |
Throttle control motor power supply |
Input |
[Ignition switch: ON] |
BATTERY VOLTAGE (11 - 14 V) |
||
|
97 (V) |
-- |
Sensor ground (Refrigerant pressure Sensor) |
-- |
-- |
-- |
||
|
98 (W) |
99 (B) |
Heated oxygen Sensor 2 (bank 2) |
Input |
[Engine is running] Revving engine from idle to 3, 000 RPM quickly after the following conditions are met
|
0 - 1.0 V |
||
|
99 (B) |
-- |
Sensor ground [Heated oxygen Sensor 2 (bank 1), Heated oxygen Sensor 2 (bank 2)] |
-- |
-- |
-- |
||
|
100 (B) |
-- |
Sensor ground (Engine coolant temperature Sensor, Engine oil temperature Sensor) |
-- |
-- |
-- |
||
|
101 (W) |
204 (B) |
Air fuel ratio (A/F) Sensor 1 (bank 1) |
Input |
[Engine is running]
|
2.7 V Output voltage varies with air fuel ratio. |
||
|
102 (B) |
204 (B) |
Air fuel ratio (A/F) Sensor 1 (bank 1) |
Input |
[Ignition switch: ON] |
2.2 V |
||
|
103 (B) |
-- |
Shield |
-- |
-- |
-- |
||
|
107 (W) |
204 (B) |
Air fuel ratio (A/F) Sensor 1 (bank 2) |
Input |
[Engine is running]
|
2.7 V Output voltage varies with air fuel ratio. |
||
|
110 (W) |
99 (B) |
Heated oxygen Sensor 2 (bank 1) |
Input |
[Engine is running]
|
0 - 1.0 V |
||
|
111 (B) |
204 (B) |
Air fuel ratio (A/F) Sensor 1 (bank 2) |
Input |
[Ignition switch: ON] |
2.2 V |
||
|
121 (W) |
204 (B) |
PNP signal |
Input |
[Ignition switch: ON] Selector lever: P or N |
BATTERY VOLTAGE (11 - 14 V) |
||
|
[Ignition switch: ON] Selector lever: Except above |
0 V |
||||||
|
123 (G) |
204 (B) |
Throttle control motor relay |
Output |
[Ignition switch: ON -> OFF] |
0 - 1.0 V Dn. Arrow BATTERY VOLTAGE (11 - 14 V) Dn. Arrow 0 V |
||
|
[Ignition switch: ON] |
0 - 1.0 V |
||||||
|
124 (W) |
204 (B) |
Fuel pump relay |
Output |
[Ignition switch: ON] For 1 second after turning ignition switch ON [Engine is running] |
0 - 1.5 V |
||
|
[Ignition switch: ON] More than 1 second after turning ignition switch ON |
BATTERY VOLTAGE (11 - 14 V) |
||||||
|
125 (V) |
204 (B) |
ECM relay (Self shut-off) |
Output |
[Engine is running] [Ignition switch: OFF] A few seconds after turning ignition switch OFF |
0 - 1.5 V |
||
|
[Ignition switch: OFF] More than a few seconds after turning ignition switch OFF |
BATTERY VOLTAGE (11 - 14 V) |
||||||
|
135 (BR) |
204 (B) |
VIAS control solenoid valve 2 |
Output |
[Engine is running]
|
BATTERY VOLTAGE (11 - 14 V) |
||
|
[Engine is running]
|
BATTERY VOLTAGE (11 - 14 V) Dn. Arrow 0 - 1.0 V Dn. Arrow BATTERY VOLTAGE (11 - 14 V) |
||||||
|
136 (BR) |
204 (B) |
VIAS control solenoid valve 1 |
Output |
[Engine is running]
|
BATTERY VOLTAGE (11 - 14 V) |
||
|
[Engine is running]
|
BATTERY VOLTAGE (11 - 14 V) Dn. Arrow 0 - 1.0 V Dn. Arrow BATTERY VOLTAGE (11 - 14 V) |
||||||
|
137 (BR) |
204 (B) |
Electronic controlled engine mount control solenoid valve |
Output |
[Engine is running]
|
0 - 1.0 V |
||
|
[Engine is running]
|
BATTERY VOLTAGE (11 - 14 V) |
||||||
|
142 (G) |
204 (B) |
Engine oil pressure control solenoid valve |
Output |
[Engine is running]
|
BATTERY VOLTAGE (11 - 14 V) |
||
|
[Engine is running]
|
0 V |
||||||
|
149 (W) |
150 (G) |
Throttle control motor (Open) |
Output |
[Ignition switch: ON]
|
2.5 V |
||
|
[Ignition switch: ON]
|
0.2 V |
||||||
|
150 (G) |
149 (W) |
Throttle control motor (Close) |
Output |
[Ignition switch: ON]
|
0.2 V |
||
|
[Ignition switch: ON]
|
0.3 V |
||||||
|
151 (Y) |
204 (B) |
Air fuel ratio (A/F) Sensor 1 Heater (bank 2) |
Output |
[Ignition switch: ON] |
13.5 V |
||
|
[Engine is running]
|
10.1 V |
||||||
|

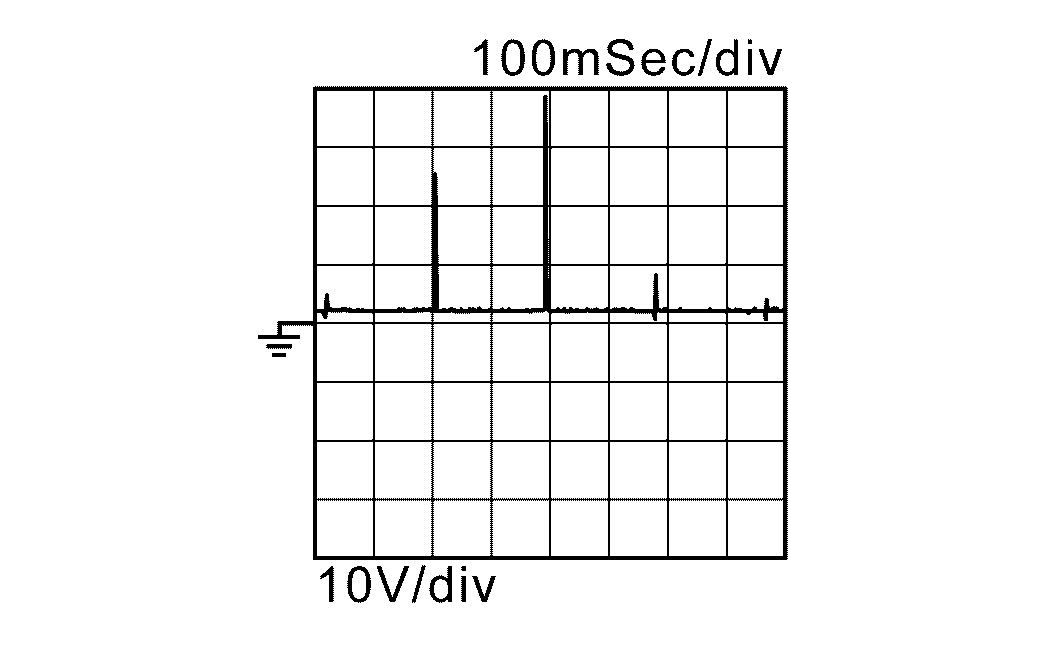

153 (LG) 154 (LG) 161 (LG) 162 (LG) 164 (LG) 168 (LG) |
204 (B) |

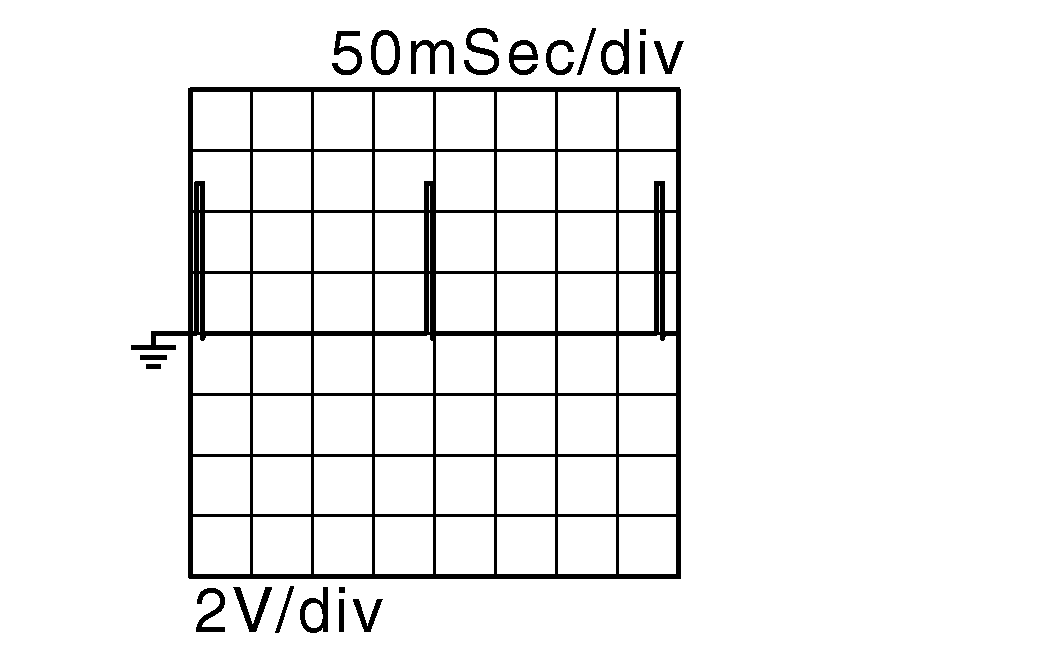

Ignition signal No. 3 Ignition signal No. 6 Ignition signal No. 1 Ignition signal No. 4 Ignition signal No. 2 Ignition signal No. 5 |
Output |
[Ignition switch: ON] |
0 V |
||
|
[Engine is running]
|
0.2 V |
||||||
|
[Engine is running]
|
0.4 V |
||||||
|
155 (BR) |
204 (B) |
EVAP Canister Purge Volume Control Solenoid Valve |
Output |
[Engine is running]
|
BATTERY VOLTAGE (11 - 14 V) |
||
|
[Engine is running]
|
12.2 V |
||||||
|
157 (BR) |
204 (B) |
Exhaust valve timing control solenoid valve (bank 1) |
[Ignition switch: ON] |
13.8 V |
|||
|
[Ignition switch: ON]
|
9.2 V |
||||||
|
158 (Y) |
204 (B) |
Exhaust valve timing control solenoid valve (bank 2) |
[Ignition switch: ON] |
13.8 V |
|||
|
[Ignition switch: ON]
|
9.2 V |
||||||
|
163 (SB) |
204 (B) |
Heated oxygen Sensor 2 heater (bank 2) |
Output |
[Engine is running] Engine speed: Below 3, 600 RPM after the following conditions are met
|
10 V |
||
|
[Ignition switch: ON] Engine stopped [Engine is running] Engine speed: Above 3, 600 RPM |
BATTERY VOLTAGE (11 - 14 V) |
||||||
|
166 (SB) |
204 (B) |
Heated oxygen Sensor 2 heater (bank 1) |
Output |
[Engine is running] Engine speed: Below 3, 600 RPM after the following conditions are met
|
10 V |
||
|
[Ignition switch: ON] Engine stopped [Engine is running] Engine speed: Above 3, 600 RPM |
BATTERY VOLTAGE (11 - 14 V) |
||||||
|
170 (GR) |
204 (B) |
Power supply for ECM (Back-up) |
Input |
[Ignition switch: ON] |
BATTERY VOLTAGE (11 - 14 V) |
||
|
173 (O) |
200 (G) |
EVAP control system pressure Sensor |
Input |
[Ignition switch: ON] |
3.5 - 4.5 V |
||
|
[Ignition switch: ON]
|
3.5 - 4.5 V |
||||||
|
175 (P) |
-- |
CAN-L |
Input/output |
-- |
-- |
||
|
176 (L) |
-- |
CAN-H |
Input/output |
-- |
-- |
||
|
177 (W) |
204 (B) |
Sensor power supply (EVAP control system pressure Sensor) |
-- |
[Ignition switch: ON] |
5 V |
||
|
180 (BR) |
200 (G) |
Fuel tank temperature Sensor |
Input |
[Ignition switch: ON]
|
3.43 V |
||
|
182 (R) |
204 (B) |
Fuel pump control module (FPCM) check |
Input |
[Ignition switch: ON] |
0 V |
||
|
[Engine is running]
|
12.9 V |
||||||
|
185 (SB) |
204 (B) |
Ignition switch |
Input |
[Ignition switch: OFF] |
0 V |
||
|
[Ignition switch: ON] |
BATTERY VOLTAGE (11 - 14 V) |
||||||
|
186 (G) |
187 (R) |
ICC Steering Switch (models with ICC system) |
Input |
[Ignition switch: ON] MAIN switch: Pressed |
0 V |
||
|
[Ignition switch: ON] DYNAMIC DRIVE ASSISTANCE switch: Pressed |
1.1 V |
||||||
|
[Ignition switch: ON] CANCEL switch: Pressed |
1.9 V |
||||||
|
[Ignition switch: ON] DISTANCE switch: Pressed |
2.6 V |
||||||
|
[Ignition switch: ON] COAST/SET switch: Pressed |
3.2 V |
||||||
|
[Ignition switch: ON] ACCEL/RES switch: Pressed |
3.7 V |
||||||
|
[Ignition switch: ON] ICC Steering Switch: OFF |
4.2 V |
||||||
|
ASCD Steering Switch (models without ICC system) |
Input |
[Ignition switch: ON] MAIN switch: Pressed |
0 V |
||||
|
[Ignition switch: ON] CANCEL switch: Pressed |
1 V |
||||||
|
[Ignition switch: ON] COAST/SET switch: Pressed |
2 V |
||||||
|
[Ignition switch: ON] ACCEL/RES switch: Pressed |
3 V |
||||||
|
[Ignition switch: ON] ASCD Steering Switch: OFF |
4 V |
||||||
|
187 (R) |
-- |
Sensor ground (ASCD/ICC Steering Switch) |
-- |
-- |
-- |
||
|
188 (GR) |
204 (B) |
Fuel pump control module (FPCM) |
Output |
[Ignition switch: ON] |
0 V |
||
|
[Engine is running]
|
0 V <--> 12.9 V |
||||||
|
[When cranking engine] Not cold state condition |
0 V <--> 10.7 V |
||||||
|
[Ignition switch: ON] For 1 second after turning ignition switch ON |
0 V <--> 12.9 V |
||||||
|
189 (L) |
-- |
Engine communication line-L |
Input/Output |
-- |
-- |
||
|
190 (B) |
-- |
Engine communication line-H |
Input/Output |
-- |
-- |
||
|
191 (R) |
204 (B) |
Stop lamp switch |
Input |
[Ignition switch: OFF] Brake pedal: Fully released |
0 V |
||
|
[Ignition switch: OFF] Brake pedal: Slightly depressed |
BATTERY VOLTAGE (11 - 14 V) |
||||||
|
192 (LG) |
204 (B) |
Brake pedal position switch |
Input |
[Ignition switch: ON] Brake pedal: Slightly depressed |
0 V |
||
|
[Ignition switch: ON] Brake pedal: Fully released |
BATTERY VOLTAGE (11 - 14 V) |
||||||
|
193 (Y) |
204 (B) |
EVAP canister vent control valve |
Output |
[Ignition switch: ON] |
12.0 V |
||
|
[Engine is running]
|
BATTERY VOLTAGE (11 - 14 V) |
||||||
|
194 (P) |
204 (B) |
Sensor power supply (Accelerator pedal position Sensor 2) |
-- |
[Ignition switch: ON] |
5 V |
||
|
195 (G) |
196 (O) |
Accelerator pedal position Sensor 2 |
Input |
[Ignition switch: ON]
|
0.22 - 0.50 V |
||
|
[Ignition switch: ON]
|
2.1 - 2.5 V |
||||||
|
196 (O) |
-- |
Sensor ground (Accelerator pedal position Sensor 2) |
-- |
-- |
-- |
||
|
197 (LG) |
204 (B) |
Power supply for ECM |
Input |
[Ignition switch: ON] |
BATTERY VOLTAGE (11 - 14 V) |
||
|
198 (W) |
204 (B) |
Sensor power supply (Accelerator pedal position Sensor 1) |
-- |
[Ignition switch: ON] |
5 V |
||
|
199 (B) |
-- |
ECM ground |
-- |
-- |
-- |
||
|
200 (G) |
-- |
Sensor ground (EVAP control system pressure Sensor, Fuel tank temperature Sensor) |
-- |
-- |
-- |
||
|
201 (B) |
-- |
ECM ground |
-- |
-- |
-- |
||
|
202 (Y) |
203 (R) |
Accelerator pedal position Sensor 1 |
Input |
[Ignition switch: ON]
|
0.45 - 1.00 V |
||
|
[Ignition switch: ON]
|
4.4 - 4.8 V |
||||||
|
203 (R) |
-- |
Sensor ground (Accelerator pedal position Sensor 1) |
-- |
-- |
-- |
||
|
204 (B) |
-- |
ECM ground |
-- |
-- |
-- |
||
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
*1: This may vary depending on internal resistance of the tester.
*2: Before measuring the terminal voltage, confirm that the battery is fully charged.
Use the Manual With the Right Hardware
Pair factory procedures with proven DIY tools so the instructions are easier to execute.
Disclosure: Verified tool recommendations may earn an affiliate commission at no cost to you.
When to See a Mechanic
Stop DIY work and contact a certified mechanic immediately if any of the following apply:
- β’ You smell fuel, burning insulation, or see smoke.
- β’ Brakes feel soft, pull hard to one side, or make grinding noises.
- β’ The engine overheats, stalls repeatedly, or misfires under load.
- β’ You are missing required tools, torque specs, or safe lifting equipment.
- β’ You are not confident in the next step or safety outcome.
Rather have a pro handle this?
A certified mobile mechanic comes to your home or office. They bring the tools, you stay comfortable. No tow truck, no waiting room, no surprises.
No obligation. See pricing before you book.
