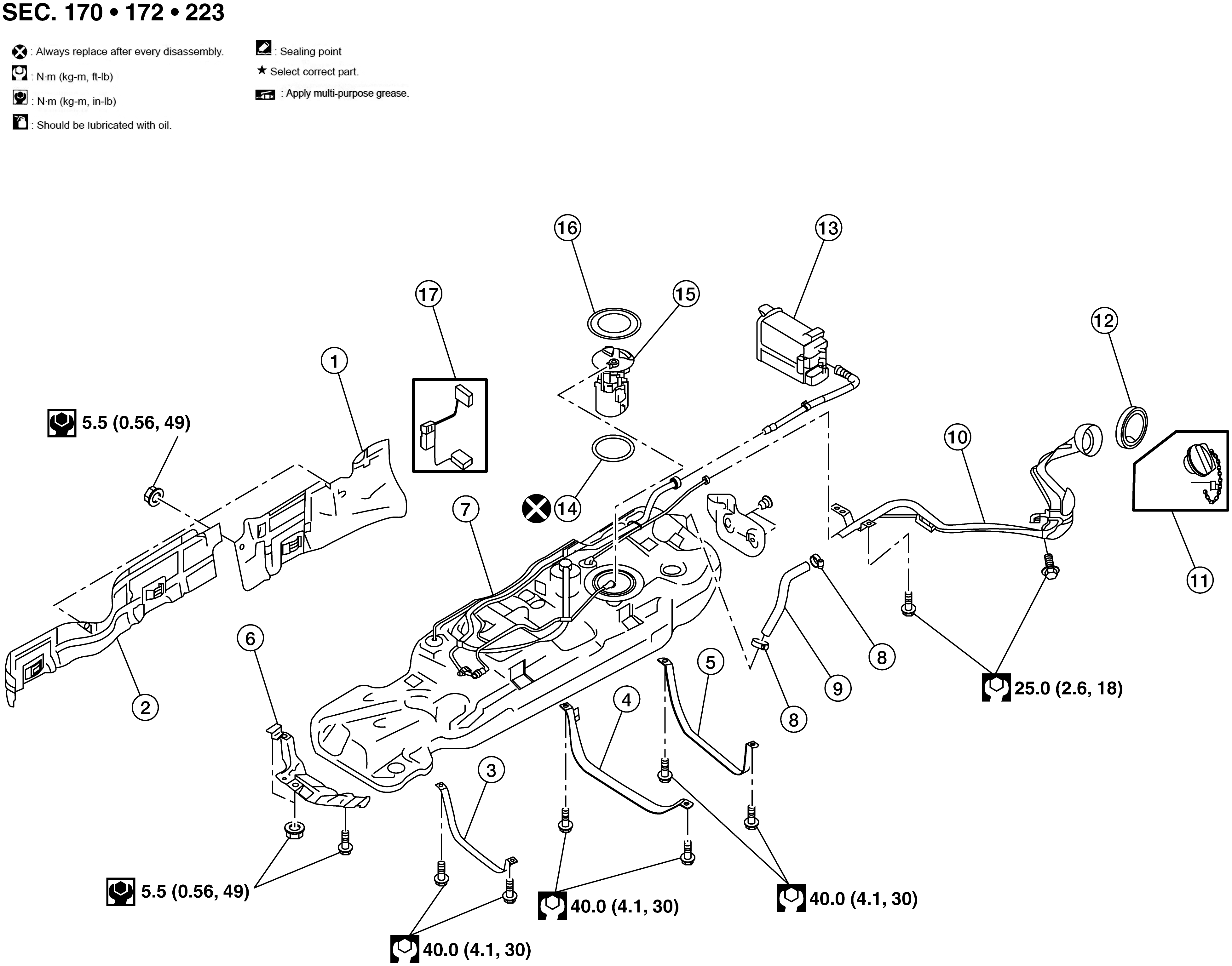

Exploded View
|
1. |
Fuel tank protector |
2. |
Fuel tank protector |
3. |
Fuel tank mounting strap (1) |
|
4. |
Fuel tank mounting strap (2) |
5. |
Fuel tank mounting strap (3) |
6. |
Fuel tank protector |
|
7. |
Fuel tank |
8. |
Clamp |
9. |
Fuel filler hose |
|
10. |
Fuel filler tube |
11. |
Fuel filler cap and clip |
12. |
Filler base grommet |
|
13. |
EVAP canister |
14. |
O-ring |
15. |
Fuel level sensor, fuel filer and fuel pump assembly |
|
16. |
Lock ring |
17 |
Fuel lever sensor |
|
Front |
