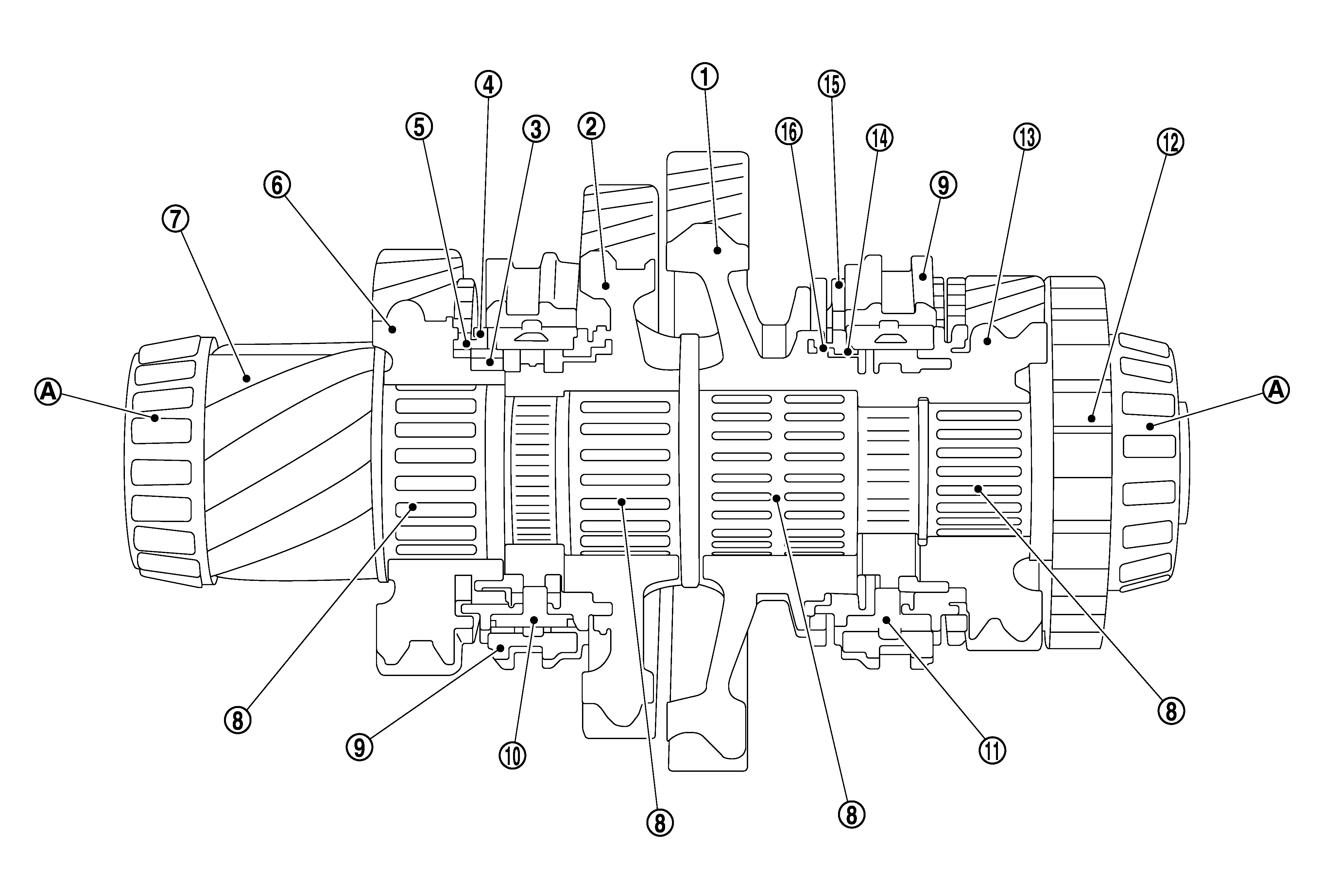

Sectional View: Synchronization
|
|
Tapered roller bearing |
||||
|
|
1st idler gear |
|
2nd idler gear |
|
Friction ring (4th gear) |
|
|
Synchronizer ring (4th gear) |
|
Cone ring (4th gear) |
|
4th idler gear |
|
|
Output shaft fixed gear 1 |
|
Needle roller bearing |
|
Sliding sleeve |
|
|
Synchronizer body with thrust piece (2nd gear/4th gear) |
|
Synchronizer body with thrust piece (1st gear/5th gear) |
|
Park pawl gear |
|
|
5th idler gear |
|
Friction ring with friction lining (1st gear) |
|
Synchronizer ring (1st gear) |
|
|
Cone ring (1st gear) |
