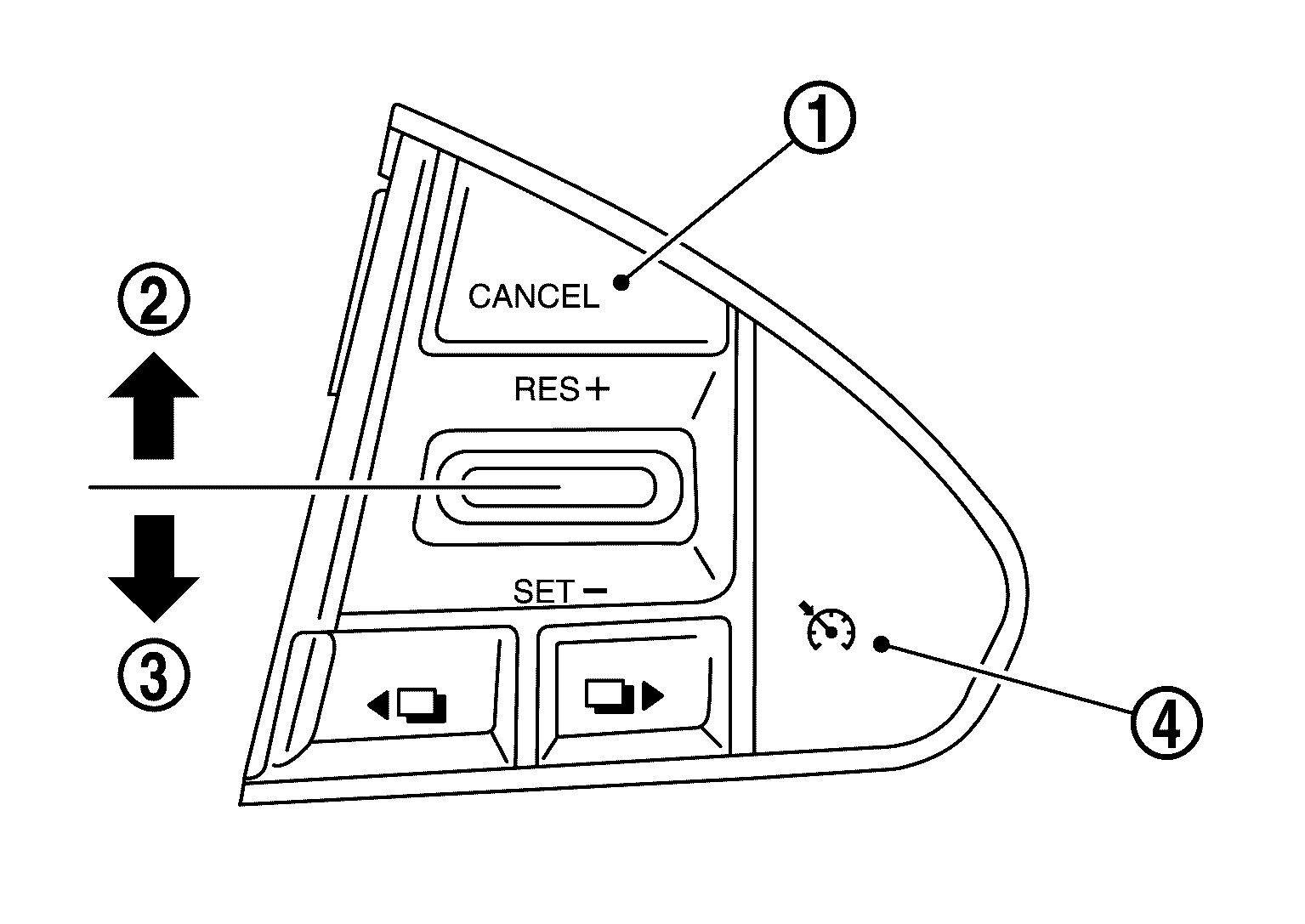

Switch Name and Function
Functions of each switch are listed in the following table.
|
No. |
Name |
Function |
|
|
CANCEL switch |
When the switch is pressed, the ASCD control is cancelled. |
|
|
RESUME/ACCEL switch (RES/+) |
|
|
|
SET/COAST switch (SET/-) |
|
|
|
ASCD MAIN switch |
Turns the ASCD ON/OFF. |
*: To reset vehicle speed, the vehicle condition must be as follows:
- Brake pedal is released.
- Selector lever is in a position other than P, R, and N.
- Vehicle speed is greater than 40 km/h (25 MPH) and 144 km/h (89 MPH).
