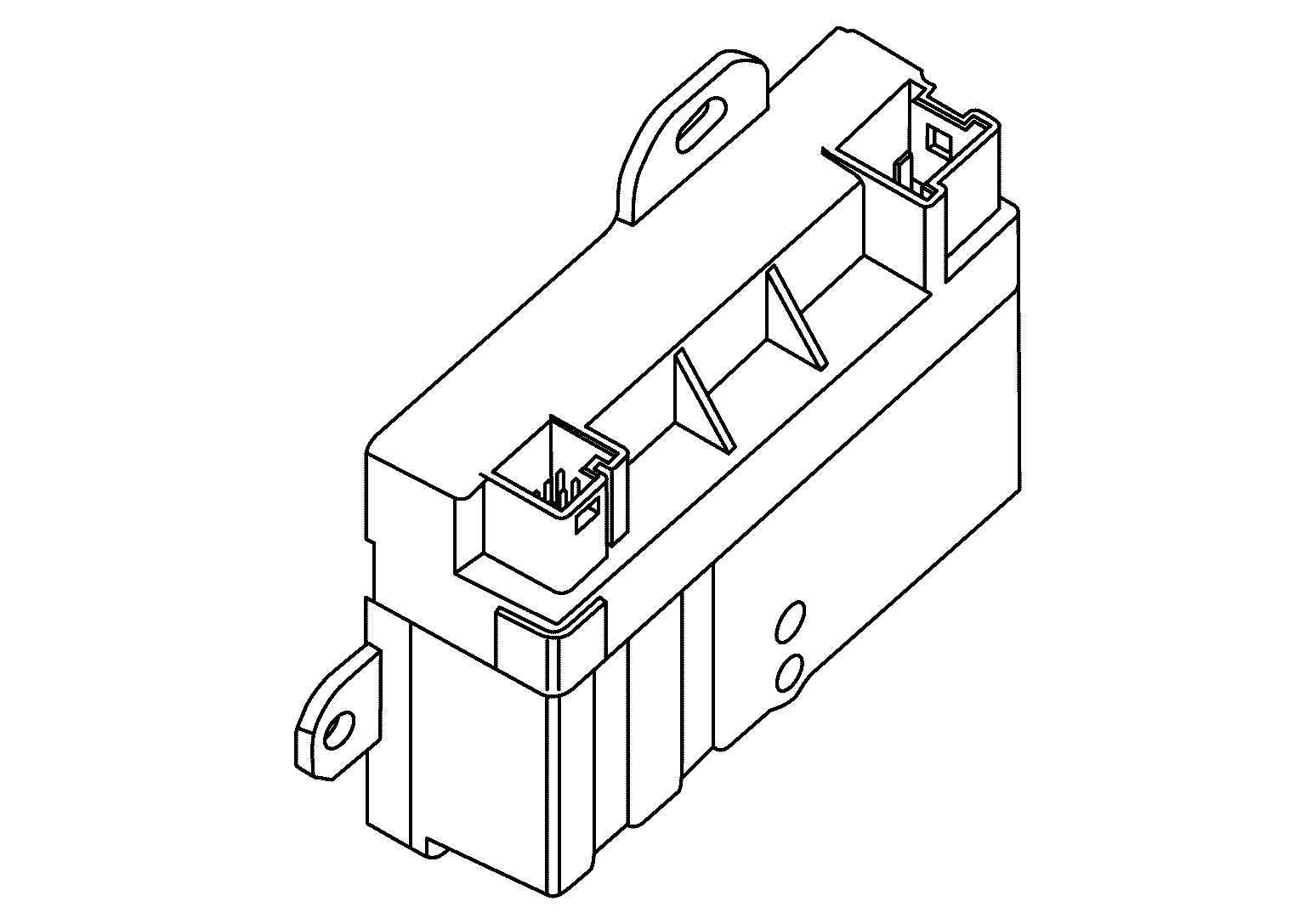

FPCM (Fuel Pump Control Module)
FPCM (Fuel Pump Control Module) controls fuel pump discharge rate according to the actual fuel requirements of the engine and, as a result, the idling power of the electric fuel pump is significantly reduced.
This control unit consists of a control and power electronics unit. FPCM is connected to the fuel pump, the fuel pressure sensor, and drivetrain CAN communication line.
FPCM regulates the fuel pump as required and transmits information on the current fuel pressure to ECM.
The fuel pump is switched ON when a fuel pump ON signal is received by the FPCM. The signal is transmitted by ECM as a CAN signal via the drivetrain CAN communication line and as a ground signal.
FPCM additionally receives the fuel requirements signal from ECM via drivetrain CAN communication. FPCM registers the current fuel pressure via a voltage signal from the fuel pressure sensor and transmits this information via the drivetrain CAN to ECM.
FPCM evaluates the current fuel pressure, compares it to the specified fuel pressure, and actuates the fuel pump with a PWM signal so that the actual value corresponds to the specified value.
