2018 Infiniti QX30 BaseFACTORY OEM SERVICE PROCEDURE
Work Procedure

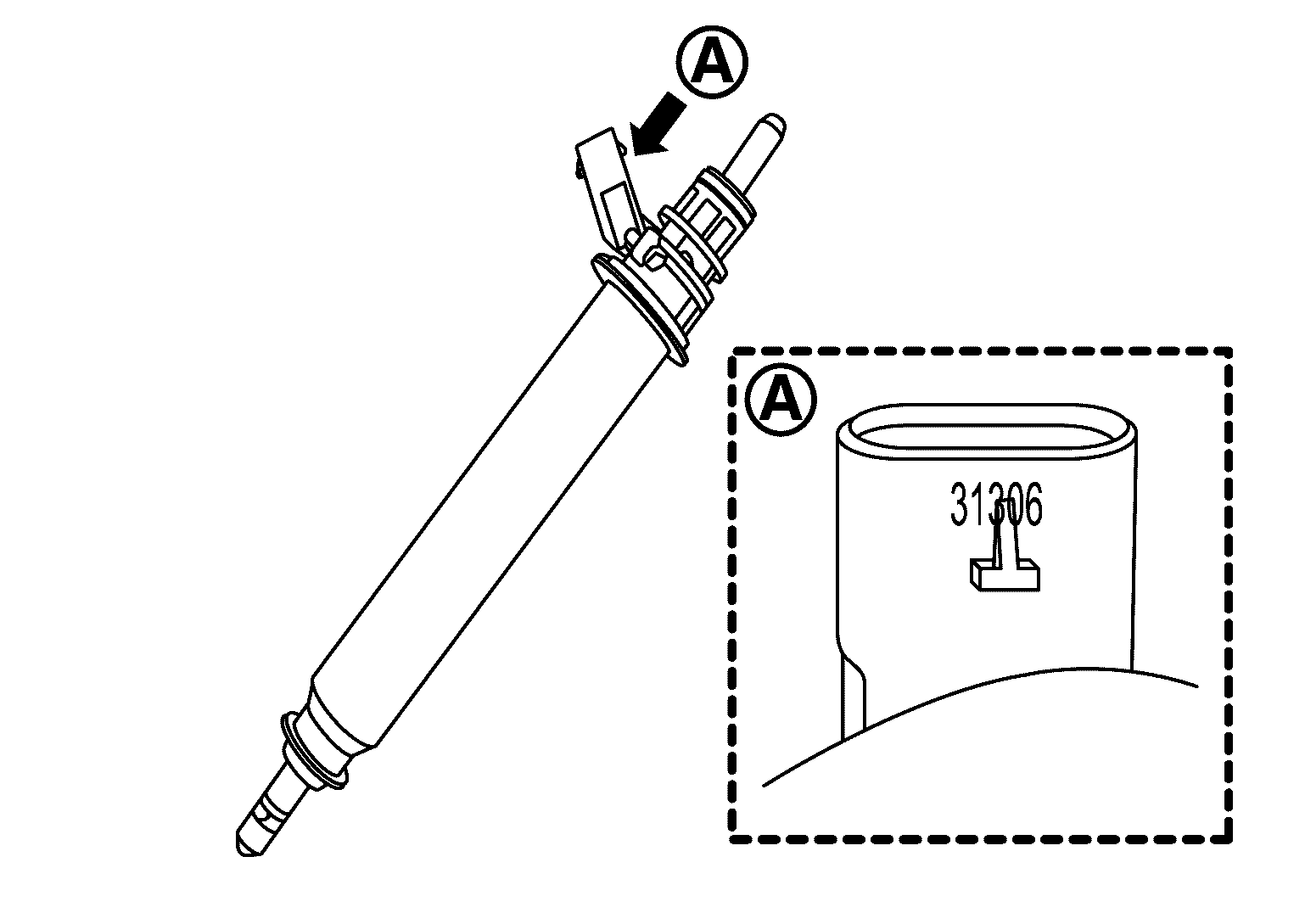

- START NOTE: Before performing this procedure, record injector characteristics code printed on a fuel injector.
- Turn ignition switch ON and engine stopped.
- On the CONSULT screen, select "ENGINE">>"WORK SUPPORT">>"INJECTOR INJECTION QUANTITY ADJUSTMENT".
- Touch "START".NOTE: When touching "START", CONSULT reads injector adjustment values stored in ECM.
- Select the number of the cylinder which needs Injector Injection Quantity Adjustment.
- Input injector adjustment value
.
CAUTION: Input four digits from the left with CONSULT, although the stamped number is five digits.
