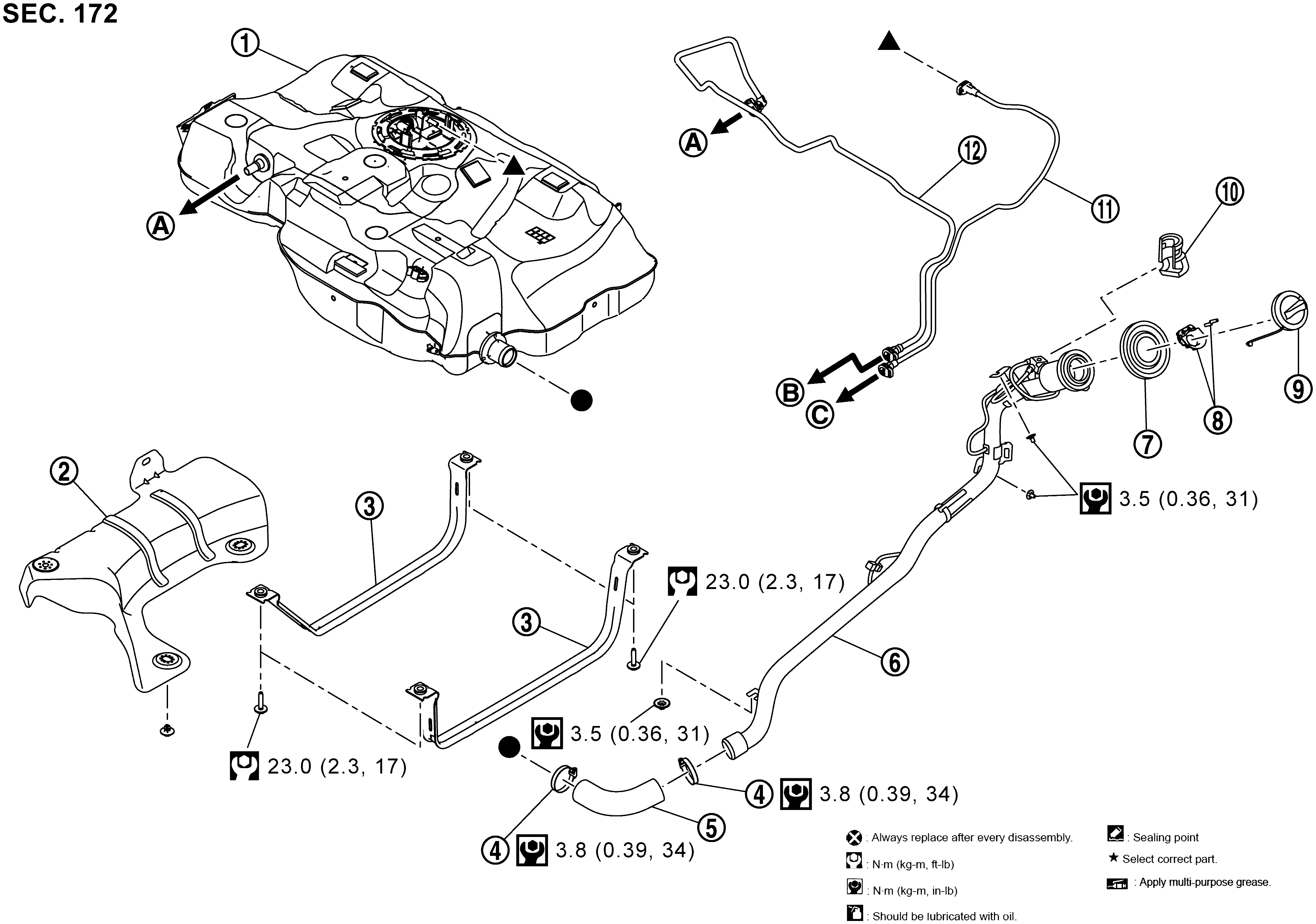

Fig 1: Fuel Tank Replacement Components With Torque Specifications (2WD Models For Mexico)

Courtesy of NISSAN NORTH AMERICA, INC.

	Fuel tank	Fuel tank insulator	Fuel tank mounting band
	Clamp	Fuel filler hose	Fuel filler tube
	Grommet	Guide shutter assembly	Fuel filler cap
	Fuel tube	EVAP tube
	To EVAP canister	To EVAP purge control valve	To high pressure fuel pump
	: N.m (kg-m, ft-lb)
	: N.m (kg-m, in-lb)
, : Indicates that the part is connected at points with same symbol in actual vehicle.

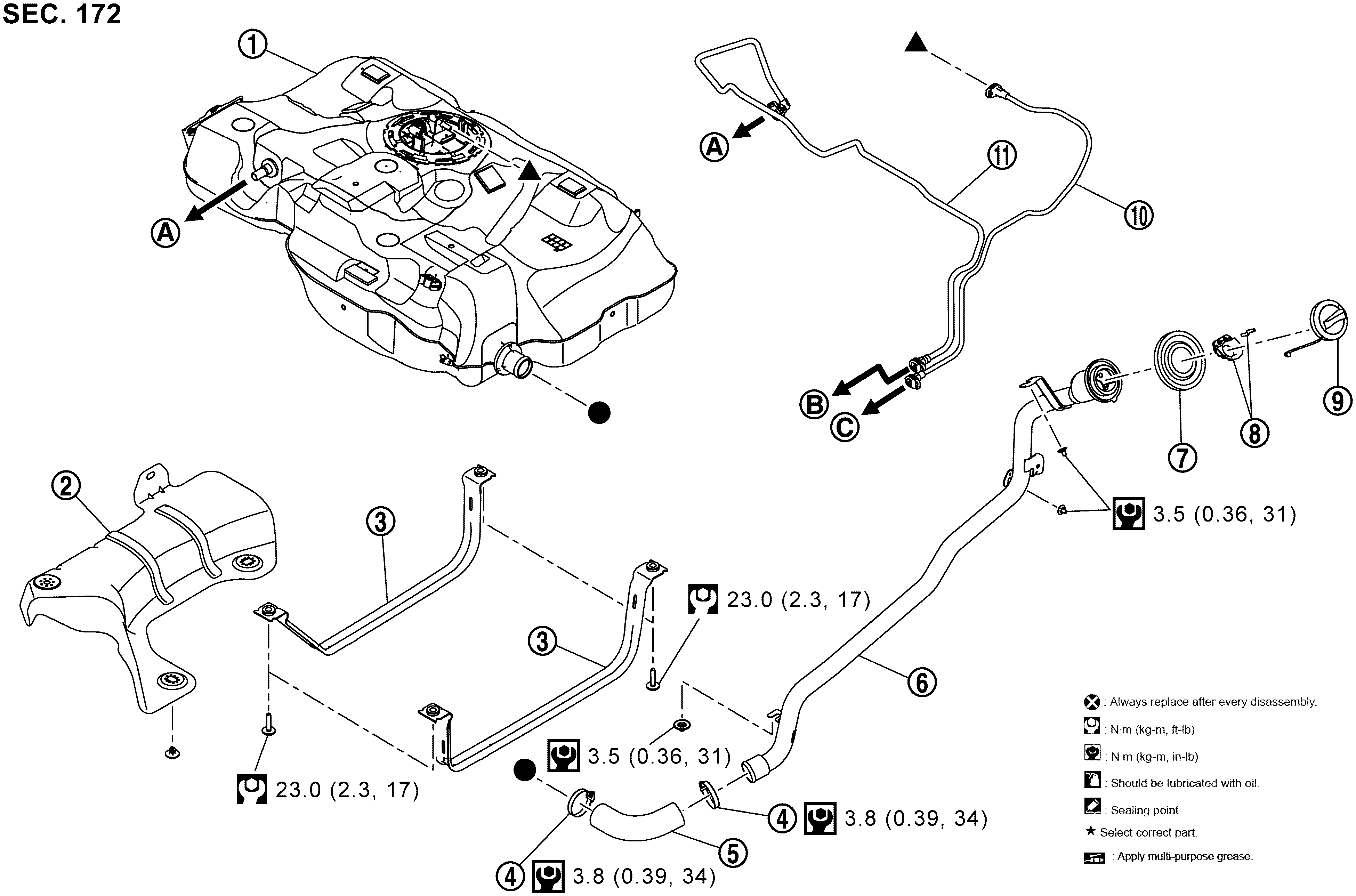

Fig 2: Fuel Tank Replacement Components With Torque Specifications (2WD Models Except For Mexico)

Courtesy of NISSAN NORTH AMERICA, INC.

	Fuel tank	Fuel tank insulator	Fuel tank mounting band
	Clamp	Fuel filler hose	Fuel filler tube
	Grommet	Guide shutter assembly	Fuel filler cap
	Vent tube bracket	Fuel tube	EVAP tube
	To EVAP canister	To EVAP purge control valve	To high pressure fuel pump
	: N.m (kg-m, ft-lb)
	: N.m (kg-m, in-lb)
, : Indicates that the part is connected at points with same symbol in actual vehicle.

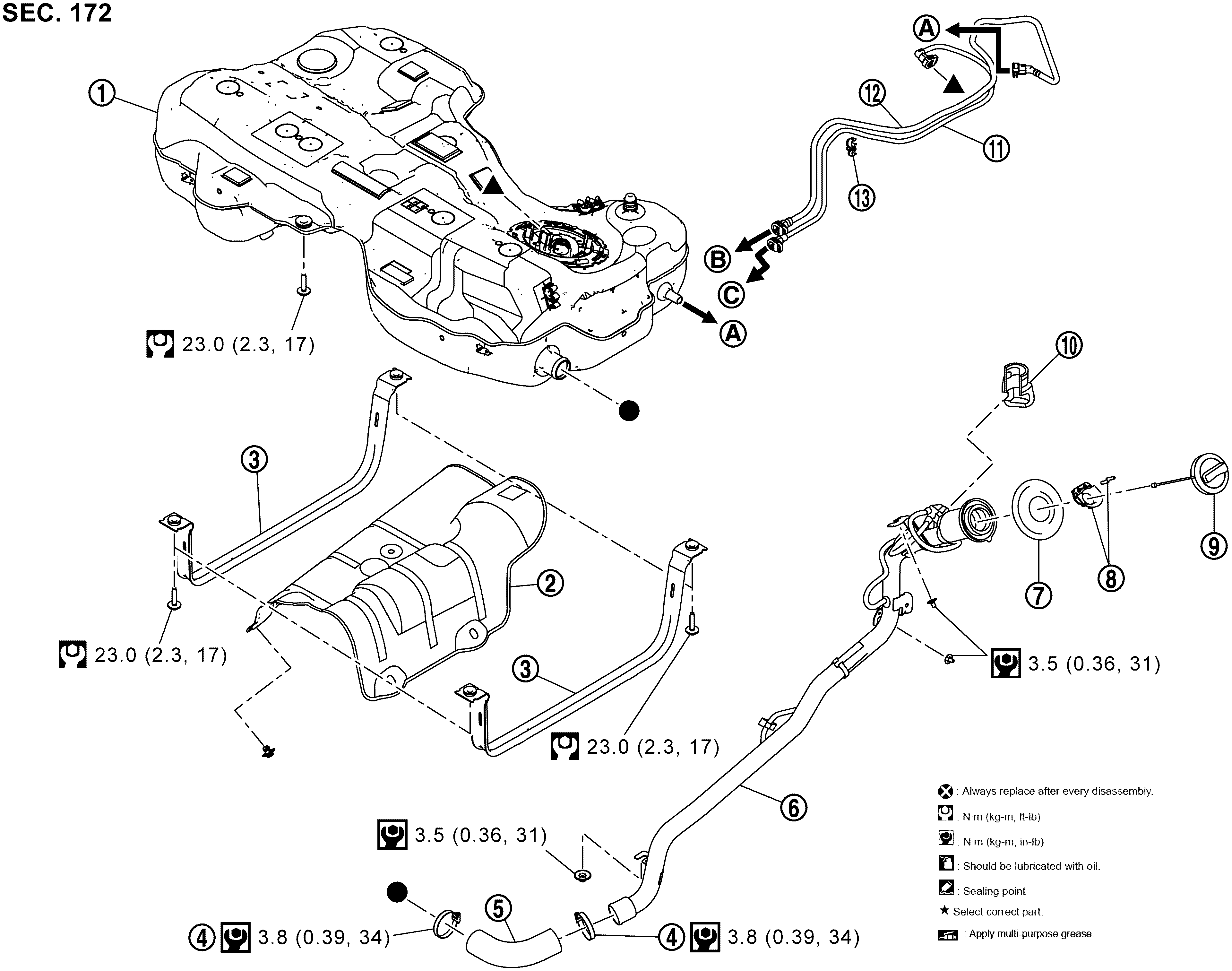

Fig 3: Fuel Tank Replacement Components With Torque Specifications (AWD Models)

Courtesy of NISSAN NORTH AMERICA, INC.

	Fuel tank	Fuel tank insulator	Fuel tank mounting band
	Clamp	Fuel filler hose	Fuel filler tube
	Grommet	Guide shutter assembly	Fuel filler cap
	Vent tube bracket	Fuel tube	EVAP tube
	Clamp
	To EVAP canister	To EVAP purge control valve	To high pressure fuel pump
	: N.m (kg-m, ft-lb)
	: N.m (kg-m, in-lb)
, : Indicates that the part is connected at points with same symbol in actual vehicle.
