2018 Infiniti QX30 BaseFACTORY OEM SERVICE PROCEDURE

Exploded View

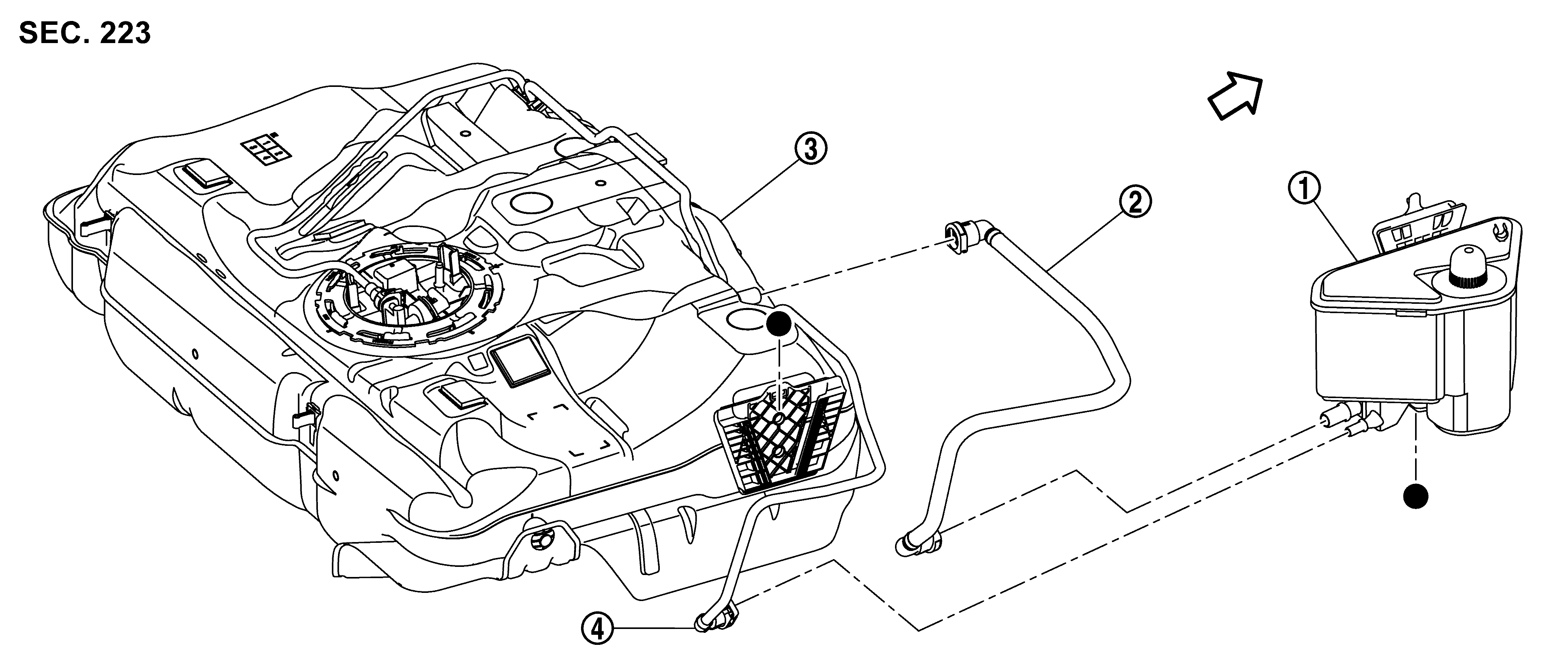

Fig 1: EVAP Canister Replacement Components With Torque Specifications (2WD Models For Mexico)

Courtesy of NISSAN NORTH AMERICA, INC.

	EVAP canister	EVAP tube	Fuel tank
	EVAP tube
	: Vehicle front
: Indicates that the part is connected at points with same symbol in actual vehicle.

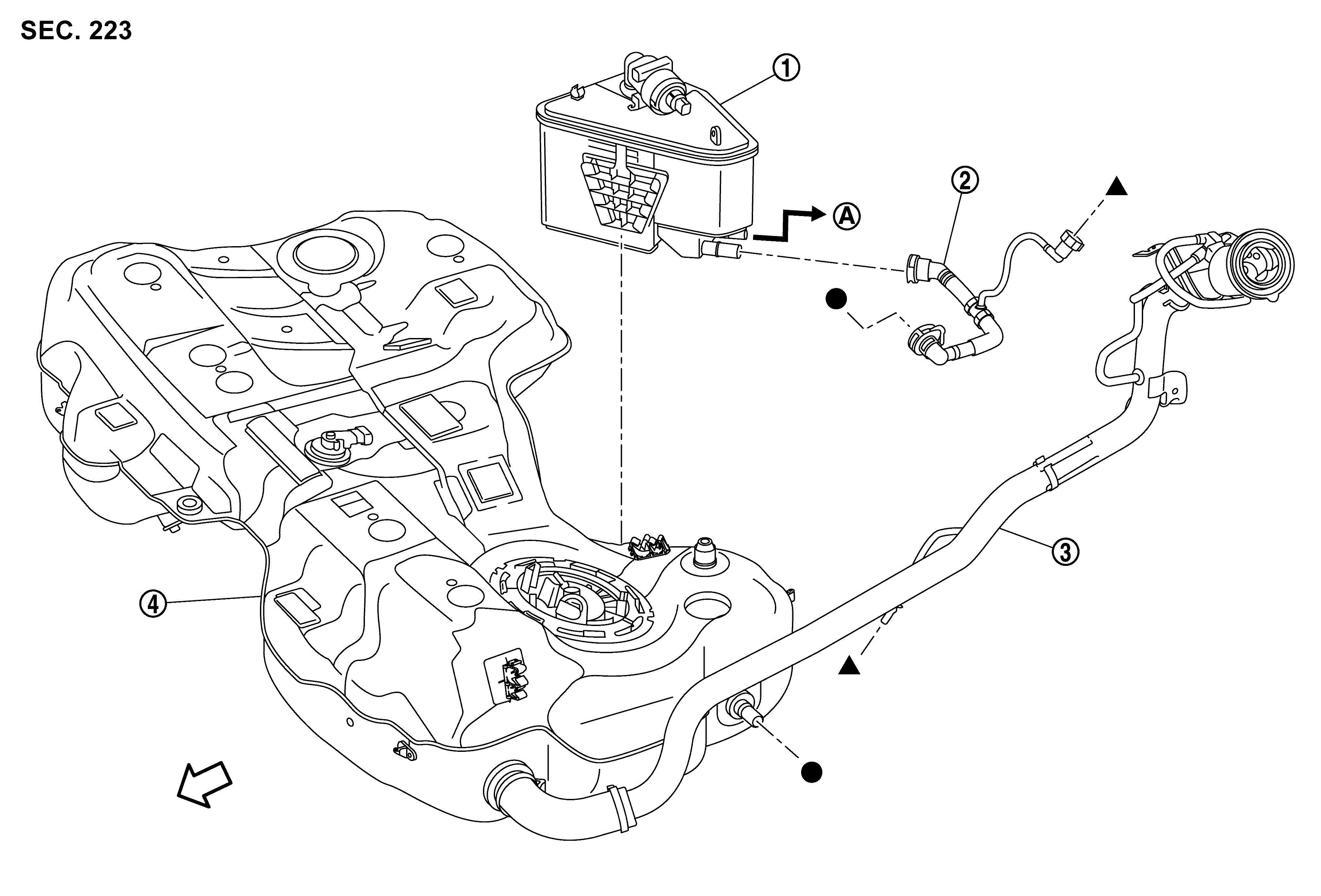

Fig 2: EVAP Canister Replacement Components With Torque Specifications (2WD Models Except For Mexico)

Courtesy of NISSAN NORTH AMERICA, INC.

	EVAP canister	EVAP tube	Fuel tank
	Fuel filler tube	EVAP tube
	: Vehicle front
: Indicates that the part is connected at points with same symbol in actual vehicle.

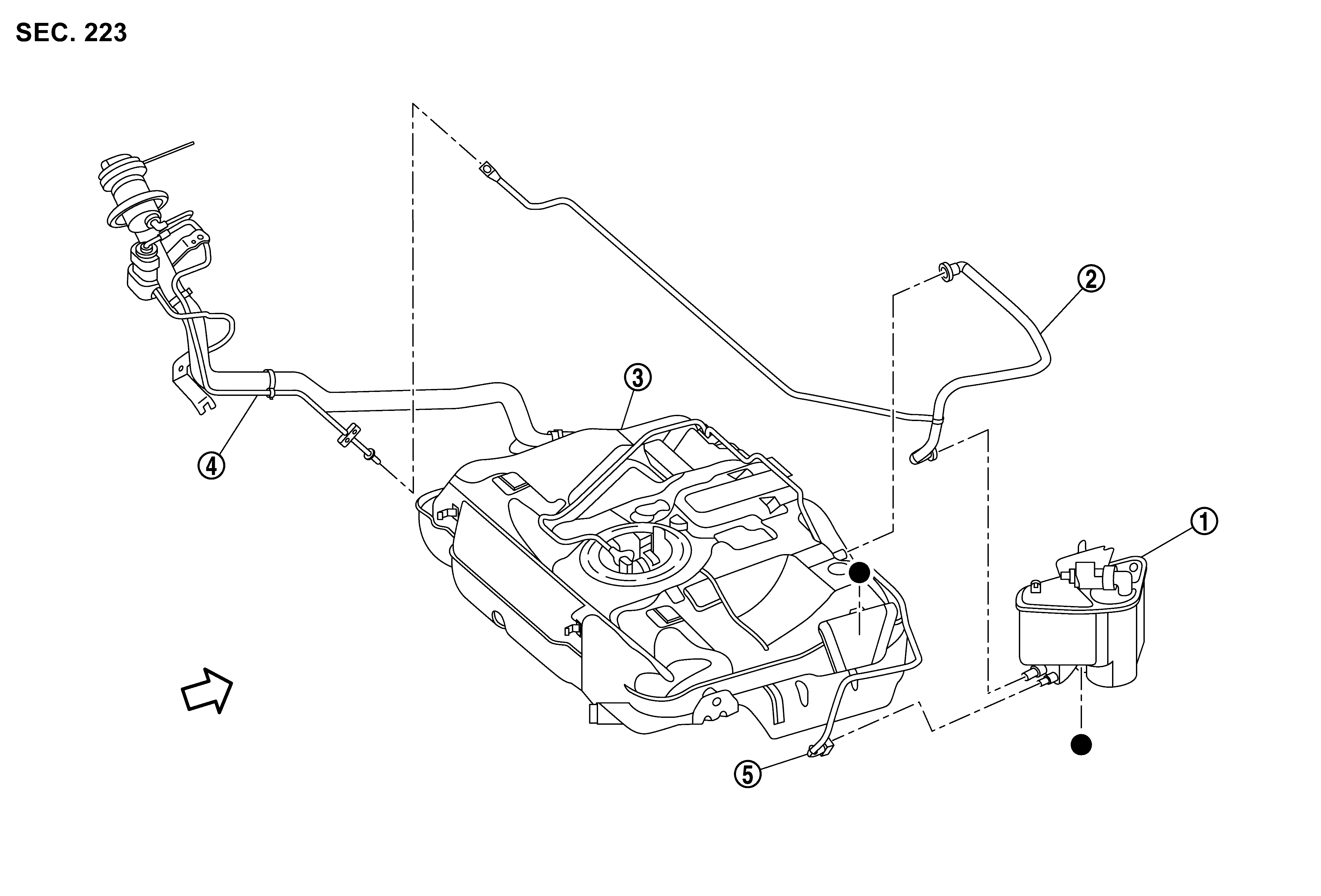

Fig 3: EVAP Canister Replacement Components With Torque Specifications (AWD Models)

Courtesy of NISSAN NORTH AMERICA, INC.

	EVAP canister	EVAP tube	Fuel filler tube
	Fuel tank
	To EVAP purge control valve
	: Vehicle front
, : Indicates that the part is connected at points with same symbol in actual vehicle.
