2018 Infiniti QX30 BaseFACTORY OEM SERVICE PROCEDURE
Removal and Installation: Removal

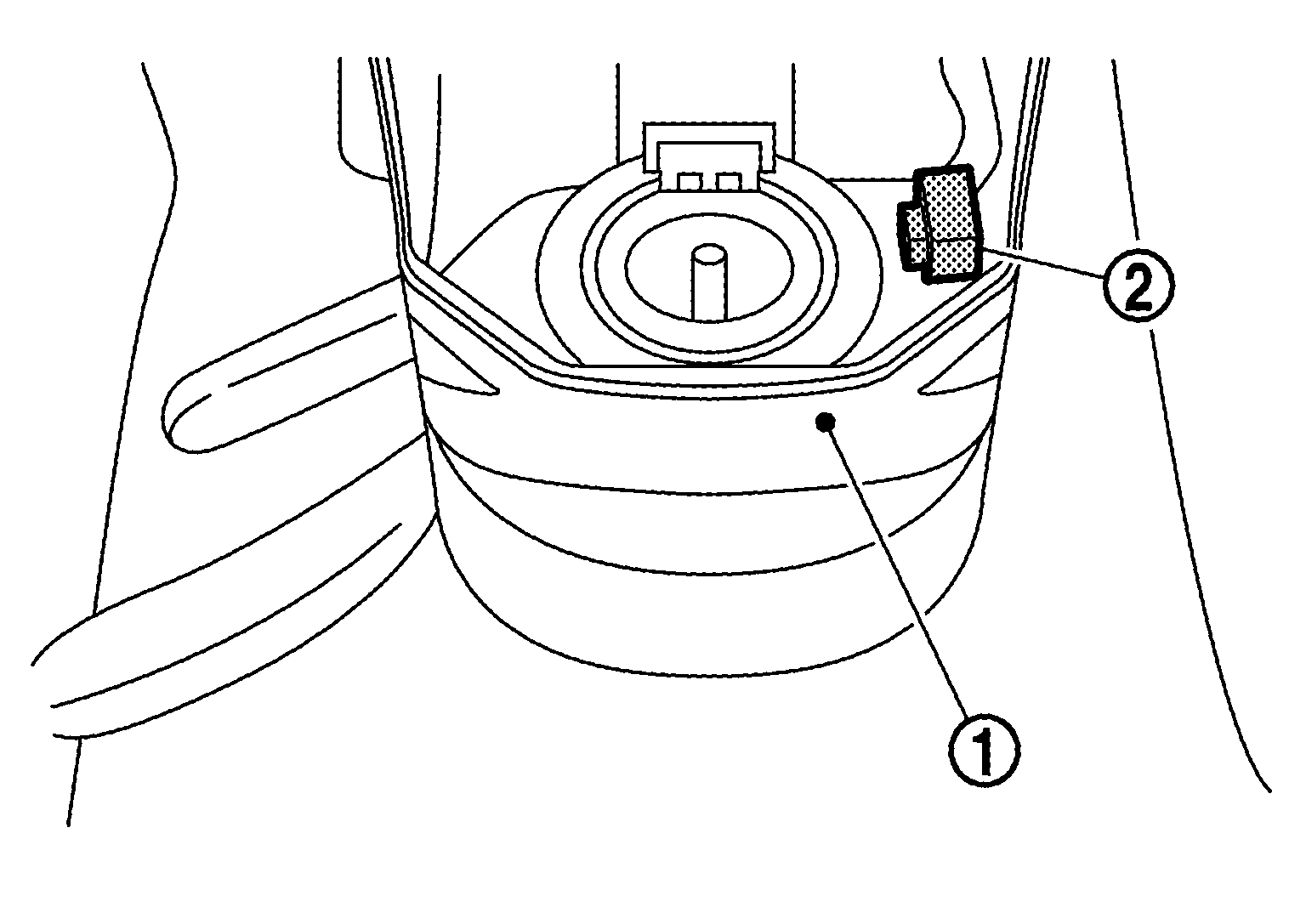

- Remove steering wheel. Refer to Removal and Installation .
- Remove steering column cover. Refer to Removal and Installation .

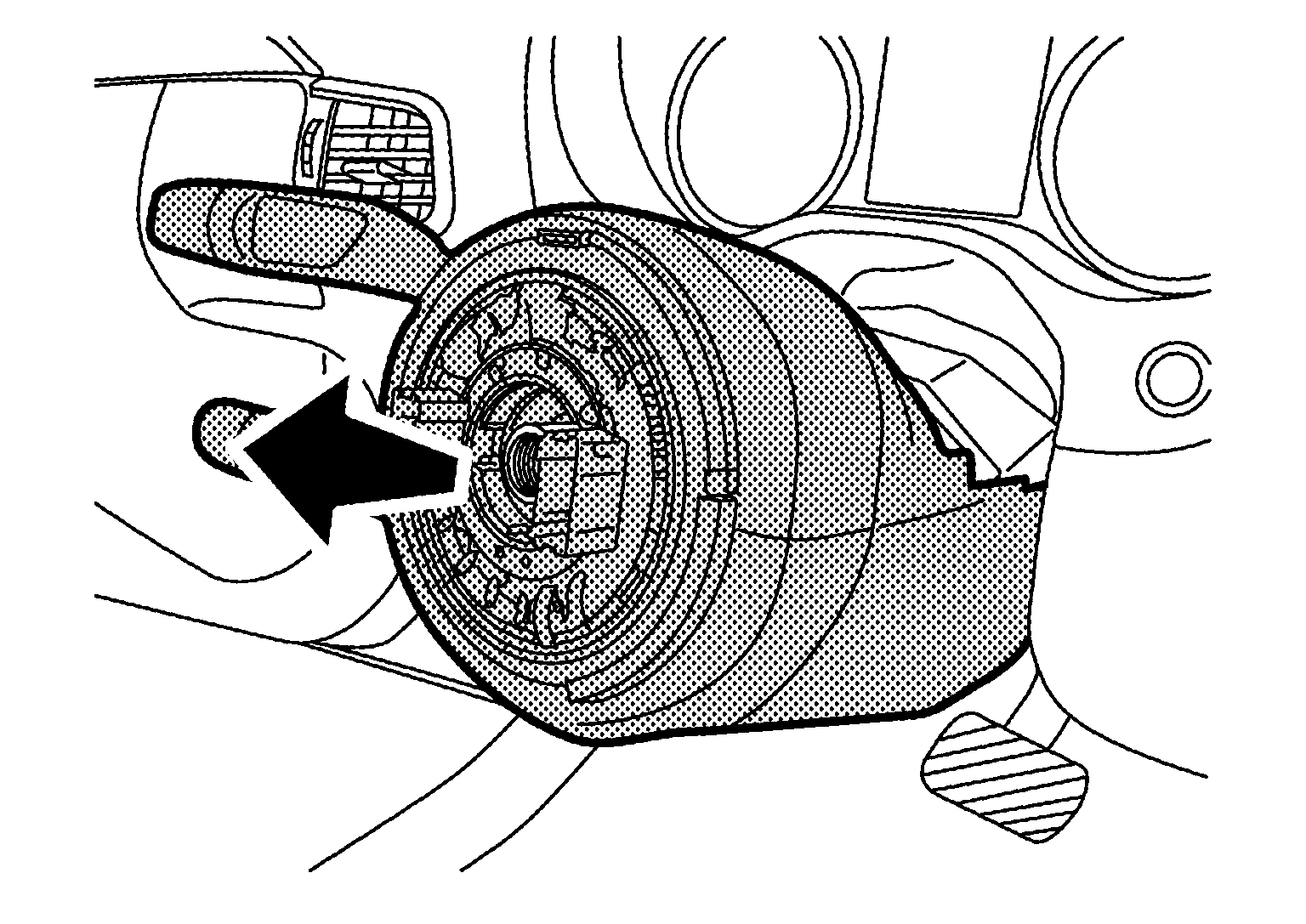

- Pull out steering column control module.
- Disconnect harness connector
from steering column control module
.
- Remove steering column control module.
