WARNING:

Since dust covering the front and rear brakes has an affect on human body, the dust must be removed with a dust collector. Never splatter the dust with an air blow gun.
Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary.

Brake fluid use refer to Fluids and Lubricants (FOR NORTH AMERICA).
Never reuse drained brake fluid.
When performing maintenance and repair work on the brake system, it must be ensured that no mineral oil, lubricating grease or similar substances enter the brake system.
New brake fluid must be used as a flushing and cleaning agent for the cylinders, the lines and the reservoir tank of the hydraulic braking system.
Never spill or splash brake fluid on painted surfaces. Brake fluid may seriously damage paint. Wipe it off immediately and wash with water if it gets on a painted surface. For brake component parts, never wash them with water.
Always confirm the specified tightening torque when installing the brake pipes.
After pressing the brake pedal more deeply or harder than normal driving, such as air bleeding, check each item of brake pedal.
Always clean with new brake fluid when cleaning the master cylinder, brake caliper and other components.
Never use mineral oils such as gasoline or light oil to clean. They may damage rubber parts and cause improper operation.
Always loosen the brake tube flare nut with a flare nut wrench.

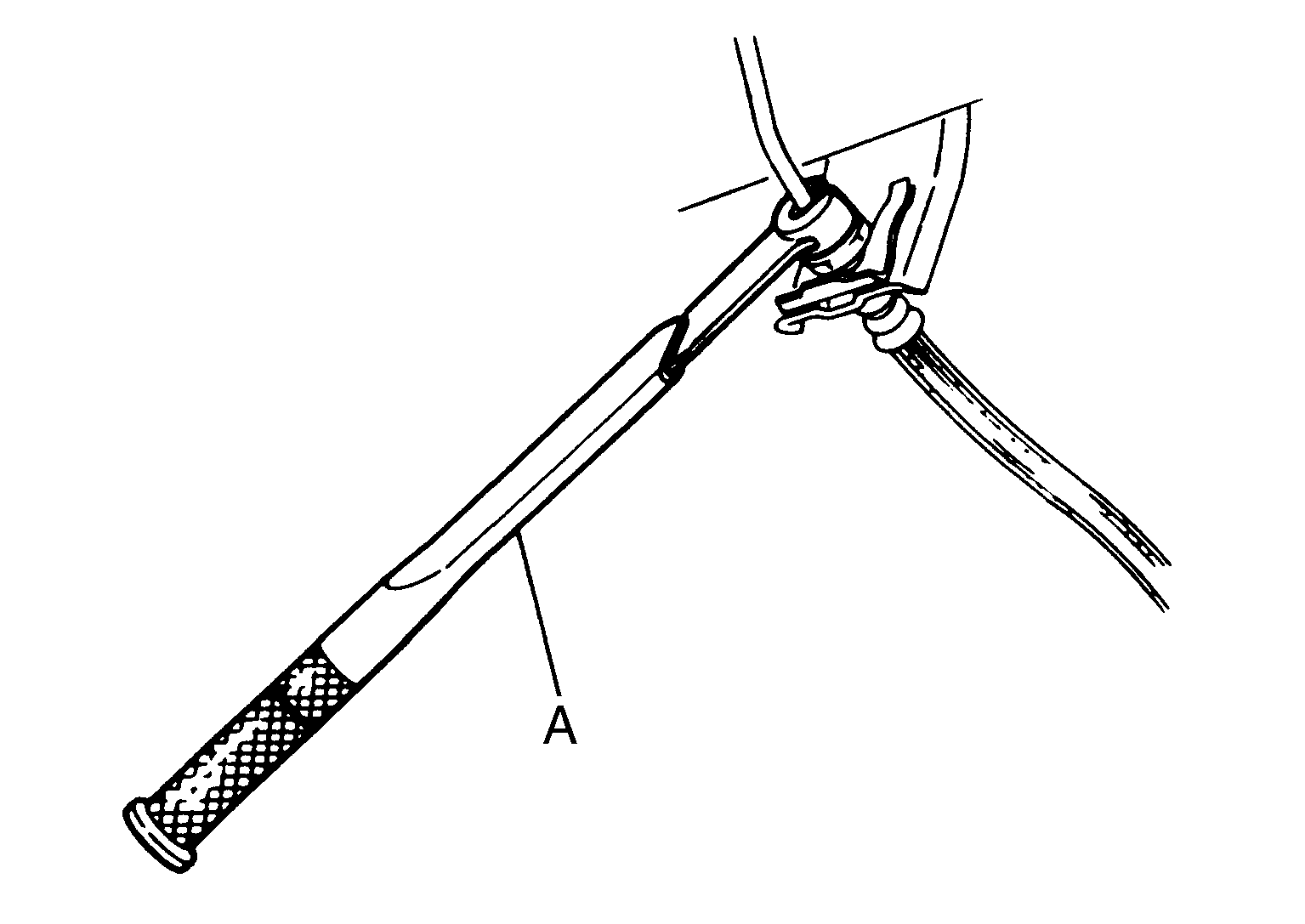

Tighten the brake tube flare nut to the specified torque with a flare nut torque wrench (A).

Courtesy of NISSAN NORTH AMERICA, INC.
Turn the ignition switch OFF and disconnect the electronic stability program control unit harness connector or the battery negative terminal before performing the work.
Check that no brake fluid leakage is present after replacing the parts.
