2018 Infiniti QX30 BaseFACTORY OEM SERVICE PROCEDURE

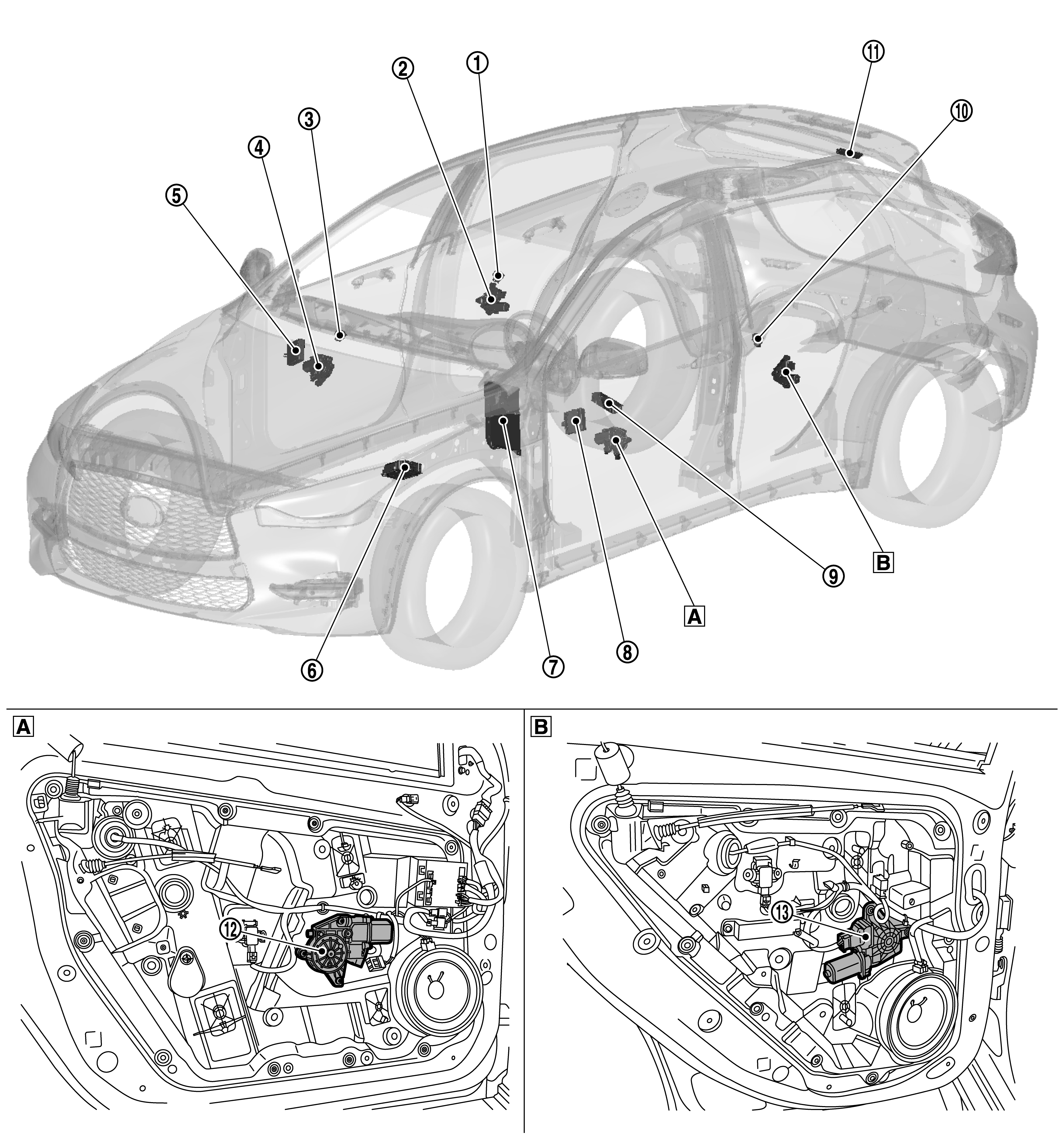

Component Parts: ComponentPartsLocation

GNSJMKIB6621Z-621Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

View with front door finisher (driver side) removed

SYMBOL

View with rear door finisher LH removed

No.

Component parts

Function

SYMBOL

Rear power window switch RH

Refer to Rear Power Window Switch .

SYMBOL

Rear power window motor RH

Refer to Rear Power Window Motor .

SYMBOL

Front power window switch (passenger side)

Refer to Front Power Window Switch (Passenger side) .

SYMBOL

Front power window motor (passenger side)

Refer to Front Power Window Motor .

SYMBOL

Right front door control unit
  • Supplies power supply to front power window switch (passenger side) and front power window motor (passenger side).
  • Refer to Component Parts Location for detailed installation location.

SYMBOL

Air bag diagnosis sensor unit
  • Air bag diagnosis sensor unit transmits car crash information signal to left front door control unit, right front door control unit and BCM via CAN communication.
  • Refer to Component Parts Location for detailed installation location.

SYMBOL

BCM
  • Supplies power supply to rear power window switch and rear power window motor.
  • Refer to Component Parts Location for detailed installation location.

SYMBOL

Left front door control unit
  • Supplies power supply to power window main switch and front power window motor (driver side).
  • Refer to Component Parts Location for detailed installation location.

SYMBOL

Power window main switch

Refer to Power Window Main Switch .

SYMBOL

Rear power window switch LH

Refer to Rear Power Window Switch .

SYMBOL

Remote keyless entry receiver
  • Remote keyless entry receiver transmits remote keyless entry receiver communication signal to Intelligent Key unit.
  • Refer to Component Parts Location for detailed installation location.

SYMBOL

Front power window motor (driver side)

Refer to Front Power Window Motor .

SYMBOL

Rear power window motor LH

Refer to Rear Power Window Motor .
