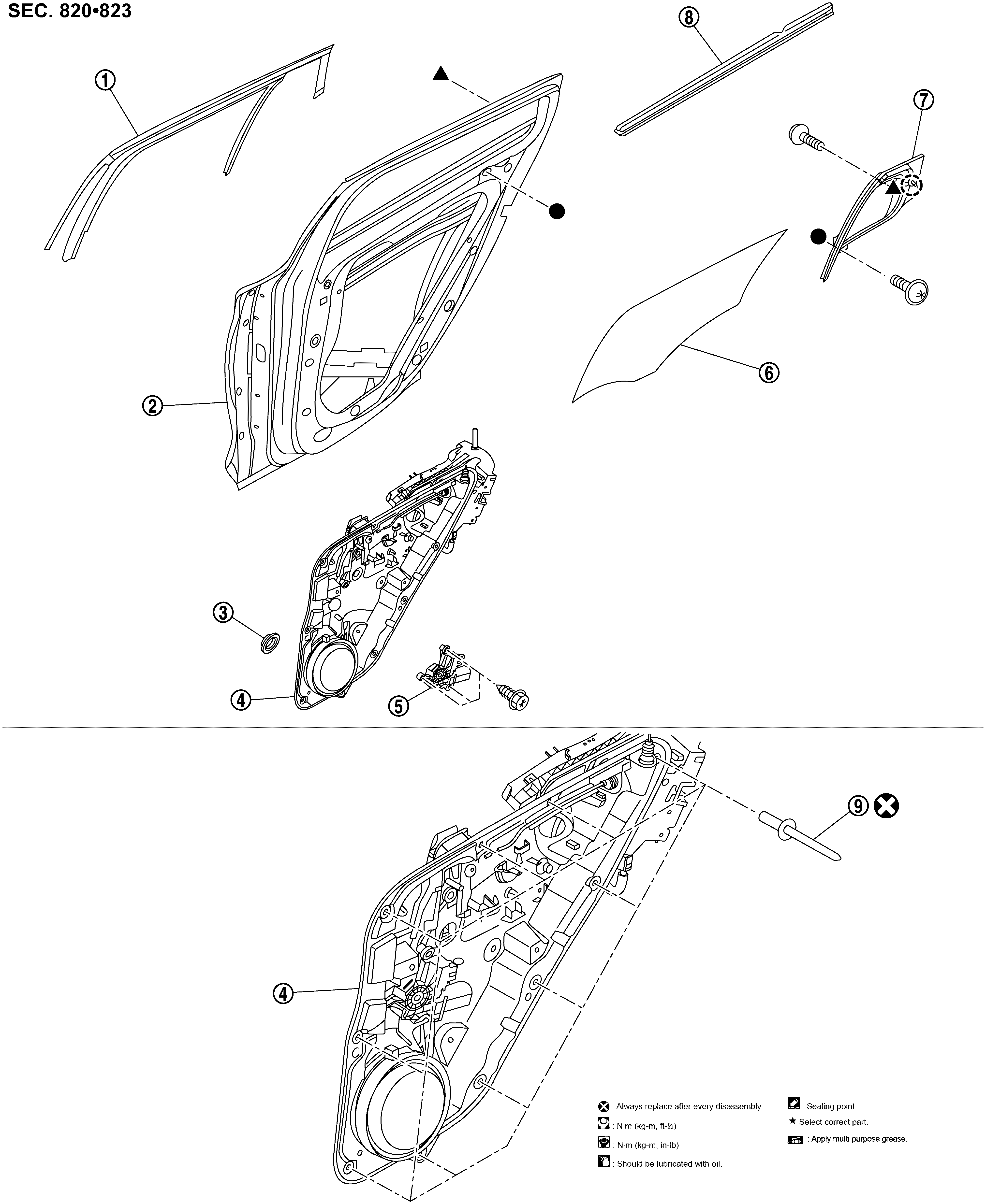

Exploded View
|
|
Rear door glass run |
|
Rear door panel |
|
Seal cover |
|
|
Rear door module assembly * |
|
Rear door power window motor |
|
Rear door glass |
|
|
Rear door partition glass assembly |
|
Rear door inside seal |
|
Rivet |
|
|
: Clip |
||||
|
|
: Always replace after every disassembly. |
||||
|
|
|||||
* : Rear door regulator is included in rear door module.
