2017 Infiniti QX80 Base, AWDFACTORY OEM SERVICE PROCEDURE

Operation Procedure

Turn ignition switch ON and wait 20 seconds.

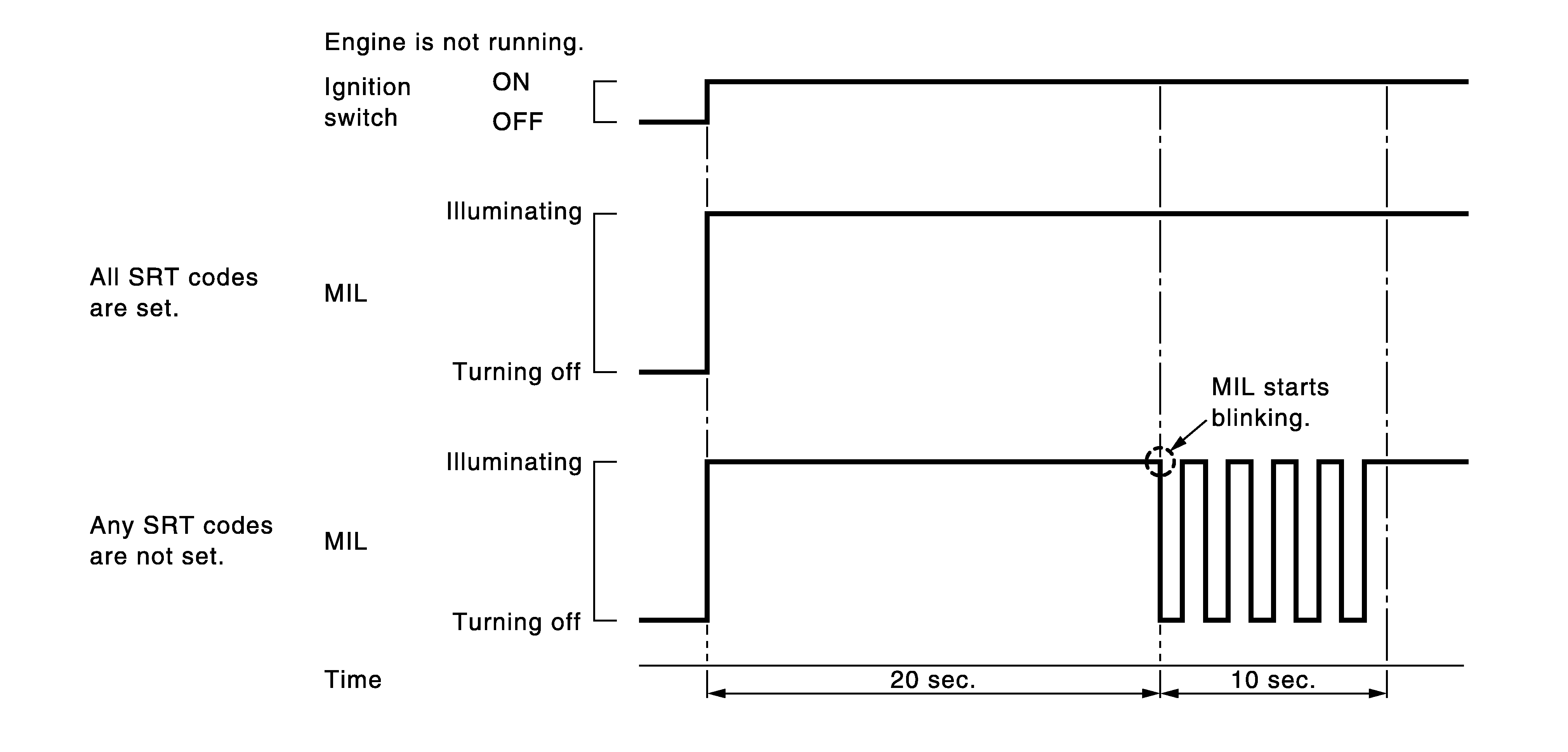

SRT status is indicated as shown blow.
- ECM continues to illuminate MIL if all SRT codes are set.
- ECM blinks MIL for about 10 seconds if all SRT codes are not set.
Courtesy of NISSAN NORTH AMERICA, INC.
