2017 Infiniti QX70 AWDFACTORY OEM SERVICE PROCEDURE

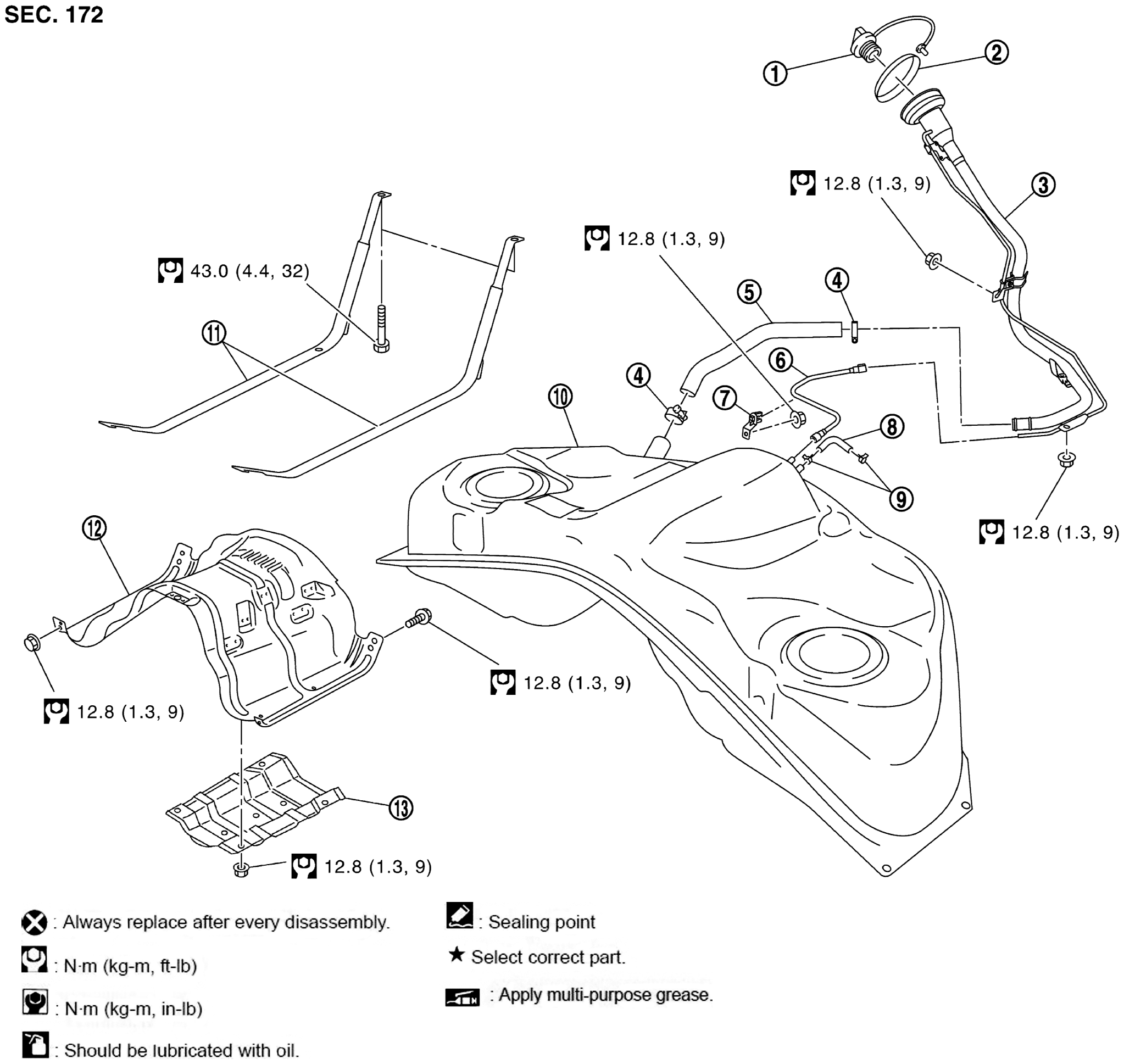

Exploded View
| 1. | Fuel Filler Cap | 2. | Grommet | 3. | Fuel Filler Tube |
| 4. | Clamp | 5. | Fuel Filler Hose | 6. | EVAP Tube |
| 7. | Clamp | 8. | Vent Hose | 9. | Clamp |
| 10. | Fuel Tank | 11. | Fuel Tank Mounting Band | 12. | Fuel Tank Protector |
| 13. | Insulator | ||||
| Refer to COMPONENTS for symbols in the figure. | |||||
