2017 Infiniti QX70 AWDFACTORY OEM SERVICE PROCEDURE

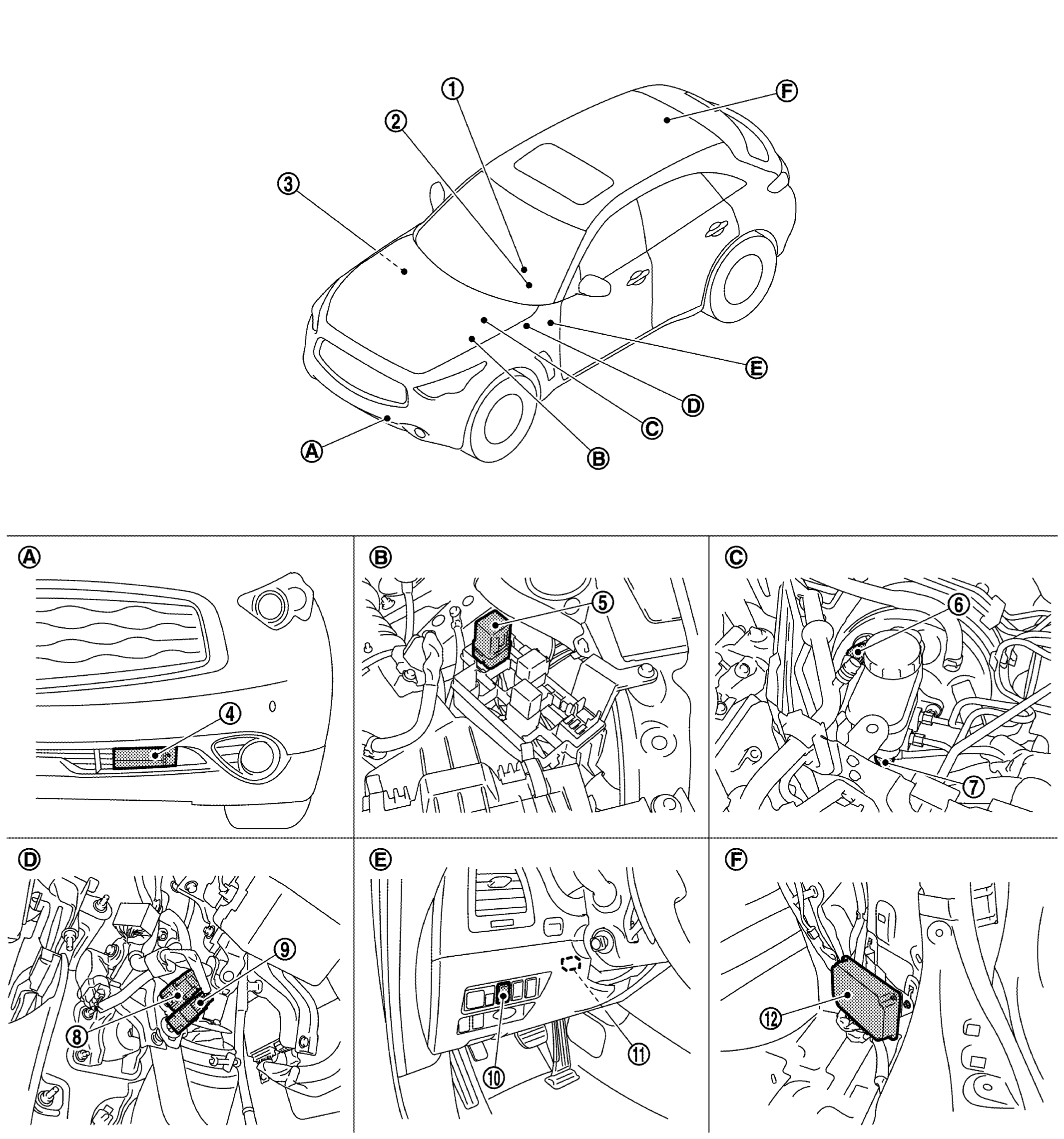

Component Location
| 1. | ICC Steering Switch | 2. | Information Display, ICC system Warning Lamp, IBA OFF Indicator Lamp | 3. | ECM Refer to COMPONENT LOCATION . |
| 4. | ICC Sensor Integrated Unit | 5. | ICC Brake Hold Relay | 6. | Booster Solenoid/Release Switch |
| 7. | Brake Pressure Sensor | 8. | Stop Lamp Switch | 9. | ICC Brake Switch |
| 10. | IBA OFF Switch | 11. | ICC Warning Chime | 12. | Brake Booster Control Unit |
| A. | Front Bumper (LH) | B. | Engine Room (LH) | C. | Inside brake master cylinder cover |
| D. | Upper side of brake pedal | E. | Instrument driver lower panel (LH) | F. | Luggage room (RH) |
