2017 Infiniti QX60 Base, AWDFACTORY OEM SERVICE PROCEDURE

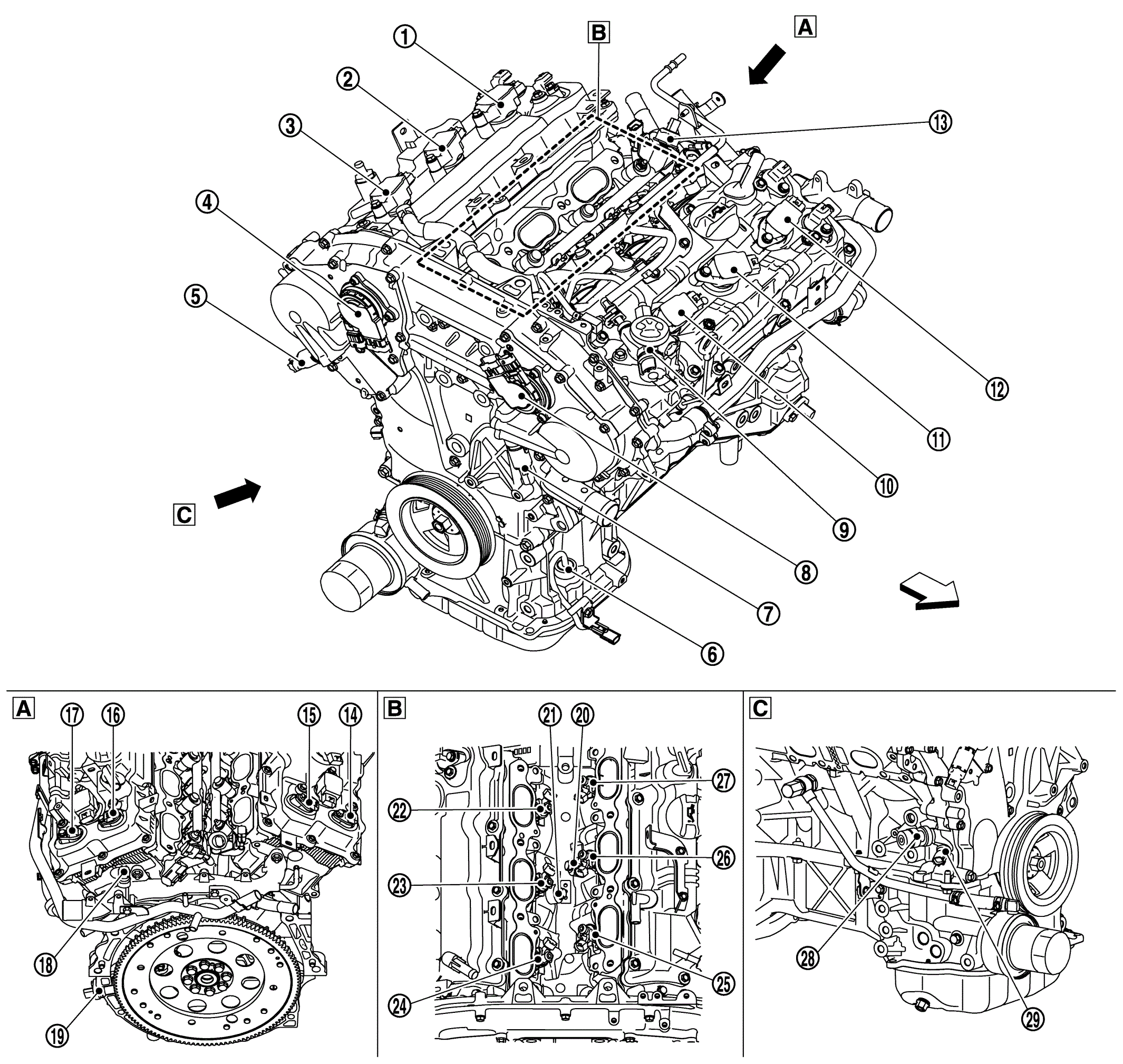

Engine Assembly Component
| Rear view of the engine | Top view of the engine | Side view of the engine | |||
| Vehicle front |
| No. | Component | Function |
|---|---|---|
| Ignition coil (with power transistor) and spark plug (No. 5 cylinder) | FUEL INJECTOR | |
| Ignition coil (with power transistor) and spark plug (No. 3 cylinder) | ||
| Ignition coil (with power transistor) and spark plug (No. 1 cylinder) | ||
| Electric intake valve timing control actuator (bank 1) | ELECTRIC INTAKE VALVE TIMING CONTROL ACTUATOR | |
| Exhaust valve timing control solenoid valve (bank 1) | EXHAUST VALVE TIMING CONTROL SOLENOID VALVE | |
| Engine oil pressure control solenoid valve | ENGINE OIL PRESSURE CONTROL SOLENOID VALVE | |
| Exhaust valve timing control solenoid valve (bank 2) | EXHAUST VALVE TIMING CONTROL SOLENOID VALVE | |
| Electric intake valve timing control actuator (bank 2) | ELECTRIC INTAKE VALVE TIMING CONTROL ACTUATOR | |
| High pressure fuel pump | HIGH PRESSURE FUEL PUMP | |
| Ignition coil (with power transistor) and spark plug (No. 2 cylinder) | IGNITION COIL AND SPARK PLUG | |
| Ignition coil (with power transistor) and spark plug (No. 4 cylinder) | ||
| Ignition coil (with power transistor) and spark plug (No. 6 cylinder) | ||
| Fuel rail pressure sensor | FUEL RAIL PRESSURE SENSOR | |
| Exhaust camshaft position sensor (bank 1) | EXHAUST CAMSHAFT POSITION SENSOR | |
| Intake camshaft position sensor (bank 1) | INTAKE CAMSHAFT POSITION SENSOR | |
| Intake camshaft position sensor (bank 2) | INTAKE CAMSHAFT POSITION SENSOR | |
| Exhaust camshaft position sensor (bank 2) | EXHAUST CAMSHAFT POSITION SENSOR | |
| Engine coolant temperature sensor | ENGINE COOLANT TEMPERATURE SENSOR | |
| Crankshaft position sensor | CRANKSHAFT POSITION SENSOR | |
| Knock sensor (bank 2) | KNOCK SENSOR | |
| Knock sensor (bank 1) | ||
| Fuel injector (No. 5 cylinder) | FUEL INJECTOR | |
| Fuel injector (No. 3 cylinder) | ||
| Fuel injector (No. 1 cylinder) | ||
| Fuel injector (No. 2 cylinder) | ||
| Fuel injector (No. 4 cylinder) | ||
| Fuel injector (No. 6 cylinder) | ||
| Engine oil pressure sensor | ENGINE OIL PRESSURE SENSOR | |
| Engine oil temperature sensor | EXHAUST CAMSHAFT POSITION SENSOR |
