2017 Infiniti QX50 AWDFACTORY OEM SERVICE PROCEDURE
AWD Models

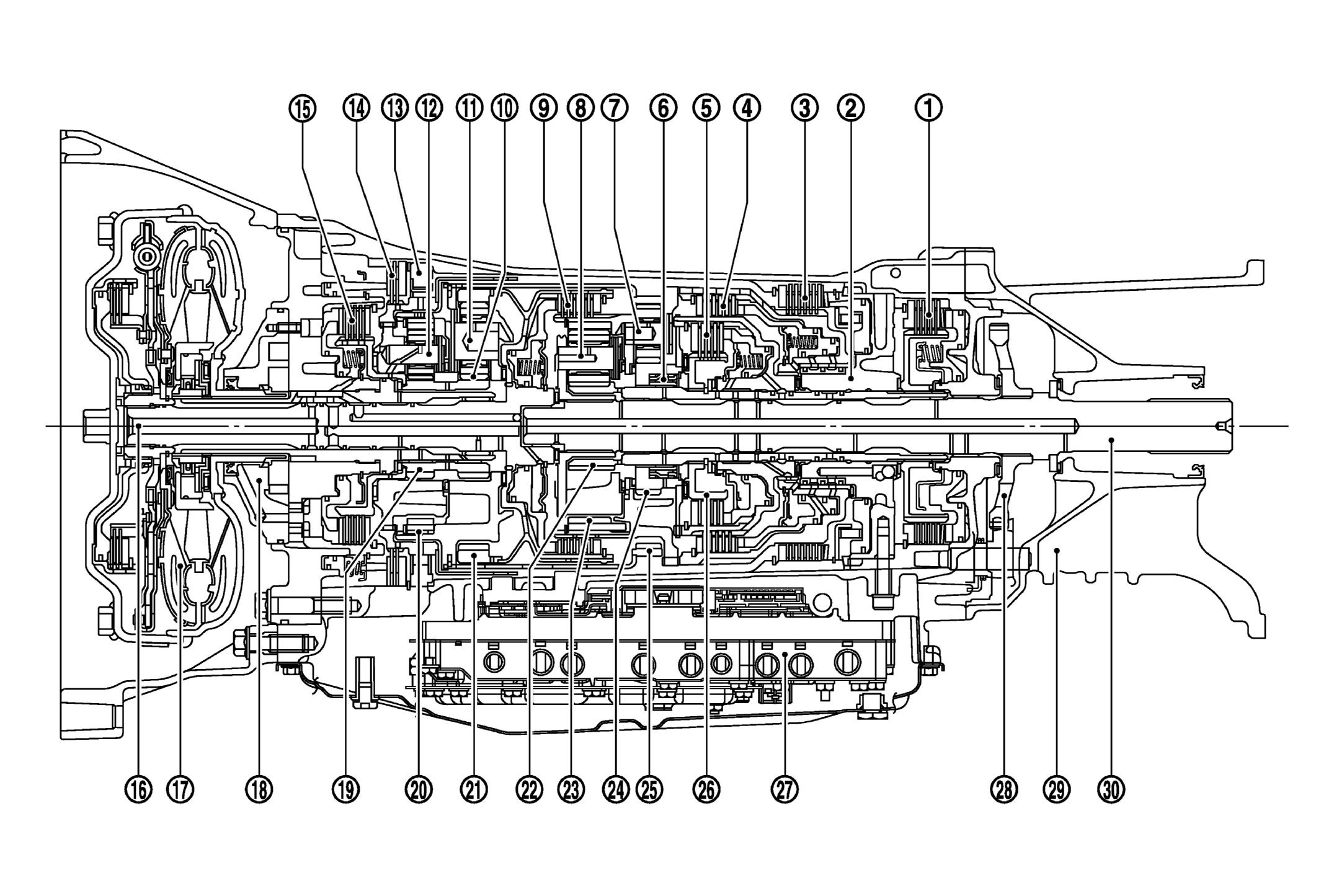

| 1. | Low brake | 2. | Drum support | 3. | Reverse brake |
| 4. | Direct clutch | 5. | High and low reverse clutch | 6. | 2nd one-way clutch |
| 7.*1 | Rear carrier | 8. | Mid carrier | 9. | Input clutch |
| 10.*2 | Front sun gear | 11.*3 | Front carrier | 12. | Under drive carrier |
| 13. | 1st one-way clutch | 14. | Front brake | 15. | 2346 brake |
| 16.*4 | Input shaft | 17. | Torque converter | 18. | Oil pump |
| 19.*2 | Under drive sun gear | 20.*3 | Under drive internal gear | 21.*4 | Front internal gear |
| 22. | Mid sun gear | 23.*1 | Mid internal gear | 24. | Rear sun gear |
| 25. | Rear internal gear | 26. | High and low reverse clutch hub | 27. | Control valve & TCM |
| 28. | Parking gear | 29. | Adapter case | 30. | Output shaft |
| *1: 7 and 23 are one unit. | |||||
| *2: 10 and 19 are one unit. | |||||
| *3: 11 and 20 are one unit. | |||||
| *4: 16 and 21 are one unit. | |||||
