2017 Infiniti QX50 AWDFACTORY OEM SERVICE PROCEDURE

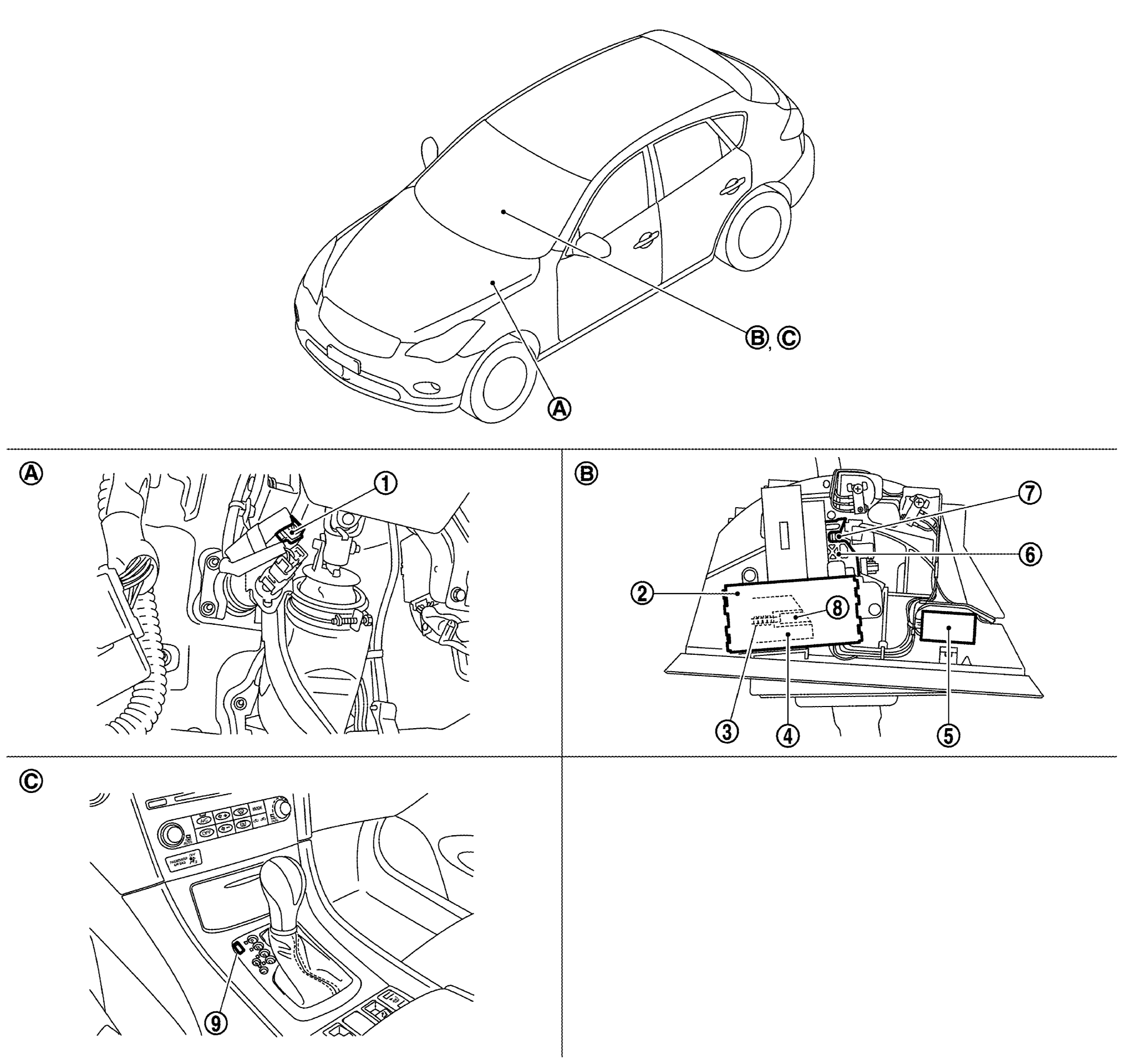

Component Location
| 1. | Stop lamp switch | 2. | Shift lock unit | 3. | Shift lock solenoid |
| 4. | Slider A | 5. | A/T shift selector harness connector | 6. | Lock plate |
| 7. | Position pin | 8. | Slider B | 9. | Shift lock cover * |
| A. | Brake pedal, upper | B. | A/T shift selector assembly | C. | Center console |
*: Shift lock release button becomes operative by removing shift lock cover.
