2017 Infiniti QX50 AWDFACTORY OEM SERVICE PROCEDURE

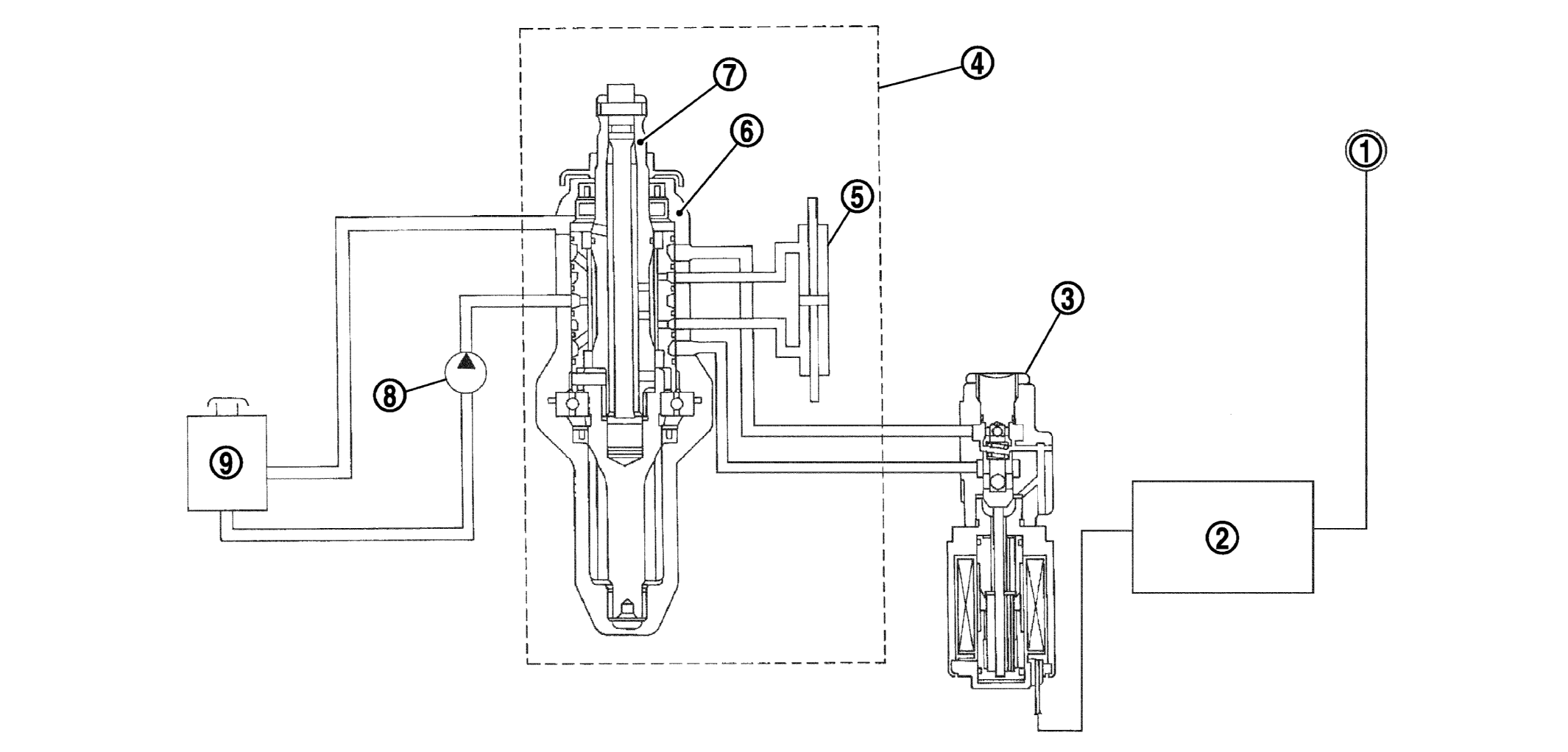

Cross-Sectional View

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Unified meter and A/C amp.	2.	Power steering control unit	3.	Power steering solenoid valve
4.	Steering gear assembly	5.	Gear housing assembly	6.	Gear sub-assembly
7.	Pinion	8.	Power steering oil pump	9.	Reservoir tank
