2017 Infiniti QX50 AWDFACTORY OEM SERVICE PROCEDURE
Component Location

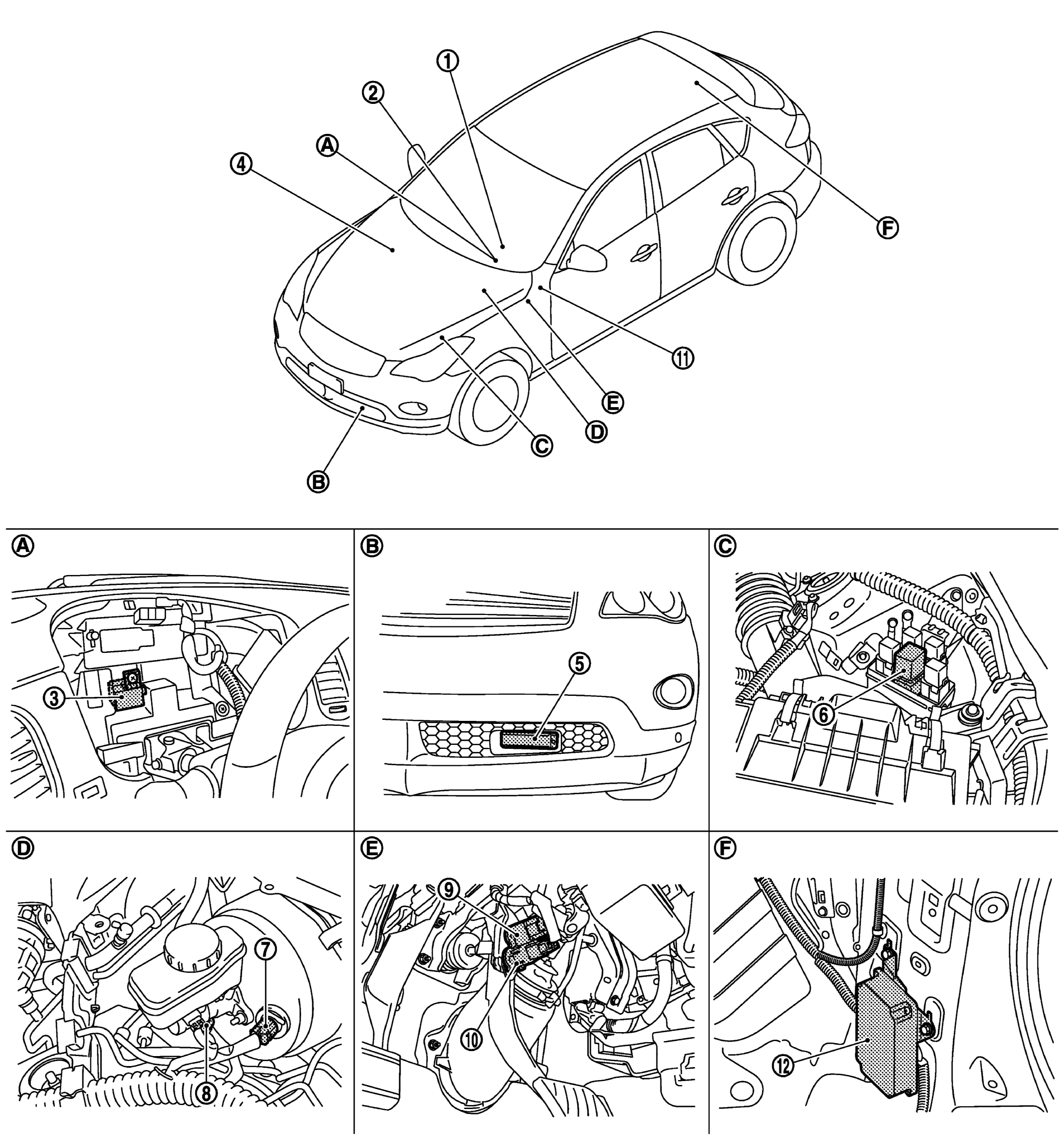

| 1. | ICC steering switch | 2. | Information display, ICC system warning lamp (On the combination meter) |
3. | ICC warning chime |
| 4. | ECM Refer to COMPONENT LOCATION . |
5. | ICC sensor integrated unit | 6. | ICC brake hold relay |
| 7. | Booster solenoid/Release switch | 8. | Brake pressure sensor | 9. | Stop lamp switch |
| 10. | ICC brake switch | 11. | IBA OFF switch | 12. | Brake booster control unit |
| A. | Behind the combination meter | B. | Front bumper (LH) | C. | Engine room (LH) |
| D. | Inside brake master cylinder cover | E. | Upper side of brake pedal | F. | Luggage room (RH) |
