2017 Infiniti QX30 BaseFACTORY OEM SERVICE PROCEDURE

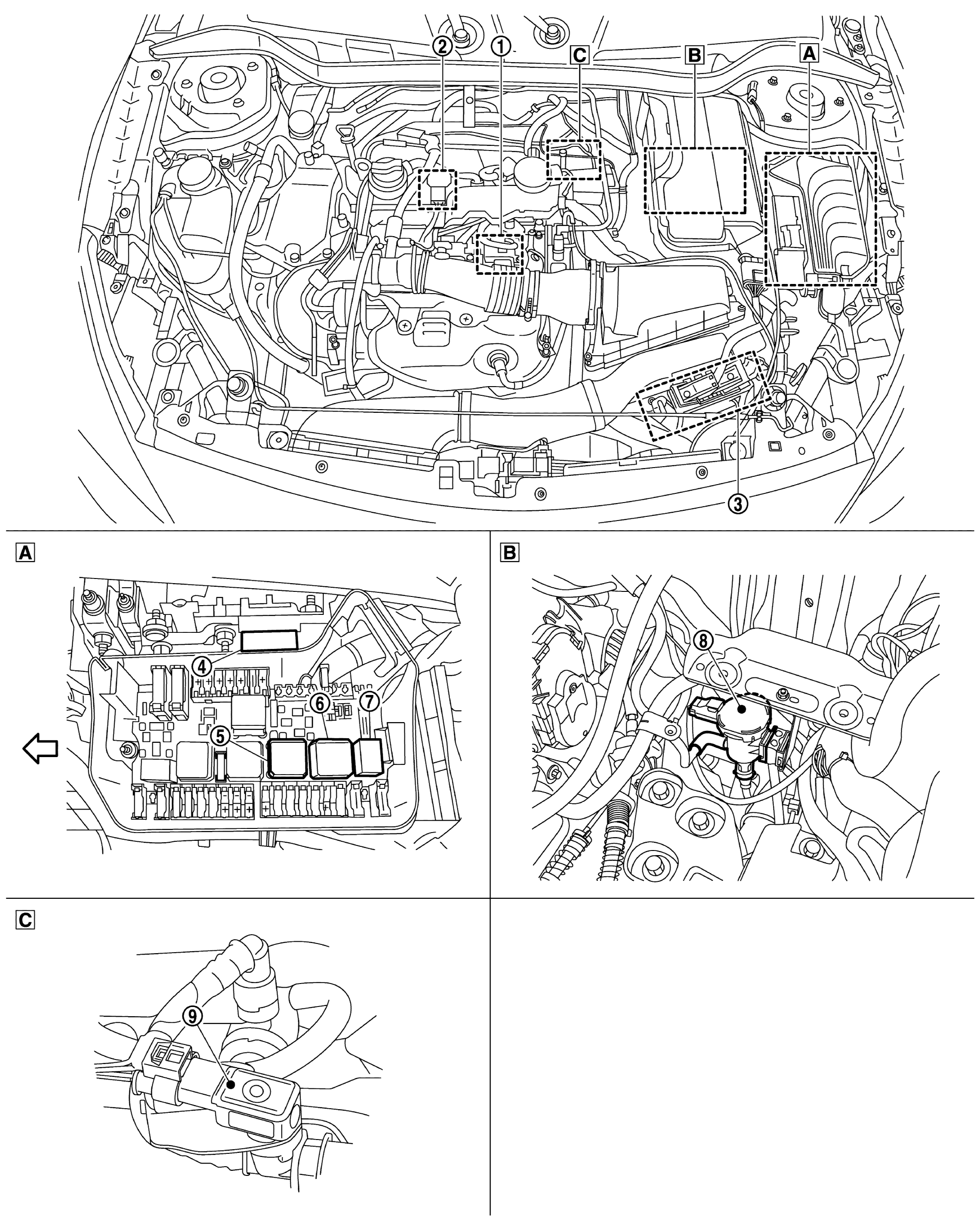

Engine Room Compartment
| Fuse and fusible link block 1 | Battery under side | Engine room center | |||
| : Vehicle front |
| No. | Component | Function |
|---|---|---|
| Pressure sensor downstream of air filter | PRESSURE SENSOR DOWNSTREAM OF THROTTLE VALVE | |
| Intake camshaft valve lift switchover | INTAKE CAMSHAFT VALVE LIFT SWITCHOVER | |
| ECM | ECM | |
| Decoupling relay | The decoupling relay is controlled by BCM and changes power supply circuit of on-board electrical system while restart the engine. (stop/start system) For the details of the control, refer to SYSTEM DESCRIPTION . |
|
| Starter relay | The decoupling relay is controlled by ECM and supplies battery voltage to starter motor. For the details of control, refer to SYSTEM DESCRIPTION . | |
| Motor relay | The motor relay is controlled by ECM and supplies battery voltage to ECU, actuator, sensor, and etc. | |
| Water pump relay | The water pump relay is controlled by ECM and supplies battery voltage to water pump. For the details of the control. | |
| EVAP purge control valve | EVAP PURGE CONTROL VALVE | |
| EVAP control system pressure sensor | The EVAP control system pressure sensor detects pressure in the purge line. |
