2017 Infiniti QX30 BaseFACTORY OEM SERVICE PROCEDURE

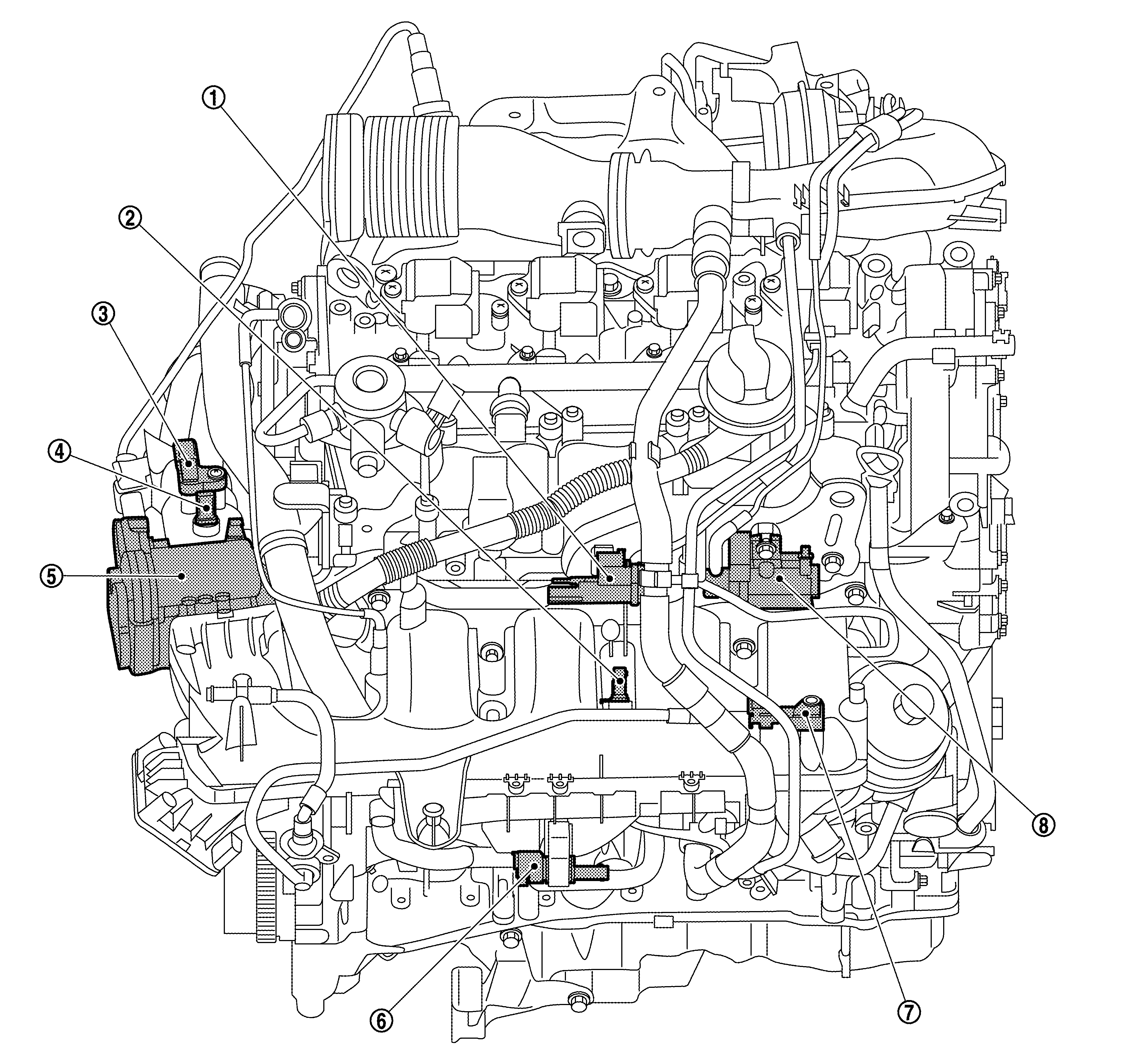

Engine Compartment (Top View)
| No. | Component | Function |
|---|---|---|
| Coolant pump switchover valve | COOLANT PUMP SWITCHOVER VALVE | |
| Charge air temperature sensor downstream of throttle valve | CHARGE AIR TEMPERATURE SENSOR DOWNSTREAM OF THROTTLE VALVE | |
| Pressure sensor upstream of throttle valve | PRESSURE SENSOR UPSTREAM OF THROTTLE VALVE | |
| Charge air temperature sensor upstream of throttle valve | CHARGE AIR TEMPERATURE SENSOR UPSTREAM OF THROTTLE VALVE | |
| Throttle valve actuator | THROTTLE VALVE ACTUATOR | |
| Partial load operation crankcase ventilation valve | The partial load operation crankcase ventilation valve is usually open, and blow-by gas is sucked into the boost air distributor pipe from the oil separator. During deceleration, the partial load operation crankcase ventilation valve is closed according to a signal from ECM. This stops blow-by gas flown from crankcase to intake air system and reduces noise. | |
| Pressure sensor downstream of throttle valve | PRESSURE SENSOR DOWNSTREAM OF THROTTLE VALVE | |
| Boost pressure control vacuum transducer | BOOST PRESSURE CONTROL VACUUM TRANSDUCER |
