2017 Infiniti QX30 BaseFACTORY OEM SERVICE PROCEDURE

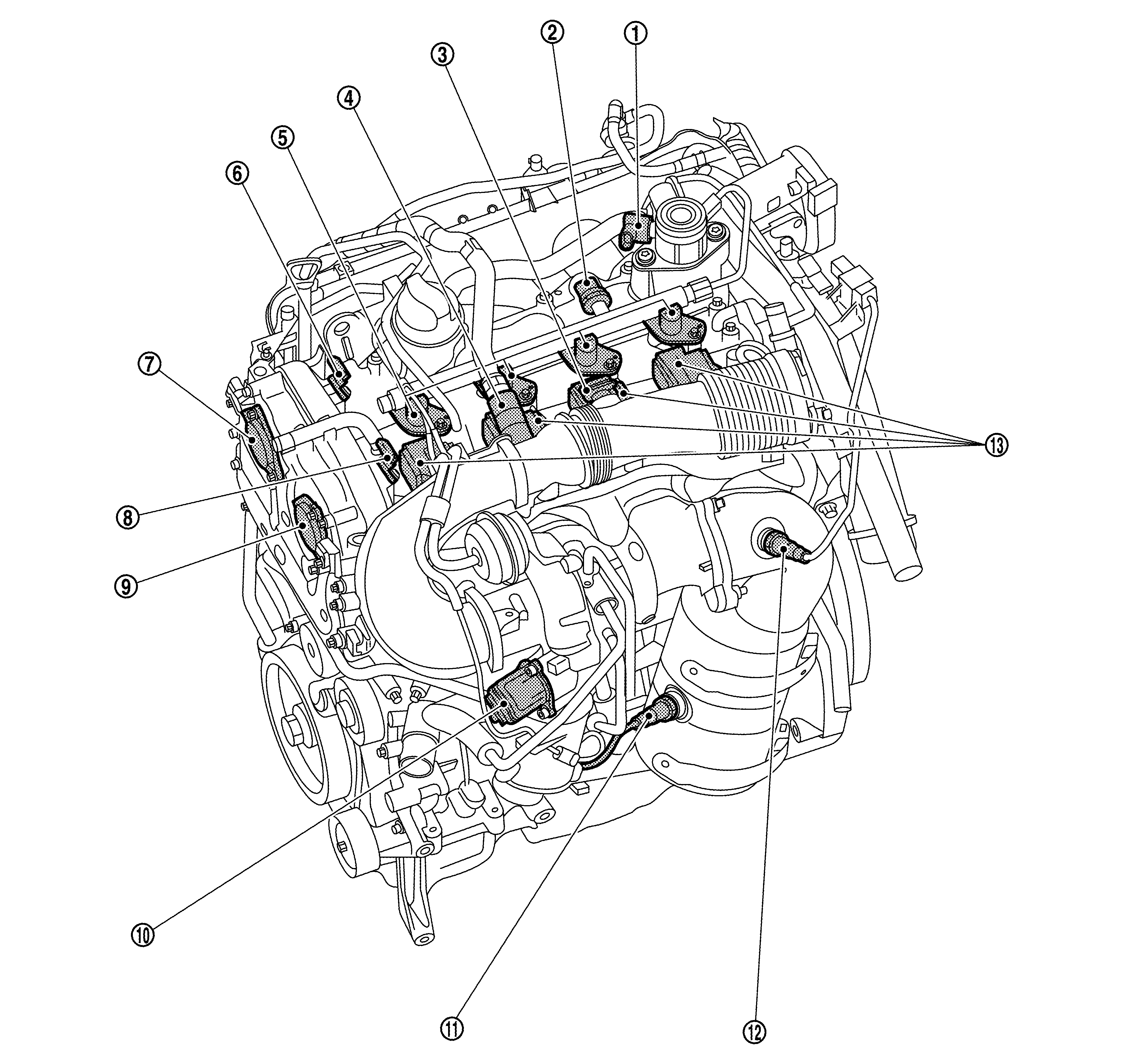

Engine Compartment (Front View)
| No. | Component | Function |
|---|---|---|
| Quantity control valve | QUANTITY CONTROL VALVE | |
| Fuel pressure and temperature sensor | FUEL PRESSURE AND TEMPERATURE SENSOR | |
| Pressure sensor downstream of air filter | The pressure sensor downstream of air filter is located on intake air duct and detects intake air pressure downstream of the air filter. | |
| Full-load operation vent line heater element | FULL-LOAD OPERATION VENT LINE HEATER ELEMENT | |
| Fuel injector | FUEL INJECTOR | |
| Intake camshaft position sensor | INTAKE CAMSHAFT POSITION SENSOR | |
| Intake camshaft actuator | INTAKE CAMSHAFT ACTUATOR | |
| Exhaust camshaft position sensor | EXHAUST CAMSHAFT POSITION SENSOR | |
| Exhaust camshaft actuator | EXHAUST CAMSHAFT ACTUATOR | |
| Divert air switchover valve | DIVERT AIR SWITCHOVER VALVE | |
| Heated oxygen sensor | HEATED OXYGEN SENSOR | |
| Air fuel ratio (A/F) sensor | AIR-FUEL RATIO (A/F) SENSOR | |
| Ignition coil | SYSTEM DESCRIPTION |
