2017 Infiniti Q60 Base, AWDFACTORY OEM SERVICE PROCEDURE
Engine Assembly Component
WARNING: This page is about a different variant/trim than selected.

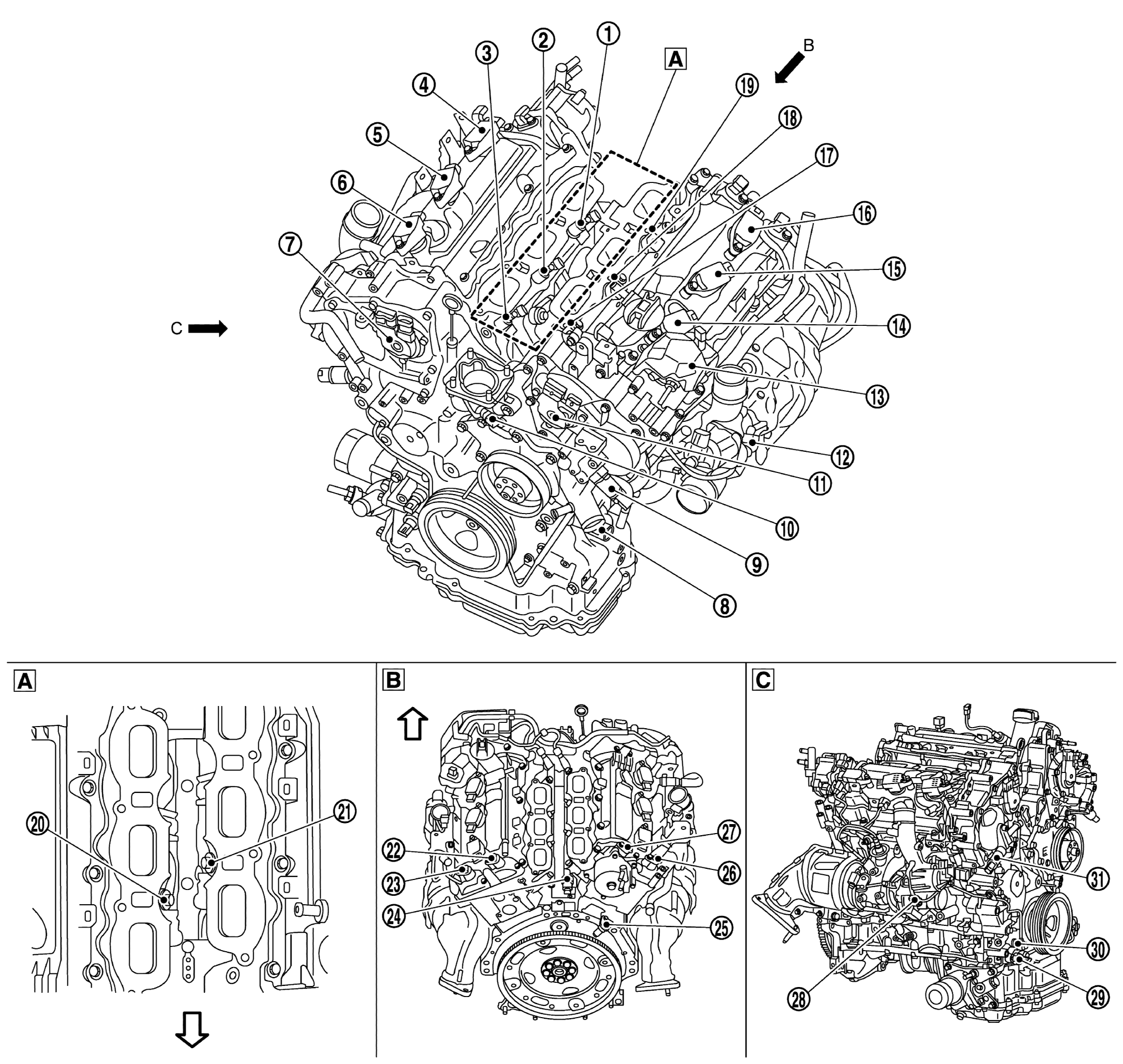

| Top View Of The Engine (View With Intake Manifold Is Removed) |
Rear View Of The Engine | Side View Of The Engine | |||
| Engine Front |
| No. | Component | Function |
|---|---|---|
| Fuel Injector (No. 5 Cylinder) | FUEL INJECTOR | |
| Fuel Injector (No. 3 Cylinder) | ||
| Fuel Injector (No. 1 Cylinder) | ||
| Ignition Coil (With Power Transistor) And Spark Plug (No. 5 Cylinder) | IGNITION COIL AND SPARK PLUG | |
| Ignition Coil (With Power Transistor) And Spark Plug (No. 3 Cylinder) | ||
| Ignition Coil (With Power Transistor) And Spark Plug (No. 1 Cylinder) | ||
| Electric Intake Valve Timing Control Actuator (Bank 1) | ELECTRIC INTAKE VALVE TIMING CONTROL ACTUATOR | |
| Engine Oil Pressure Control Solenoid Valve | ENGINE OIL PRESSURE CONTROL SOLENOID VALVE | |
| Exhaust Valve Timing Control Solenoid Valve (Bank 2) | EXHAUST VALVE TIMING CONTROL SOLENOID VALVE | |
| Engine Coolant Temperature Sensor 1 | ENGINE COOLANT TEMPERATURE SENSOR 1 | |
| Electric Intake Valve Timing Control Actuator (Bank 2) | ELECTRIC INTAKE VALVE TIMING CONTROL ACTUATOR | |
| Turbocharger Speed Sensor (Bank 2)* | TURBOCHARGER SPEED SENSOR | |
| High Pressure Fuel Pump | HIGH PRESSURE FUEL PUMP | |
| Ignition Coil (With Power Transistor) And Spark Plug (No. 2 Cylinder) | IGNITION COIL AND SPARK PLUG | |
| Ignition Coil (With Power Transistor) And Spark Plug (No. 4 Cylinder) | ||
| Ignition Coil (With Power Transistor) And Spark Plug (No. 6 Cylinder) | ||
| Fuel Injector (No. 2 Cylinder) | FUEL INJECTOR | |
| Fuel Injector (No. 4 Cylinder) | ||
| Fuel Injector (No. 6 Cylinder) | ||
| Knock Sensor (Bank 1) | KNOCK SENSOR | |
| Knock Sensor (Bank 2) | ||
| Intake Camshaft Position Sensor (Bank 2) | INTAKE CAMSHAFT POSITION SENSOR | |
| Exhaust Camshaft Position Sensor (Bank 2) | EXHAUST CAMSHAFT POSITION SENSOR | |
| Fuel Rail Pressure Sensor | FUEL RAIL PRESSURE SENSOR | |
| Crankshaft Position Sensor | CRANKSHAFT POSITION SENSOR | |
| Exhaust Camshaft Position Sensor (Bank 1) | EXHAUST CAMSHAFT POSITION SENSOR | |
| Intake Camshaft Position Sensor (Bank 1) | INTAKE CAMSHAFT POSITION SENSOR | |
| Turbocharger Speed Sensor (Bank 1)* | TURBOCHARGER SPEED SENSOR | |
| Engine Oil Pressure Sensor | ENGINE OIL PRESSURE SENSOR | |
| Engine Oil Temperature Sensor | EXHAUST CAMSHAFT POSITION SENSOR | |
| Exhaust Valve Timing Control Solenoid Valve (Bank 1) | EXHAUST VALVE TIMING CONTROL SOLENOID VALVE |
*: For turbo high pressure model
