Basic Operation

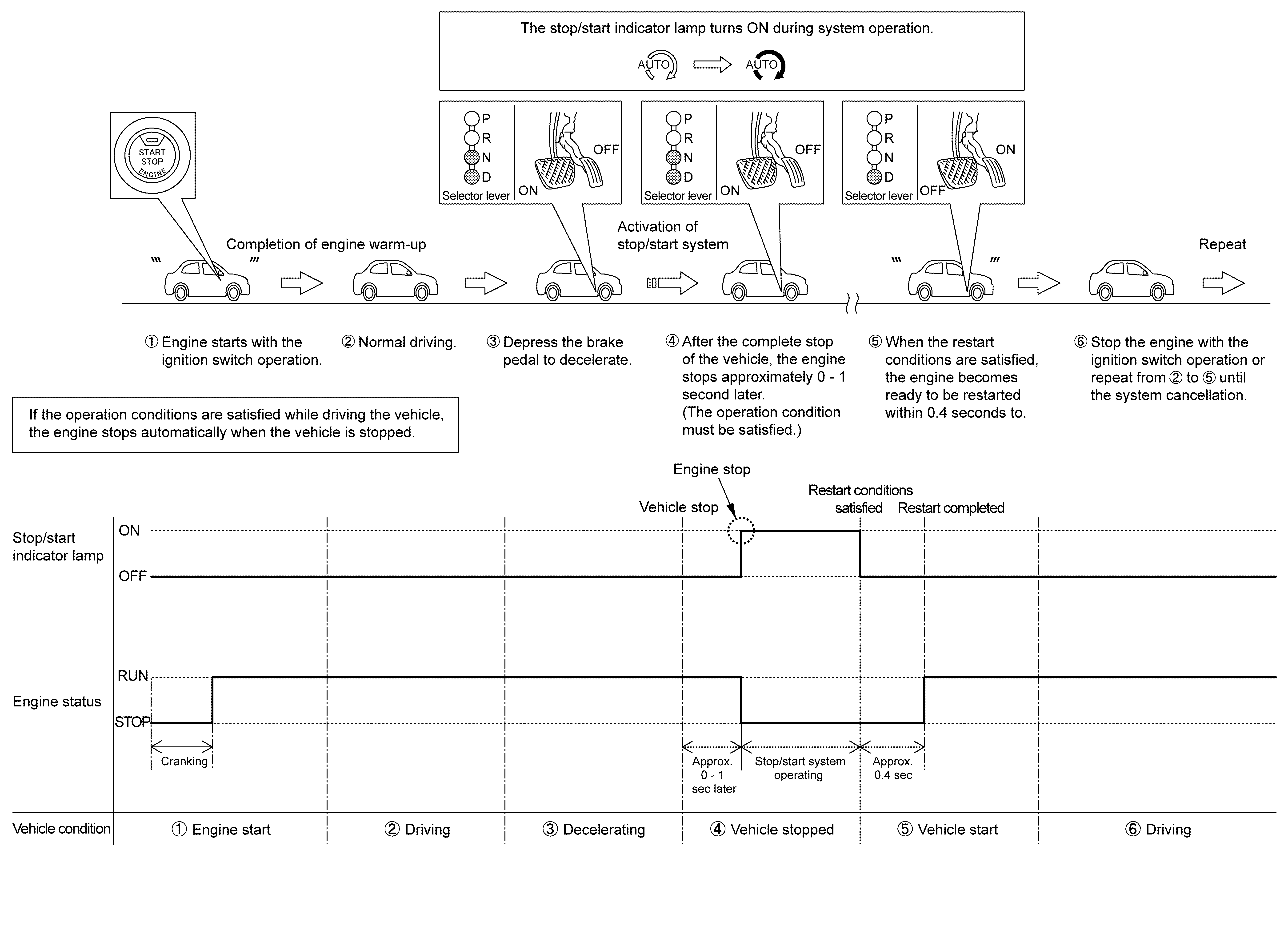

When the stop/start system readiness conditions are satisfied while the vehicle is moving, the system is ready.
When the stop/start system operation conditions are satisfied while the vehicle is in a stop condition, the engine is stopped.
During stop/start system operation, stopping time, the amount of fuel saved by the stop/start system and CO2 saved information are indicated on the combination meter. (With dot matrix information display. Refer to SYSTEM DESCRIPTION .)
When the engine restart conditions are satisfied, ECM and EMCM activate Relays to restart the engine.
After restarting the engine, the stop/start indicator lamp and the indication on the information display turn OFF.
