2017 Infiniti Q60 Base, AWDFACTORY OEM SERVICE PROCEDURE

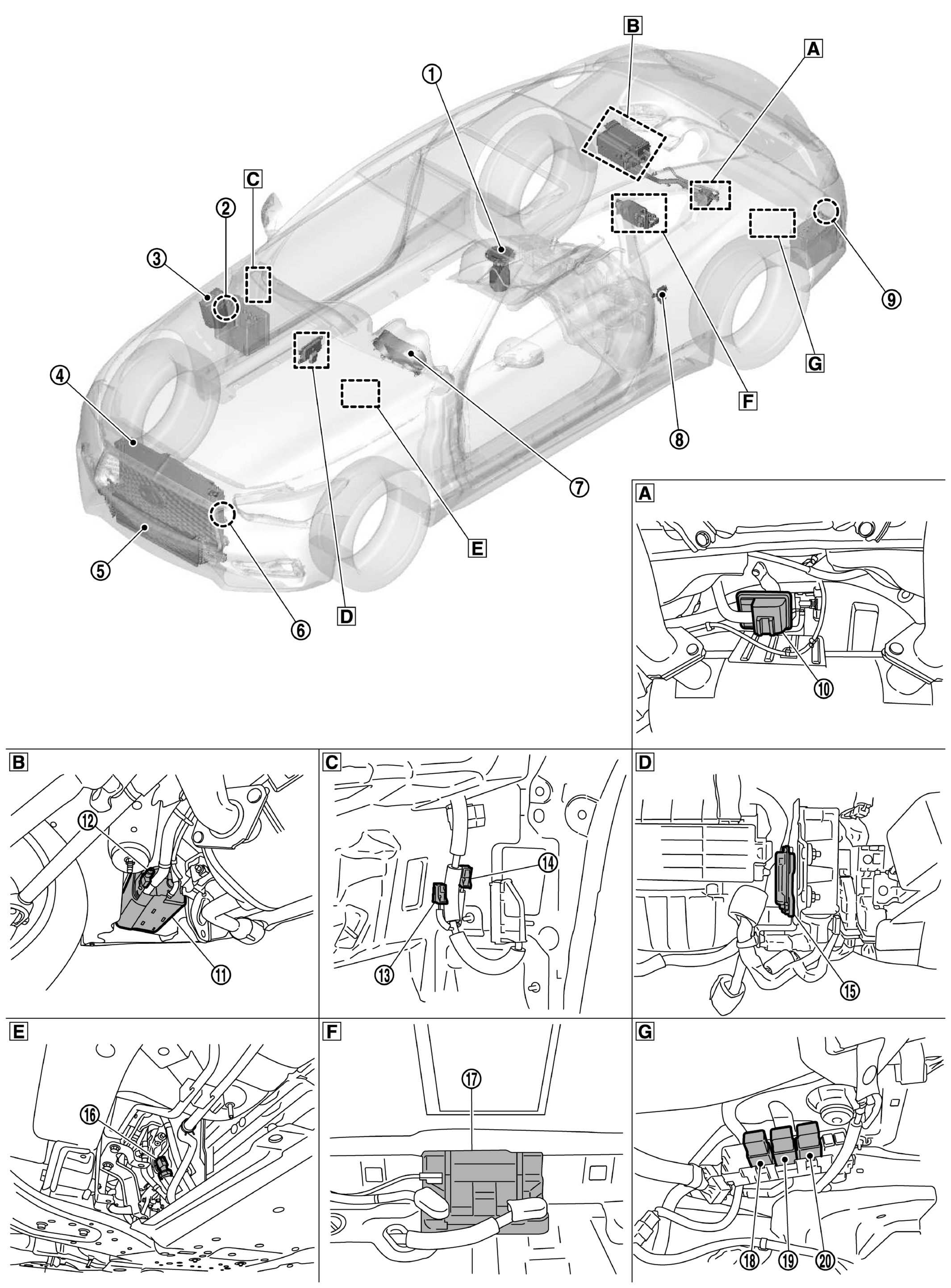

Vehicle Compartment
| Center Of Main Muffler | Right Side Of Main Muffler | Behind Of Glove Box | |||
| Behind Of Glove Box | Left Side Of Transmission | Front Side Of Trunk Room | |||
| Upper Left Side Of Trunk Room |
| No. | Component | Function |
|---|---|---|
| Fuel Pump | FUEL PUMP | |
| Main Battery Current Sensor (With Main Battery Temperature Sensor) | MAIN BATTERY CURRENT SENSOR (WITH MAIN BATTERY TEMPERATURE SENSOR) | |
| IPDM E/R | IPDM E/R controls the internal Relays. When CAN communication with ECM is impossible, IPDM E/R performs fail-safe control. |
|
| Cooling Fan Control Module | COOLING FAN CONTROL MODULE | |
| Charge Air Cooler | SYSTEM DESCRIPTION | |
| Refrigerant Pressure Sensor | REFRIGERANT PRESSURE SENSOR | |
| Combination Meter | COMPONENT LOCATION | |
| FPCM (Fuel Pump Control Module) (Behind of the rear piller inner reinforcement LH) |
FPCM (FUEL PUMP CONTROL MODULE) | |
| Sub-Battery Current Sensor (With Sub-Battery Temperature Sensor) | SUB-BATTERY CURRENT SENSOR (WITH SUB-BATTERY TEMPERATURE SENSOR) | |
| Fuel Tank Pressure Sensor | Senses fuel tank pressure. | |
| EVAP Canister | EVAP canister stores the generated fuel vapors in the sealed fuel tank to activated charcoals of EVAP canister when the engine is not operating or when refueling to the fuel tank. | |
| EVAP Canister Vent Control Valve | The ability to seal the vent is necessary for the on board diagnosis of other evaporative emission control system components. This solenoid valve is used only for diagnosis, and usually remains opened. | |
| Resistor 2 | SYSTEM DESCRIPTION | |
| Resistor 1 | SYSTEM DESCRIPTION | |
| EMCM (Energy Management Control Module) | EMCM (ENERGY MANAGEMENT CONTROL MODULE) | |
| Fuel Pressure Sensor | FUEL PRESSURE SENSOR | |
| Sub-Battery Relay | SUB-BATTERY RELAY | |
| Engine Restart Bypass Control Relay | ENGINE RESTART BYPASS CONTROL RELAY | |
| EMCM Relay | SYSTEM DESCRIPTION | |
| Ignition Relay | SYSTEM DESCRIPTION |
