2017 Infiniti Q60 Base, AWDFACTORY OEM SERVICE PROCEDURE

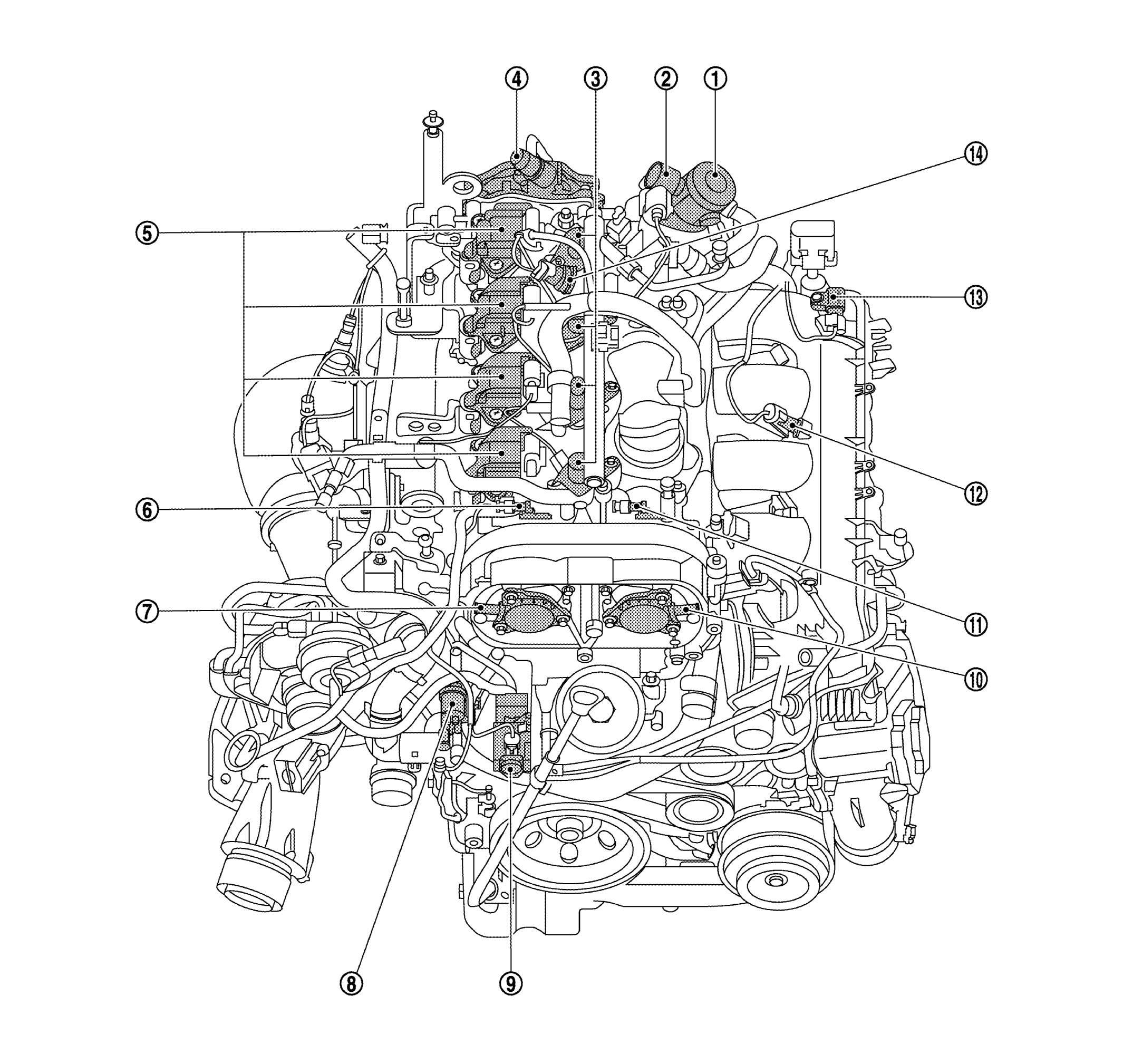

Engine Compartment (Top View)
| No. | Component | Function |
|---|---|---|
| High Pressure Fuel Pump | SYSTEM DESCRIPTION | |
| Quantity Control Valve | SYSTEM DESCRIPTION | |
| Fuel Injector | FUEL INJECTOR | |
| Vacuum Pump | VACUUM LINE LAYOUT | |
| Ignition Coil | SYSTEM DESCRIPTION | |
| Exhaust Camshaft Position Sensor | Detects exhaust camshaft position. | |
| Exhaust Camshaft Actuator | SYSTEM DESCRIPTION | |
| Coolant Pump Switchover Valve | COOLANT PUMP SWITCHOVER VALVE | |
| Boost Pressure Control Vacuum Transducer | SYSTEM DESCRIPTION | |
| Intake Camshaft Actuator | SYSTEM DESCRIPTION | |
| Intake Camshaft Position Sensor | INTAKE CAMSHAFT POSITION SENSOR | |
| Charge Air Temperature Sensor Downstream Of Throttle Valve | Senses a charge air temperature downstream of throttle valve | |
| Pressure Sensor Downstream Of Throttle Valve | PRESSURE SENSOR DOWNSTREAM OF AIR FILTER | |
| Fuel Pressure And Temperature Sensor | Senses a fuel pressure and fuel temperature in fuel rail. |
