2017 Infiniti Q60 Base, AWDFACTORY OEM SERVICE PROCEDURE

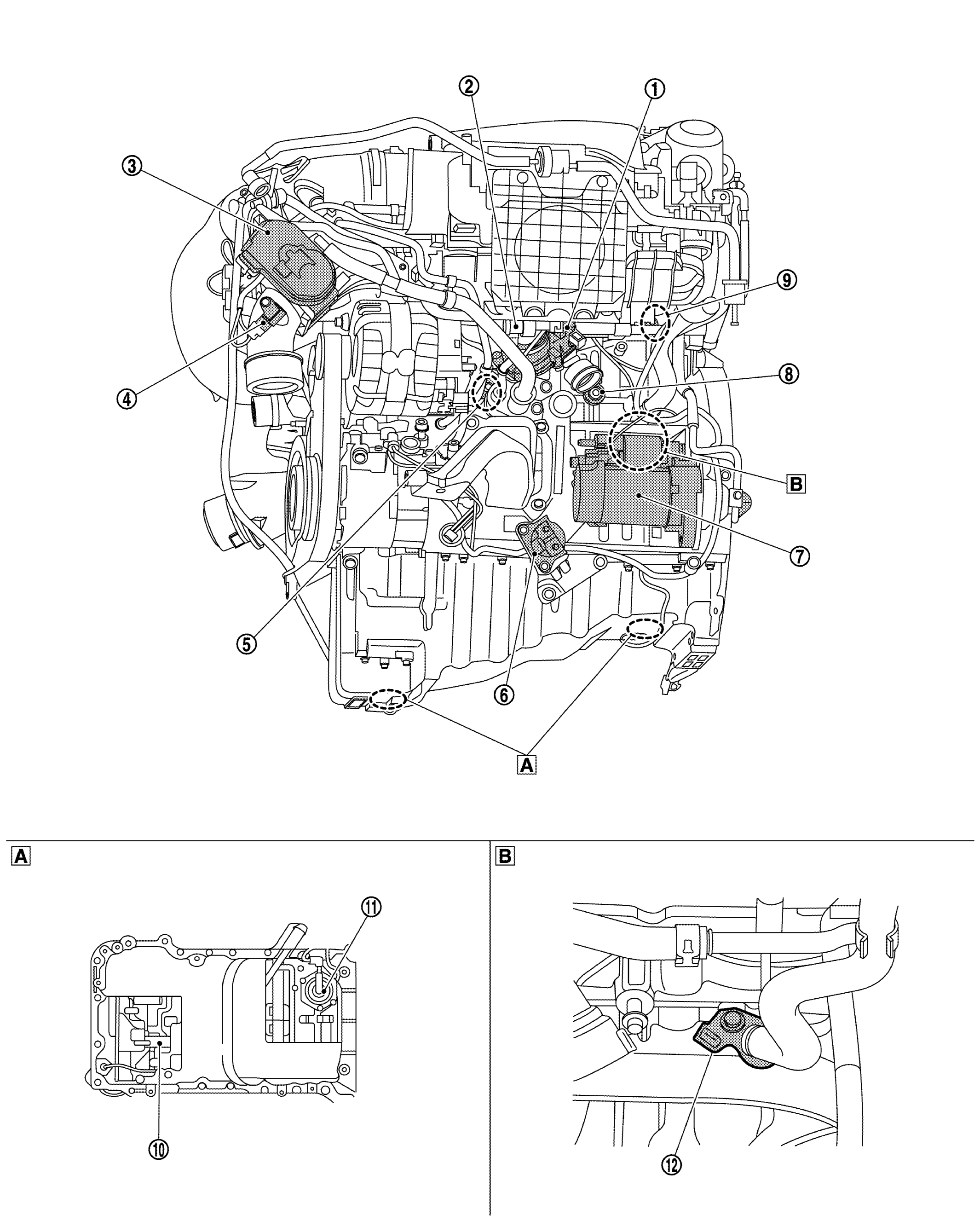

Engine Compartment (Left Side)
| Oil Pan | Left Side Of Cylinder Block |
| No. | Component | Function |
|---|---|---|
| Coolant Thermostat Heater Element | COOLANT THERMOSTAT HEATER ELEMENT | |
| Partial Load Operation Crankcase Ventilation Valve | CRANKCASE VENTILATION SYSTEM | |
| Throttle Valve Actuator | THROTTLE VALVE ACTUATOR | |
| Pressure Sensor Upstream Of Throttle Valve | Senses charge air pressure downstream of throttle valve. | |
| Knock Sensor 1 | KNOCK SENSOR | |
| Engine Restart Bypass Relay | ENGINE RESTART BYPASS RELAY | |
| Starter Motor | STARTER MOTOR | |
| Knock Sensor 2 | KNOCK SENSOR | |
| Engine Coolant Temperature Sensor | Senses a engine coolant temperature. | |
| Engine Oil Pump Valve | - | |
| Engine Oil Level Switch | - | |
| Blow-By Sensor | Senses a leak of blow-by hose. |
