2017 Infiniti Q60 Base, AWDFACTORY OEM SERVICE PROCEDURE

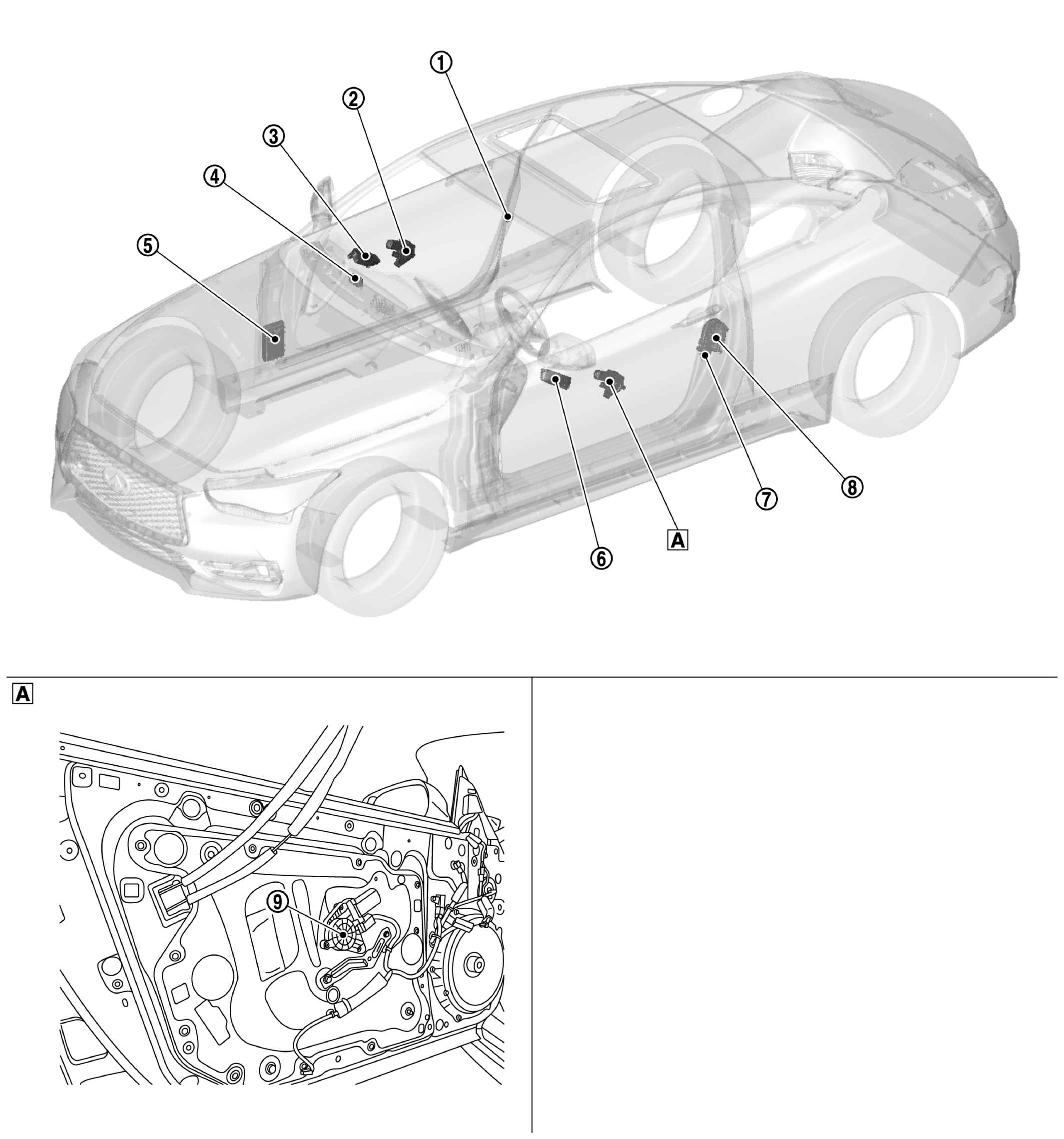

Component Location

GNSJMKIB6869ZZ-869Courtesy of NISSAN NORTH AMERICA, INC.
WZ-A View With Door Finisher (Driver Side) Removed
No. Component Function
WHITE-1 Door Switch (Passenger Side) Detects door open/close condition and transmits to BCM.
Refer to COMPONENT LOCATION for detailed installation location.
WHITE-2 Power Window Motor (Passenger Side) Refer to POWER WINDOW MOTOR .
WHITE-3 Power Window Sub-Switch Refer to POWER WINDOW SUB-SWITCH .
WHITE-4 Remote Keyless Entry Receiver Receives key ID signal from the Intelligent Key, and then transmits to BCM.
Refer to COMPONENT LOCATION for detailed installation location.
WHITE-5 BCM
  • Supplies power supply to each power window switch.
  • Controls retained power.
  • Receives key ID signal from remote keyless entry receiver.
  • Controls keyless power window operation via serial link.
Refer to COMPONENT LOCATION for detailed installation location.
WHITE-6 Power Window Main Switch Refer to POWER WINDOW MAIN SWITCH .
WHITE-7 Door Switch (Driver Side) Detects door open/close condition and transmits to BCM.
Refer to COMPONENT LOCATION for detailed installation location.
WHITE-8 Door Lock Assembly (Driver Side) Door Key Cylinder Switch Transmits operation condition of door key cylinder switch to Power Window Main Switch.
Refer to DOOR LOCK ASSEMBLY for detailed installation location.
WHITE-9 Power Window Motor (Driver Side) Refer to POWER WINDOW MOTOR .
