2017 Infiniti Q50 Base, AWDFACTORY OEM SERVICE PROCEDURE

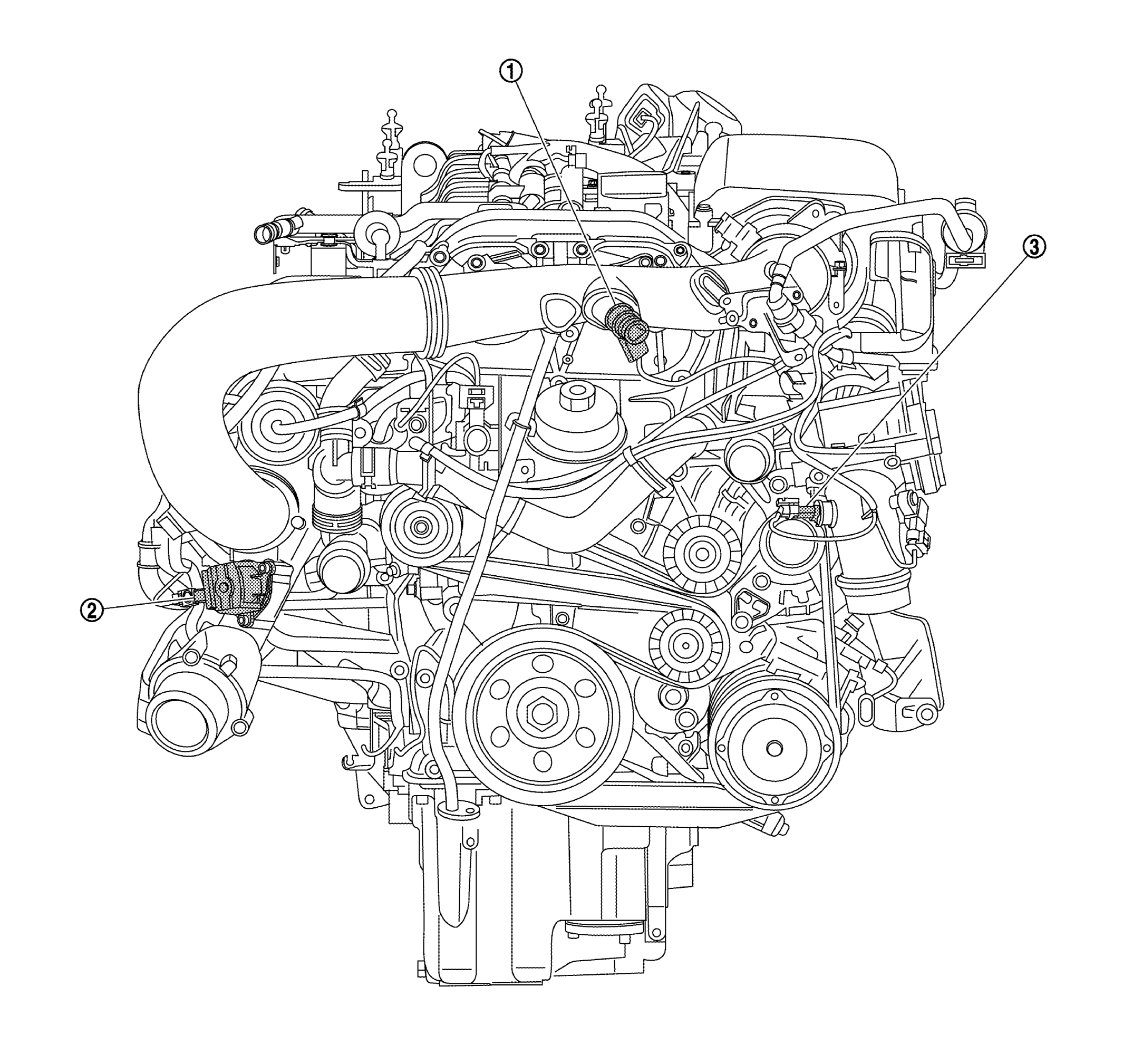

Engine Compartment (Front View)
| No. | Component | Function |
|---|---|---|
| Full-load operation vent line heater element | FULL-LOAD OPERATION VENT LINE HEATER ELEMENT | |
| Divert air switchover valve | SYSTEM DESCRIPTION | |
| Charge air temperature sensor upstream of throttle valve | Senses a charge air temperature upstream of throttle. |
