2016 Infiniti QX60 Base, AWDFACTORY OEM SERVICE PROCEDURE

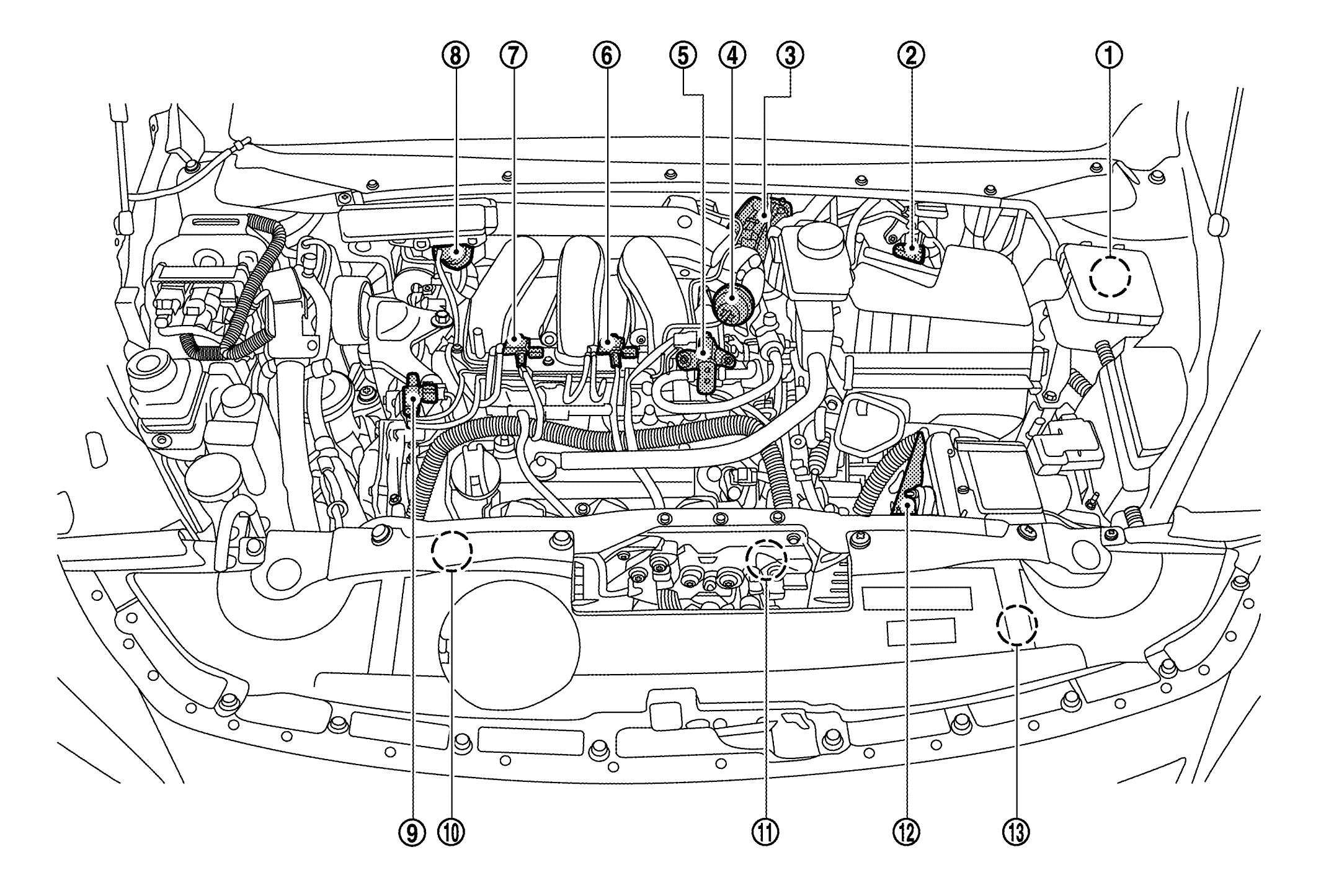

Engine Room
| No. | Component | Function |
|---|---|---|
| 1. | IPDM E/R | IPDM E/R activates the internal control circuit to perform the relay ON-OFF control according to the input signals from various sensors and the request signals received from control units via CAN communication. Refer to COMPONENT PARTS LOCATION for detailed installation location. |
| 2. | Mass air flow sensor (with intake air temperature sensor) | MASS AIR FLOW SENSOR (WITH INTAKE AIR TEMPERATURE SENSOR) |
| 3. | Electric throttle control actuator | ELECTRIC THROTTLE CONTROL ACTUATOR |
| 4. | Power valve actuator 2 | POWER VALVE ACTUATOR 1 AND 2 |
| 5. | EVAP canister purge volume control solenoid valve | EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE |
| 6. | VIAS control solenoid valve 2 | VIAS CONTROL SOLENOID VALVE 1 AND 2 |
| 7. | VIAS control solenoid valve 1 | VIAS CONTROL SOLENOID VALVE 1 AND 2 |
| 8. | Power valve actuator 1 | POWER VALVE ACTUATOR 1 AND 2 |
| 9. | Electronic controlled engine mount control solenoid valve | ELECTRONIC CONTROLLED ENGINE MOUNT |
| 10. | Cooling fan motor-2 | COOLING FAN MOTOR & COOLING FAN CONTROL MODULE |
| 11. | Cooling fan motor-1 | COOLING FAN MOTOR & COOLING FAN CONTROL MODULE |
| 12. | ECM | ECM |
| 13. | Refrigerant pressure sensor | REFRIGERANT PRESSURE SENSOR Refer to COMPONENT PARTS LOCATION for detailed installation location. |
