Work Procedure (Group A)

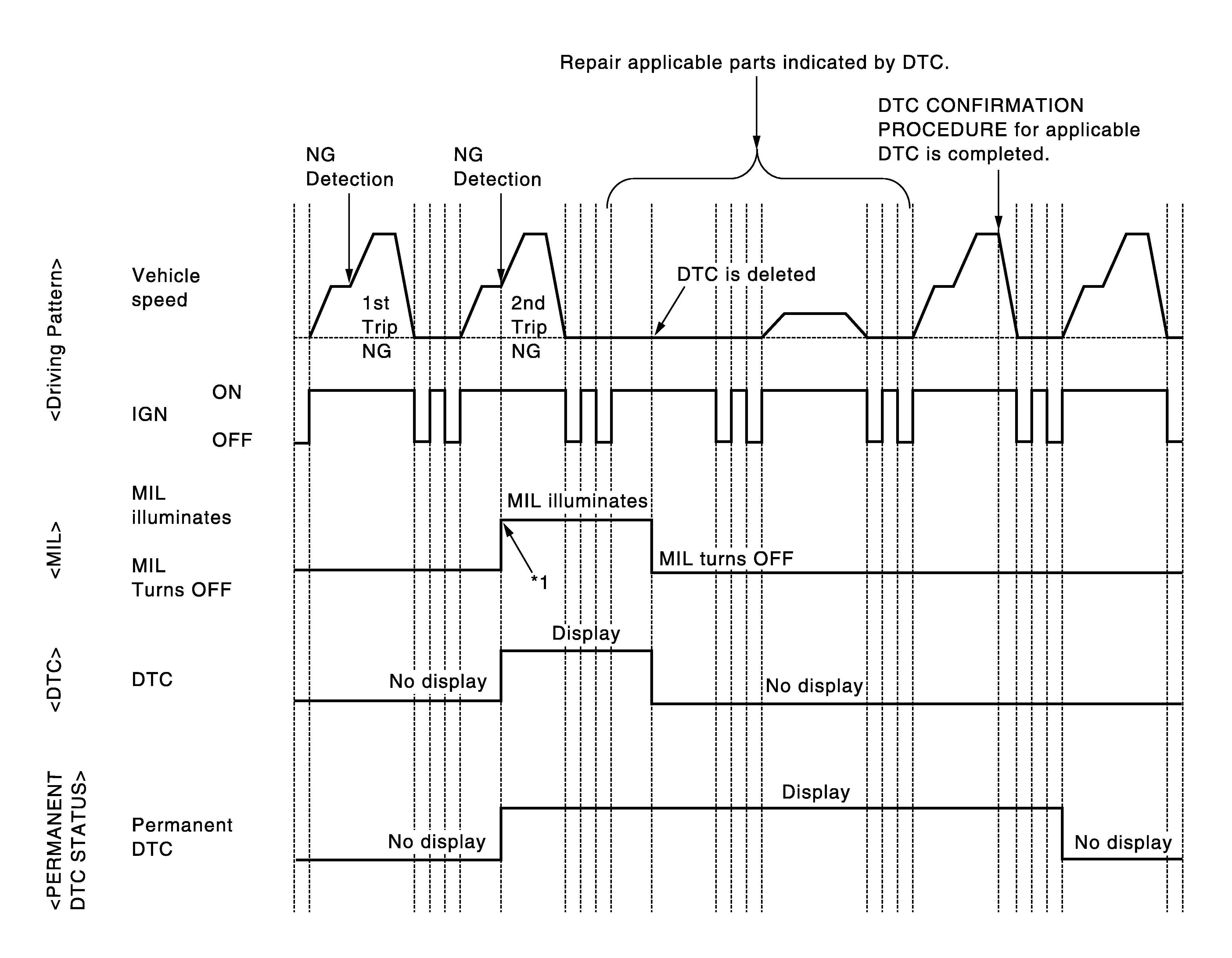

| *1: | When the same malfunction is detected in two consecutive trips, MIL will illuminate. |
- CHECK DTC
Check DTC.
Is any DTC detected?
YES
Repair malfunction(s) and erase DTC. Refer to ON BOARD DIAGNOSIS FUNCTION , CONSULT FUNCTION .
NO
GO TO STEP 2 .
- CHECK PERMANENT DTC
With CONSULT
- Turn ignition switch OFF and wait at least 10 seconds.
- Turn ignition switch ON.
- Turn ignition switch OFF and wait at least 10 seconds.
- Turn ignition switch ON.
- Select "PERMANENT DTC STATUS" mode with CONSULT.
With GST
- Turn ignition switch OFF and wait at least 10 seconds.
- Turn ignition switch ON.
- Turn ignition switch OFF and wait at least 10 seconds.
- Turn ignition switch ON.
- Select Service $0A with GST.
Is any permanent DTC detected?
YES
GO TO STEP 3 .
NO
END
- PERFORM DTC CONFIRMATION PROCEDURE
Perform "DTC CONFIRMATION PROCEDURE" for DTCs which are the same as permanent DTCs stored in ECM. Refer to DTC INDEX .
GO TO STEP 4 .
- CHECK PERMANENT DTC
- Turn ignition switch OFF and wait at least 10 seconds.
- Turn ignition switch ON.
- Turn ignition switch OFF and wait at least 10 seconds.
- Turn ignition switch ON.
- Select "PERMANENT DTC STATUS" mode with CONSULT.
- Turn ignition switch OFF and wait at least 10 seconds.
- Turn ignition switch ON.
- Turn ignition switch OFF and wait at least 10 seconds.
- Turn ignition switch ON.
- Select Service $0A with GST.
Is any permanent DTC detected?
YES
GO TO STEP 1 .
NO
END
