2016 Infiniti QX50 AWDFACTORY OEM SERVICE PROCEDURE

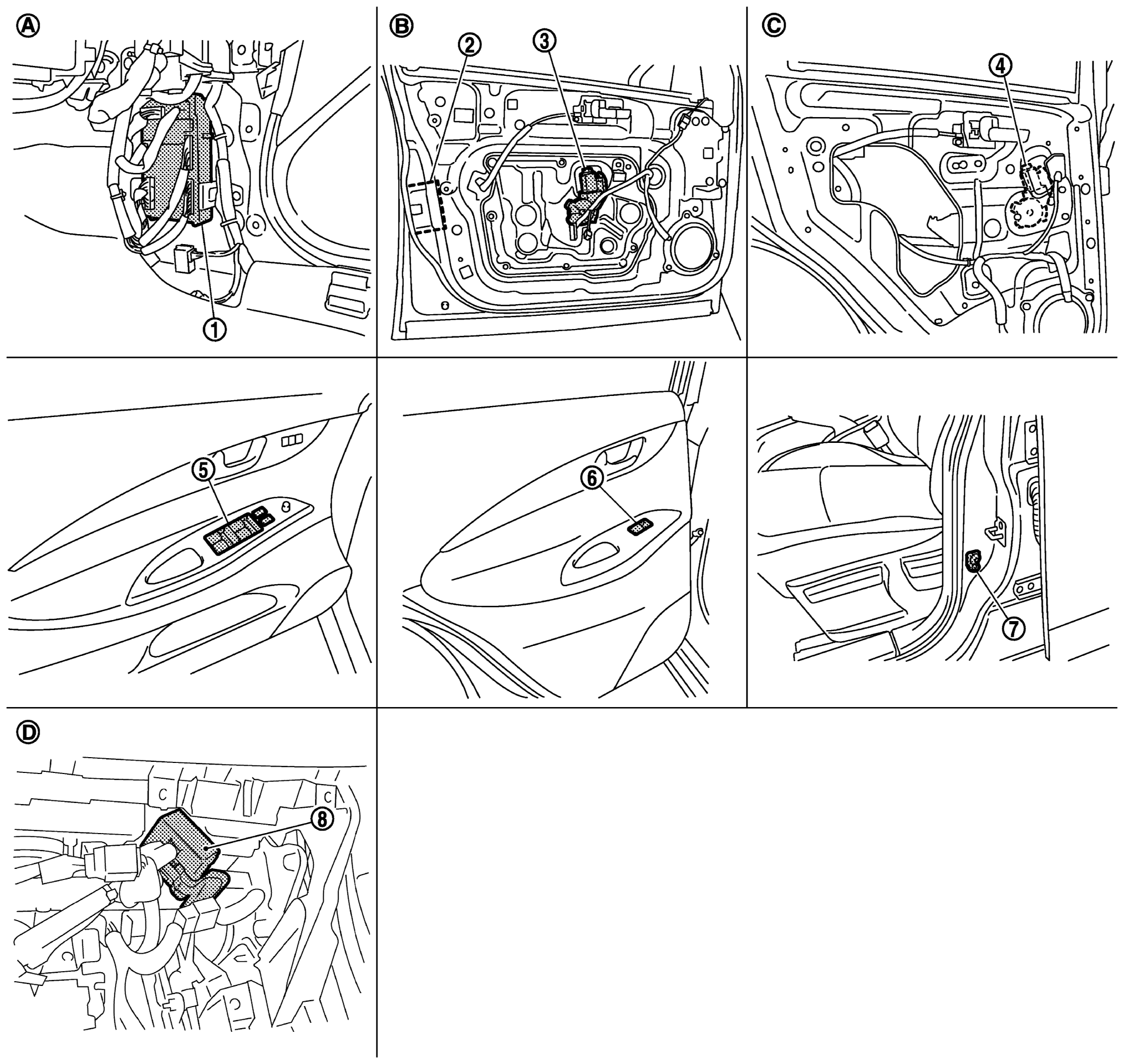

Component Location
| 1. | BCM M118, M119, M122, M123 | 2. | Front door lock assembly (driver side) (key cylinder switch) D15 | 3. | Front power window motor (driver side) D10 |
| 4. | Rear power window motor LH D52 | 5. | Power window main switch D8, D9 | 6. | Rear power window switch LH D54 |
| 7. | Front door switch (driver side) B16 | 8. | Remote keyless entry receiver | ||
| A. | View with dash side lower (passenger side) | B. | View with front door finisher removed | C. | View with rear door finisher removed |
| D. | View with instrument lower panel (passenger side) removed |
