2016 Infiniti Q50 Base, AWDFACTORY OEM SERVICE PROCEDURE

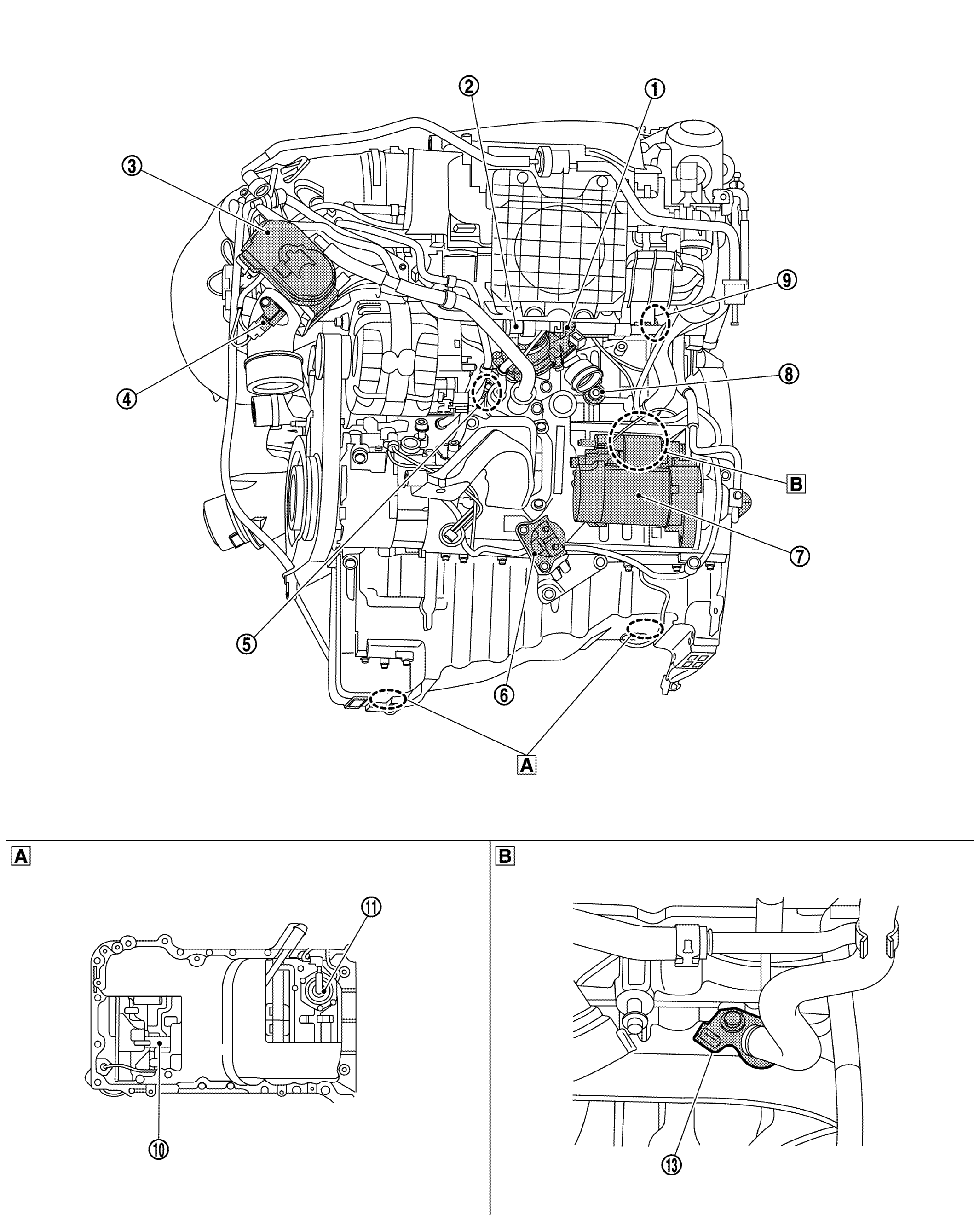

Engine Compartment (Left Side)
| Oil pan | Left side of cylinder block |
| No. | Component | Function |
|---|---|---|
| Coolant thermostat heater element | COOLANT THERMOSTAT HEATER ELEMENT | |
| Partial load operation crankcase ventilation valve | CRANKCASE VENTILATION SYSTEM | |
| Throttle valve actuator | THROTTLE VALVE ACTUATOR | |
| Pressure sensor upstream of throttle valve | Senses charge air pressure downstream of throttle valve. | |
| Knock sensor 1 | KNOCK SENSOR | |
| Engine restart bypass relay | ENGINE RESTART BYPASS RELAY | |
| Starter motor | STARTER MOTOR | |
| Knock sensor 2 | KNOCK SENSOR | |
| Engine coolant temperature sensor | Senses a engine coolant temperature. | |
| Engine oil pump valve | - | |
| Engine oil level switch | - | |
| - | - | |
| Blow by sensor | Senses a leak of blow-by hose. |
