User Registration/Edit

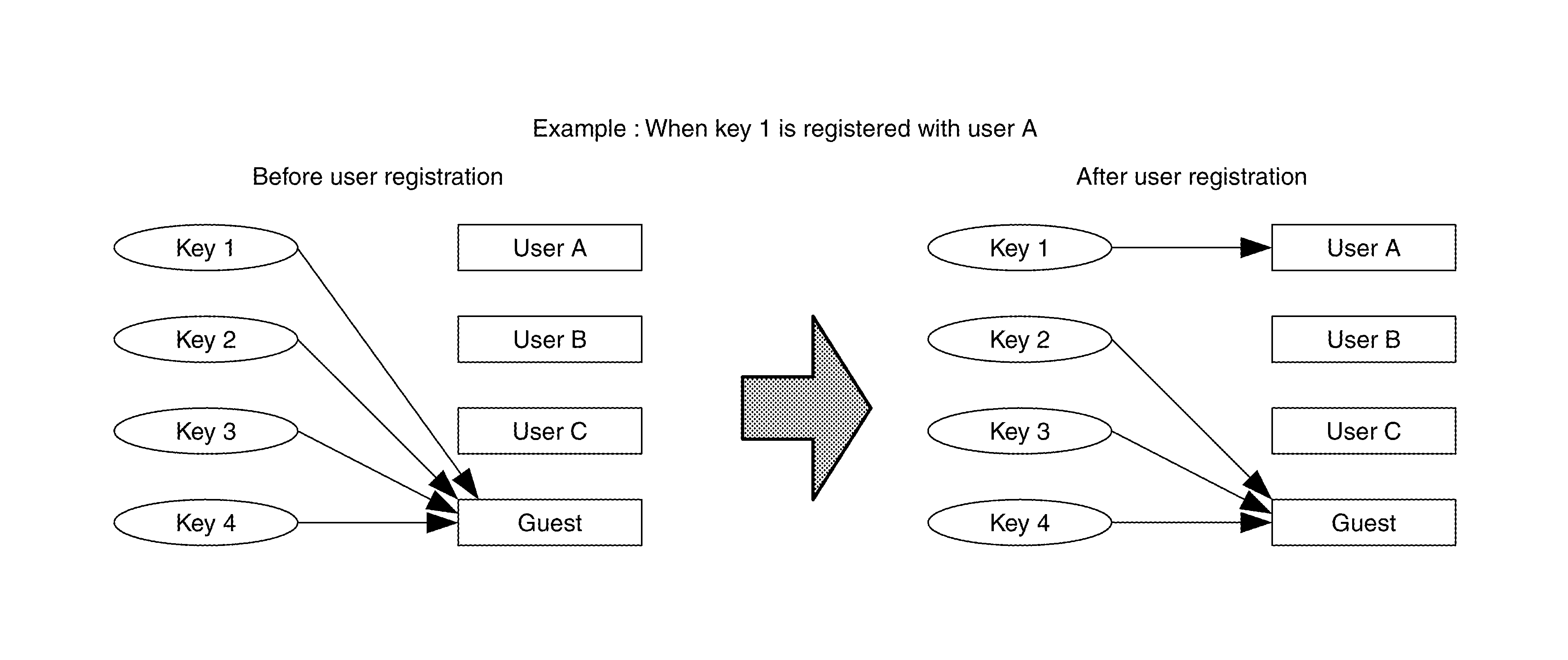

REGISTRATION
- The Intelligent Key used for the first time calls up all the settings for Guest.
- Once a driver performs user registration on the display control unit screen, the settings at this point are saved as the registered user information and linked with the Intelligent Key currently in use.
- If the Intelligent Key is used during the next drive, the registered user settings are applied.
If User A is registered while Key 1 is used, for example, the vehicle uses the settings of User A when entering the vehicle with Key 1 the next time.
- For the user information, the setting status when the key switch is turned OFF is saved.

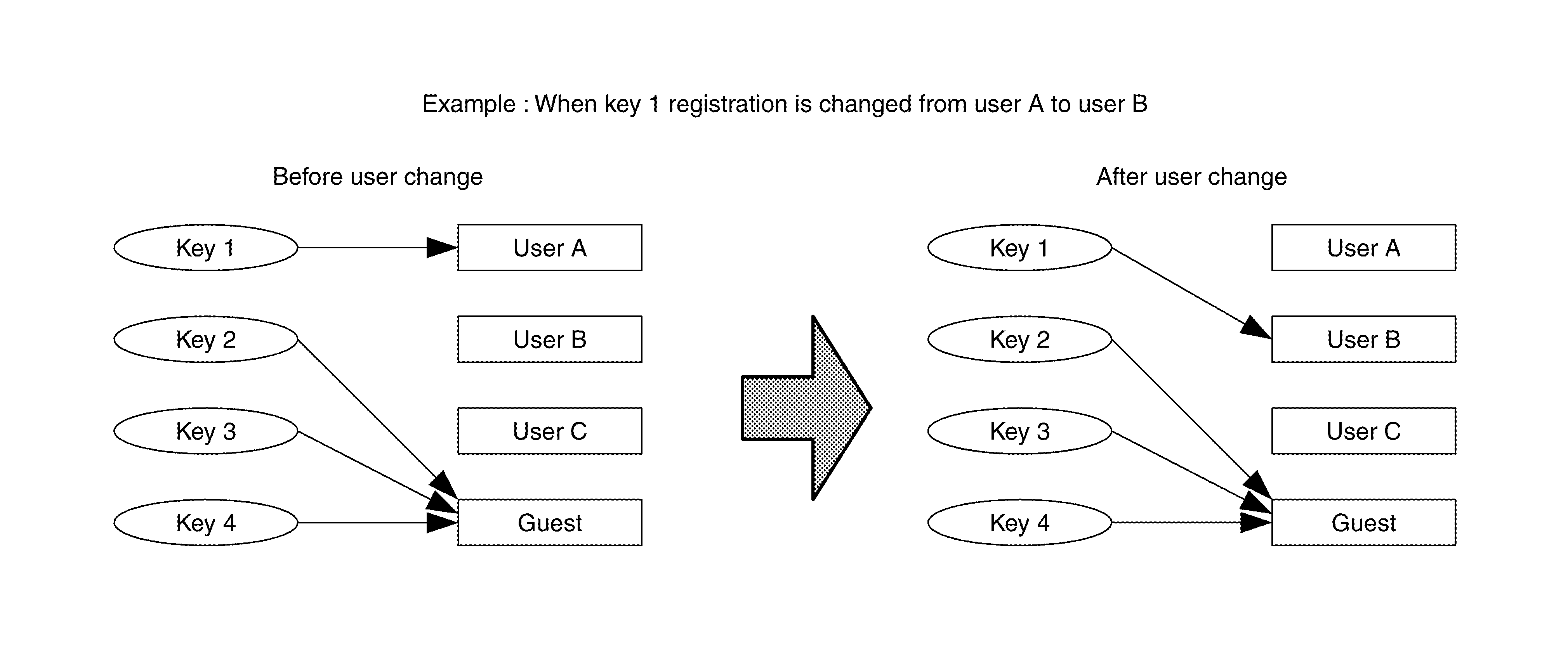

CHANGE
- To change the current user settings to new user settings, the user settings can be changed in the display control unit.
- Once a user change operation is performed, the new user and the currently used Intelligent Key are linked.
When the user is changed, the display control unit screen enters a hatching state and prohibits the operation for approximately 2 seconds to secure the necessary period of time to change the user in each unit.

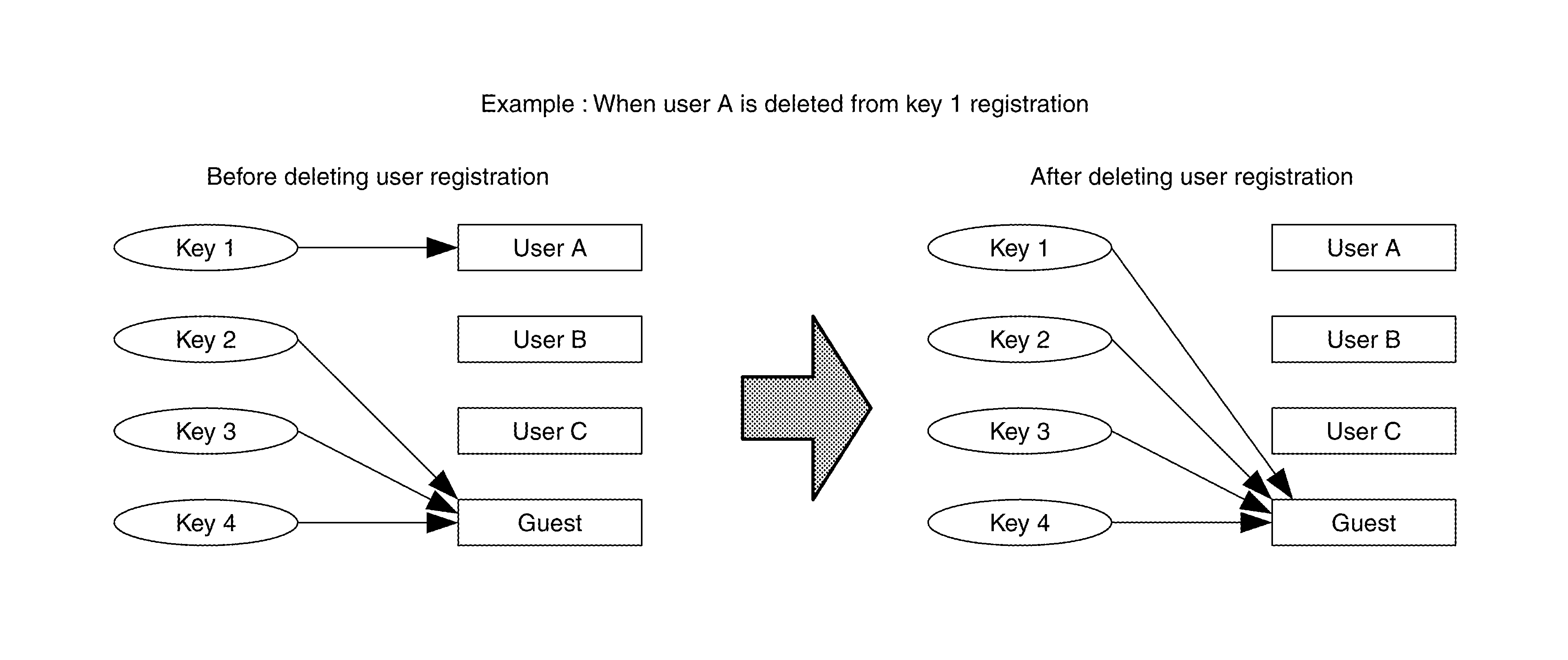

DELETE
- The registered user information can be deleted.
- The Intelligent Key linked with the deleted user settings will call up the setting of Guest from the next time.
- If the current user is deleted, the settings for Guest are called up.
- The deleted user settings are changed*
to the default settings.
* : Since no default settings are provided for seat positions, mirror positions, and A/C settings, the old settings remain unchanged instead of returning to the default settings.
COPY
- The previously registered user settings can be copied to the settings of another user.
