High Pressure Fuel Pump
The high pressure fuel pump is installed at the front of the engine bank 2 side and activated by the camshaft.
ECM controls the high pressure fuel pump control solenoid valve built into the high pressure fuel pump and adjusts the amount of discharge by changing the suction timing of the low pressure fuel.
Operating Description

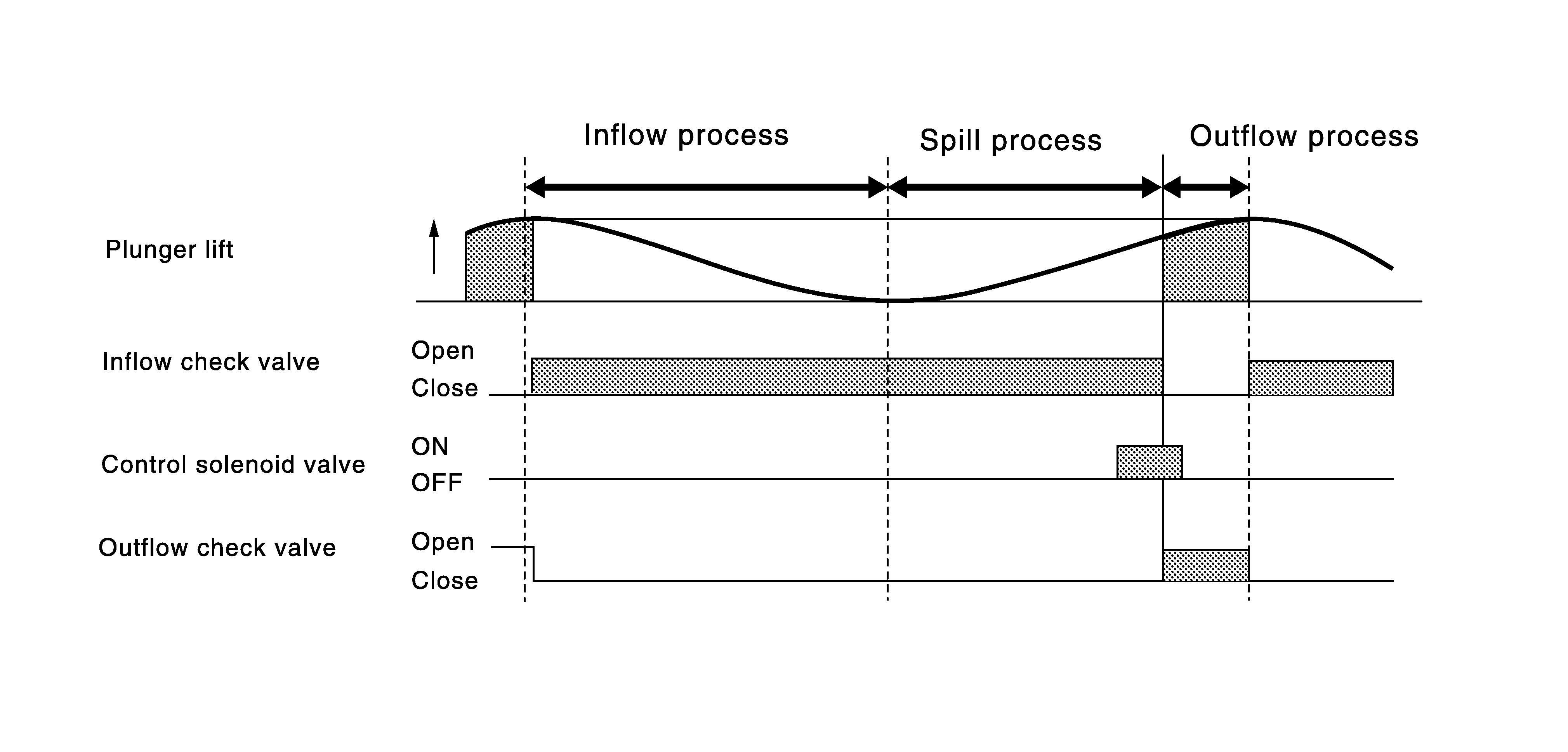

Operating Chart
