Electrically-Controlled Cooling Fan Coupling
Electrically-controlled cooling fan coupling is integrated with a fan coupling, fan coupling driver, and fan speed sensor, mounted to the fan pulley, and actuated by the drive belt to rotate the cooling fan at a speed suitable for a driving condition.

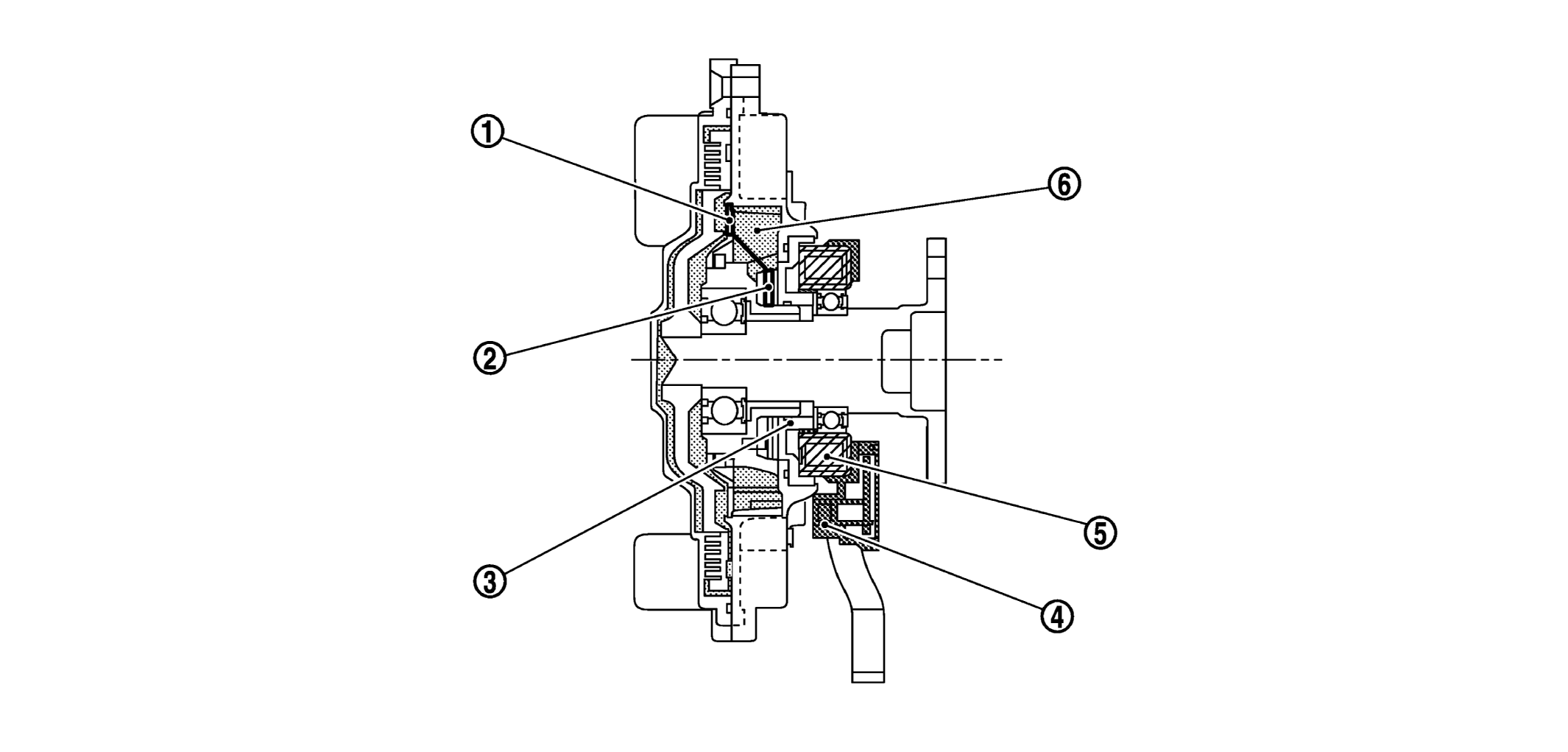

| 1. | Valve | 2. | Armature | 3. | Magnet Loop Element |
| 4. | Fan speed sensor | 5. | Coil | 6. | Silicon oil |
