2015 Infiniti QX80 Base, AWDFACTORY OEM SERVICE PROCEDURE

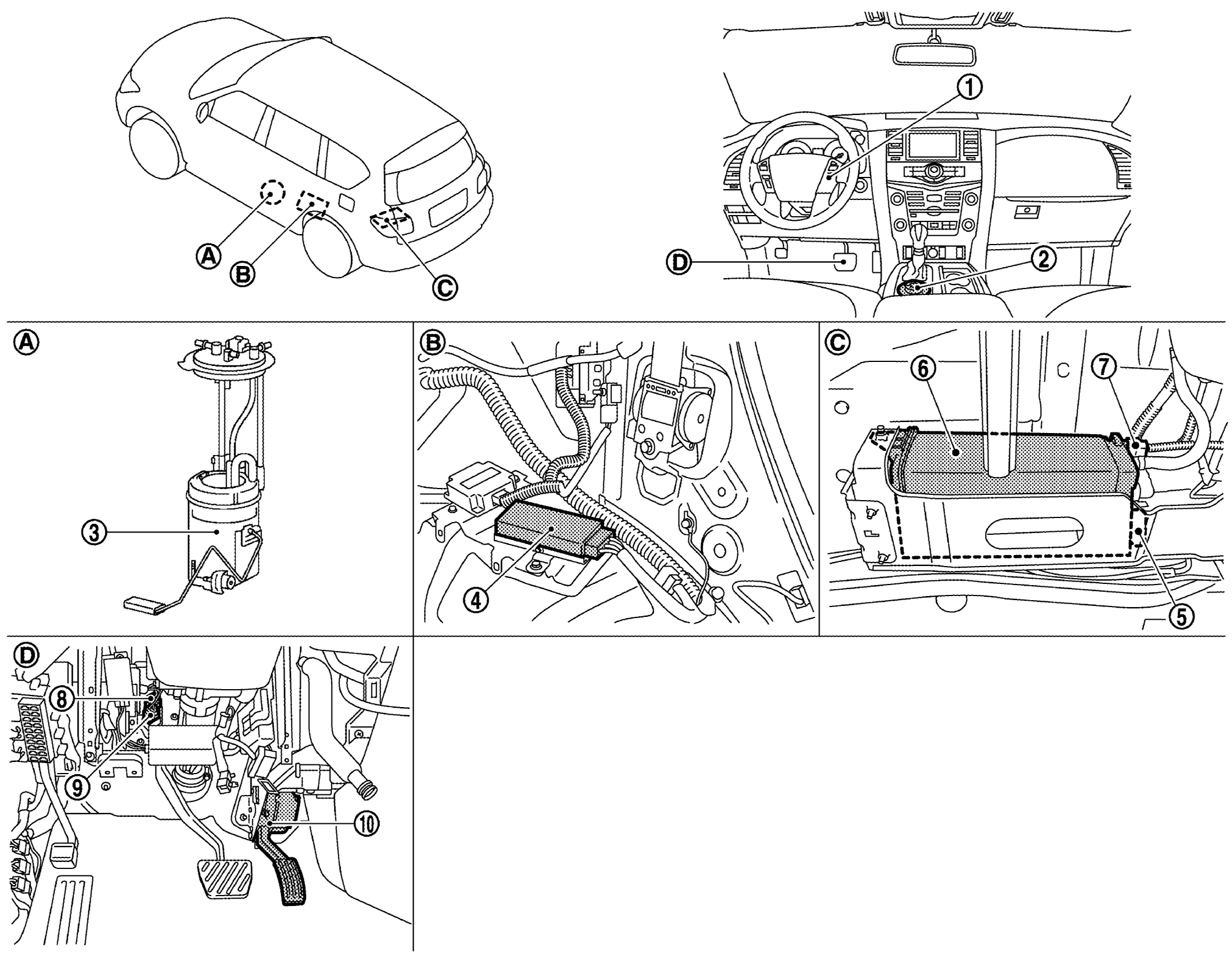

Body Compartment
| 1. | ASCD steering switch ICC steering switch |
2. | Snow mode switch | 3. | Fuel level sensor unit and fuel pump assembly (with fuel tank temperature sensor) |
| 4. | Fuel pump control module (FPCM) | 5. | EVAP canister vent control valve | 6. | EVAP canister |
| 7. | EVAP control system pressure sensor | 8. | Stop lamp switch | 9. | ASCD brake switch ICC brake switch |
| 10. | Accelerator pedal position sensor |
