2015 Infiniti QX60 Base, AWDFACTORY OEM SERVICE PROCEDURE

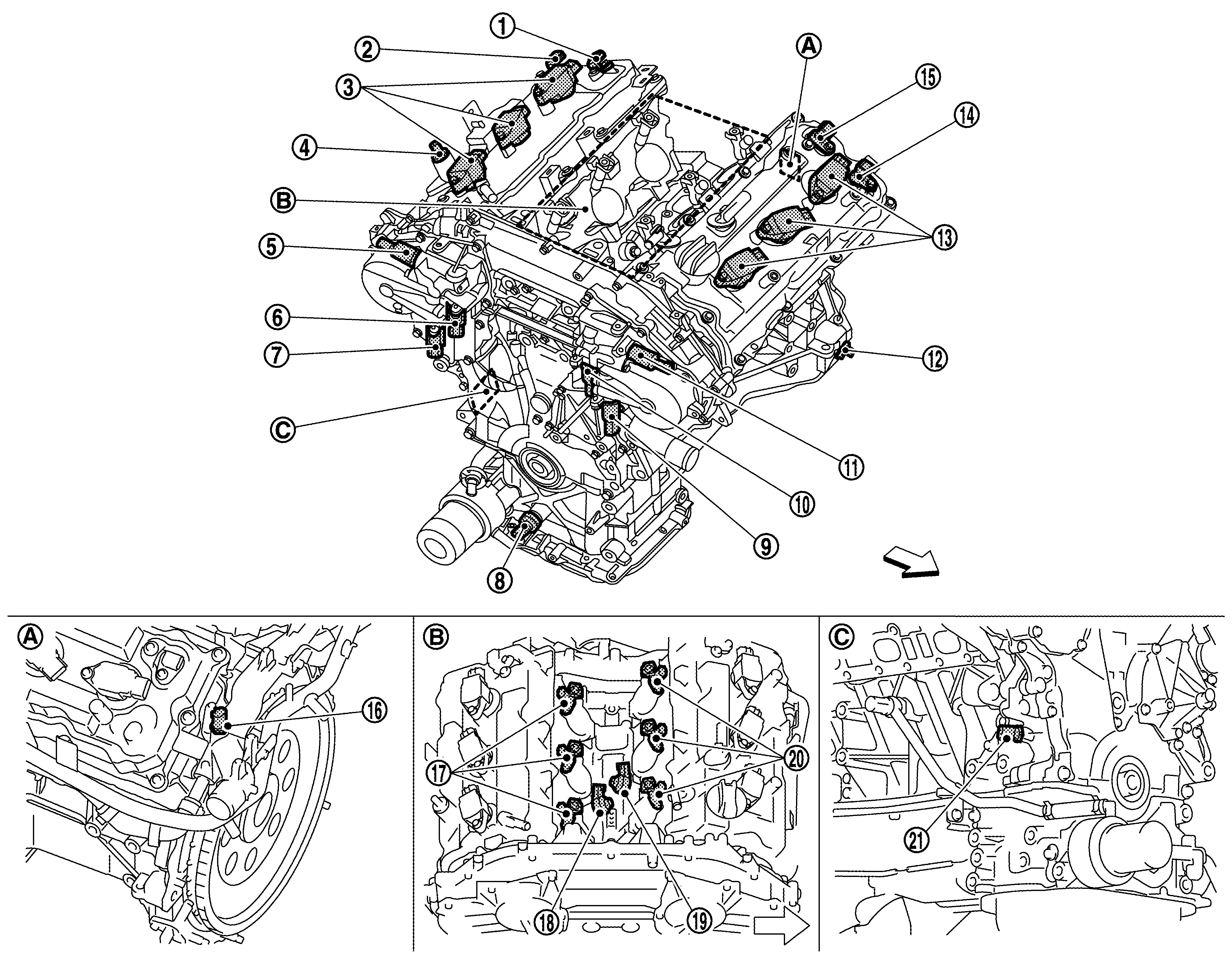

Component Parts Location: Engine
| Engine rear upper-left | Engine top center | Engine front lower-right | |||
| : Vehicle front |
| No. | Component | Function |
|---|---|---|
| Camshaft position sensor (PHASE) (bank 1) | CAMSHAFT POSITION SENSOR (PHASE) | |
| Exhaust valve timing control position sensor (bank 1) | EXHAUST VALVE TIMING CONTROL POSITION SENSOR | |
| Ignition coil (with power transistor) (bank 1) | IGNITION COIL (WITH POWER TRANSISTOR) | |
| PCV valve | POSITIVE CRANKCASE VENTILATION (PCV) | |
| Intake valve timing intermediate lock control solenoid valve (bank 1) | INTAKE VALVE TIMING INTERMEDIATE LOCK CONTROL SOLENOID VALVE | |
| Intake valve timing control solenoid valve (bank 1) | INTAKE VALVE TIMING CONTROL SOLENOID VALVE | |
| Exhaust valve timing control solenoid valve (bank 1) | EXHAUST VALVE TIMING CONTROL SOLENOID VALVE | |
| Engine oil pressure sensor | ENGINE OIL PRESSURE SENSOR | |
| Exhaust valve timing control solenoid valve (bank 2) | EXHAUST VALVE TIMING CONTROL SOLENOID VALVE | |
| Intake valve timing control solenoid valve (bank 2) | INTAKE VALVE TIMING CONTROL SOLENOID VALVE | |
| Intake valve timing intermediate lock control solenoid valve (bank 2) | INTAKE VALVE TIMING INTERMEDIATE LOCK CONTROL SOLENOID VALVE | |
| Crankshaft position sensor (POS) | CRANKSHAFT POSITION SENSOR (POS) | |
| Ignition coil (with power transistor) (bank 2) | IGNITION COIL (WITH POWER TRANSISTOR) | |
| Exhaust valve timing control position sensor (bank 2) | EXHAUST VALVE TIMING CONTROL POSITION SENSOR | |
| Camshaft position sensor (PHASE) (bank 2) | CAMSHAFT POSITION SENSOR (PHASE) | |
| Engine coolant temperature sensor | ENGINE COOLANT TEMPERATURE SENSOR | |
| Fuel injector (bank 1) | FUEL INJECTOR | |
| Knock sensor (bank 1) | KNOCK SENSOR | |
| Knock sensor (bank 2) | KNOCK SENSOR | |
| Fuel injector (bank 2) | FUEL INJECTOR | |
| Engine oil temperature sensor | ENGINE OIL TEMPERATURE SENSOR |
