2015 Infiniti QX60 Base, AWDFACTORY OEM SERVICE PROCEDURE

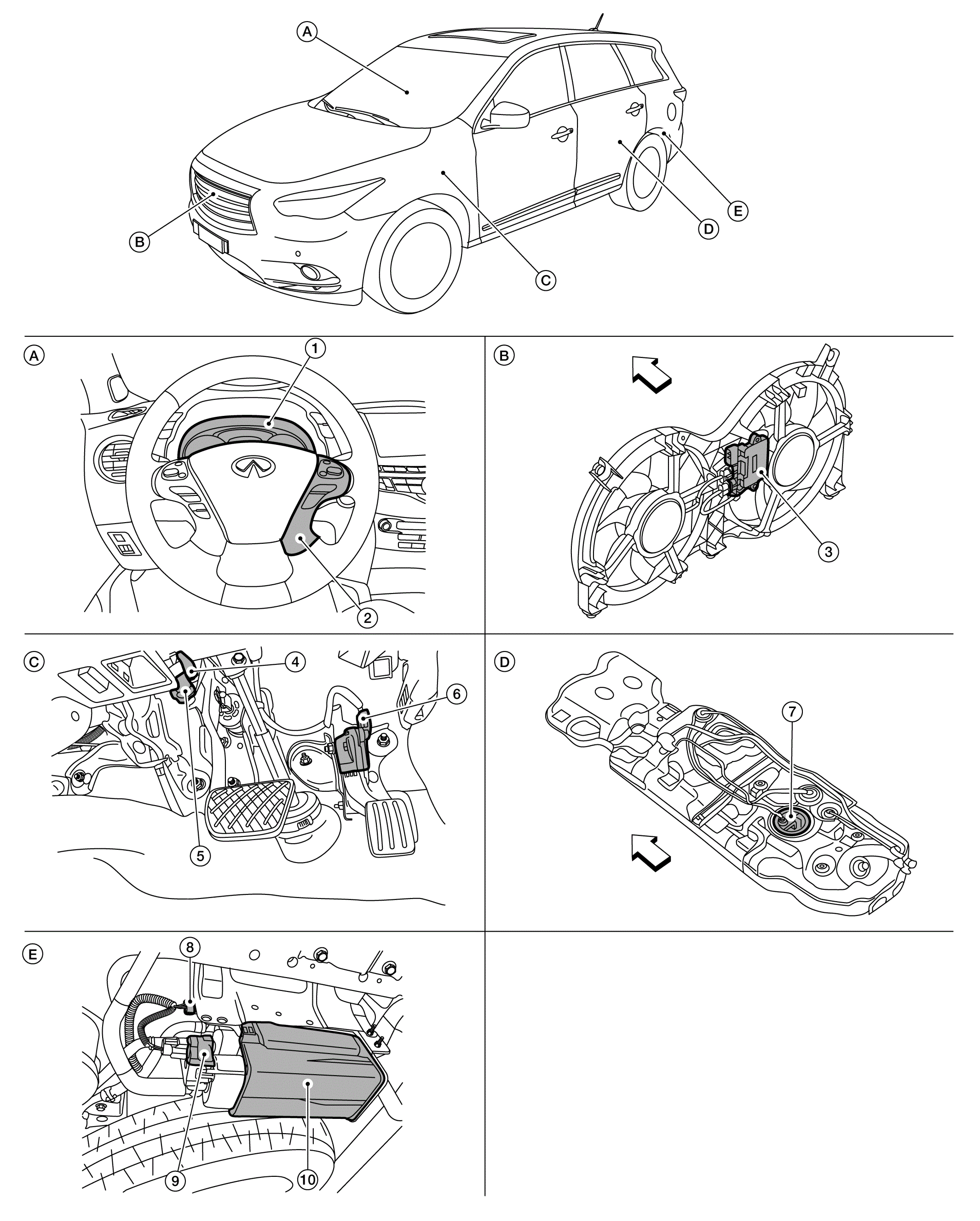

Component Parts Location: Body
| A. | Instrument panel periphery (driver side) | B. | Front side of engine room (cooling fan assembly) | C. | Pedal periphery |
| D. | Under of rear seat (fuel tank) | E. | Under the spare tire housing | ||
| : Vehicle front |
| No. | Component | Function | |
|---|---|---|---|
| 1. | Combination meter | Malfunction indicator lamp (MIL) | MALFUNCTION INDICATOR LAMP (MIL) |
| Information display | The operation mode of the ASCD is indicated on the information display in the combination meter. ECM transmits the status signal to the combination meter via CAN communication according to ASCD operation. |
||
| 2. | ASCD Steering switch / ICC steering switch | ASCD STEERING SWITCH / ICC STEERING SWITCH | |
| 3. | Cooling fan control module | COOLING FAN MOTOR & COOLING FAN CONTROL MODULE | |
| 4. | Stop lamp switch | STOP LAMP SWITCH & BRAKE PEDAL POSITION SWITCH | |
| 5. | Brake pedal position switch | STOP LAMP SWITCH & BRAKE PEDAL POSITION SWITCH | |
| 6. | Accelerator pedal position sensor | ACCELERATOR PEDAL POSITION SENSOR | |
| 7. | Fuel level sensor unit and fuel pump (with fuel tank temperature sensor) | FUEL LEVEL SENSOR UNIT AND FUEL PUMP (WITH FUEL TANK TEMPERATURE SENSOR) Refer to EXPLODED VIEW for detailed installation location. |
|
| 8. | EVAP control system pressure sensor | EVAP CONTROL SYSTEM PRESSURE SENSOR | |
| 9. | EVAP canister vent control valve | EVAP CANISTER VENT CONTROL VALVE | |
| 10. | EVAP canister | EVAP CANISTER | |
