2015 Infiniti Q60 Base, 2D ConvertibleFACTORY OEM SERVICE PROCEDURE

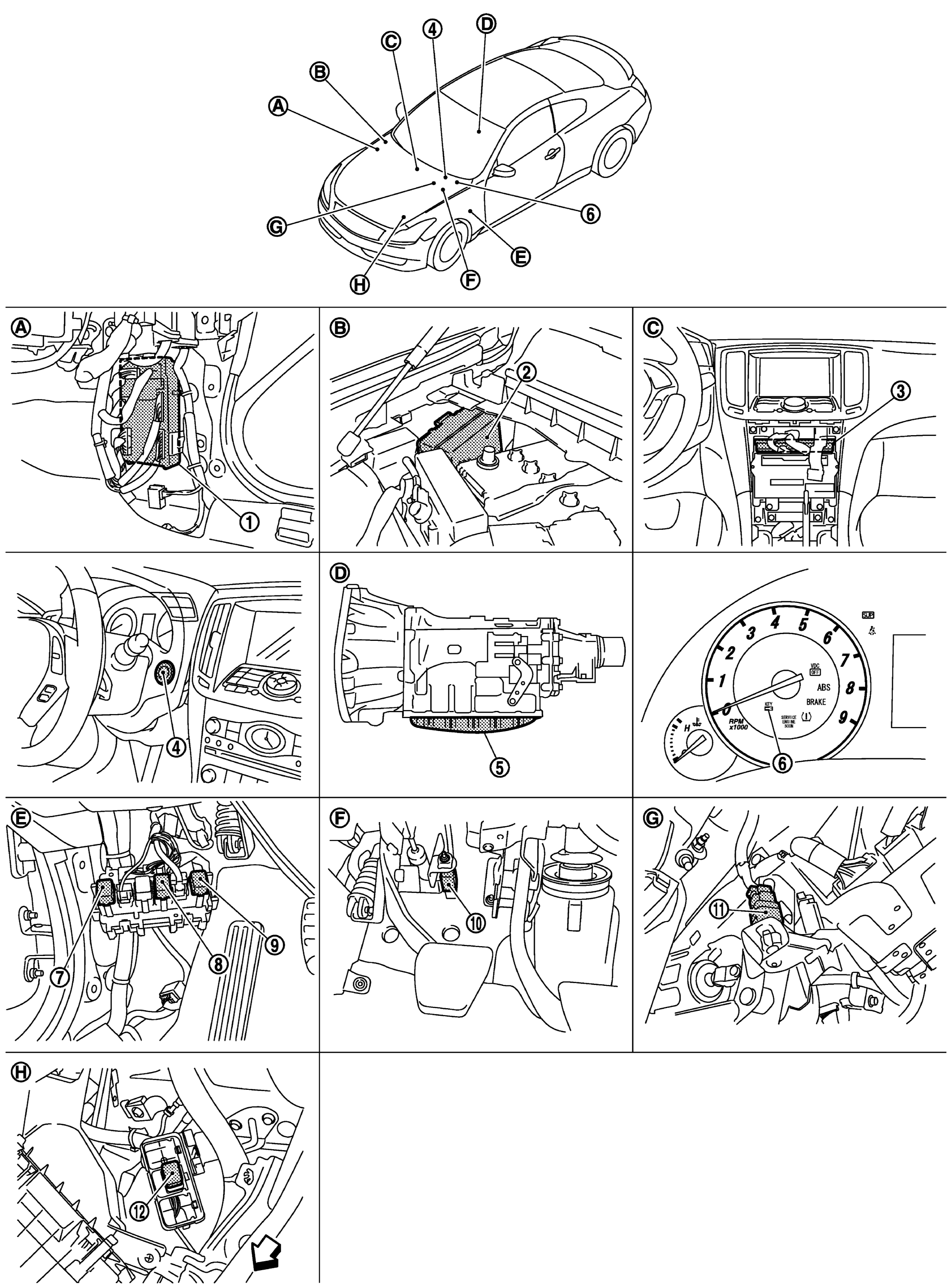

Component Parts Location
| 1. | BCM | 2. | IPDM E/R | 3. | Unified meter and A/C AMP. |
| 4. | Push-button ignition switch | 5. | TCM | 6. | Combination meter (Key warning lamp) |
| 7. | Ignition relay | 8. | Accessory relay | 9. | Blower relay |
| 10. | Clutch interlock switch | 11. | Stop lamp switch | 12. | ICC brake hold relay |
| A. | Dash side lower (Passenger side). | B. | Engine room dash panel (RH). | C. | Behind cluster lid C. |
| D. | Inside of A/T (built into A/T). | E. | View with dash side LH removed. | F | View with instrument driver lower cover removed. |
| G. | View with instrument driver lower cover removed. | H. | Left view of engine room |
