2015 Infiniti Q60 Base, 2D Convertible
Component Parts Location
2015 Infiniti Q60 Base, 2D ConvertibleSECTION Component Parts Location

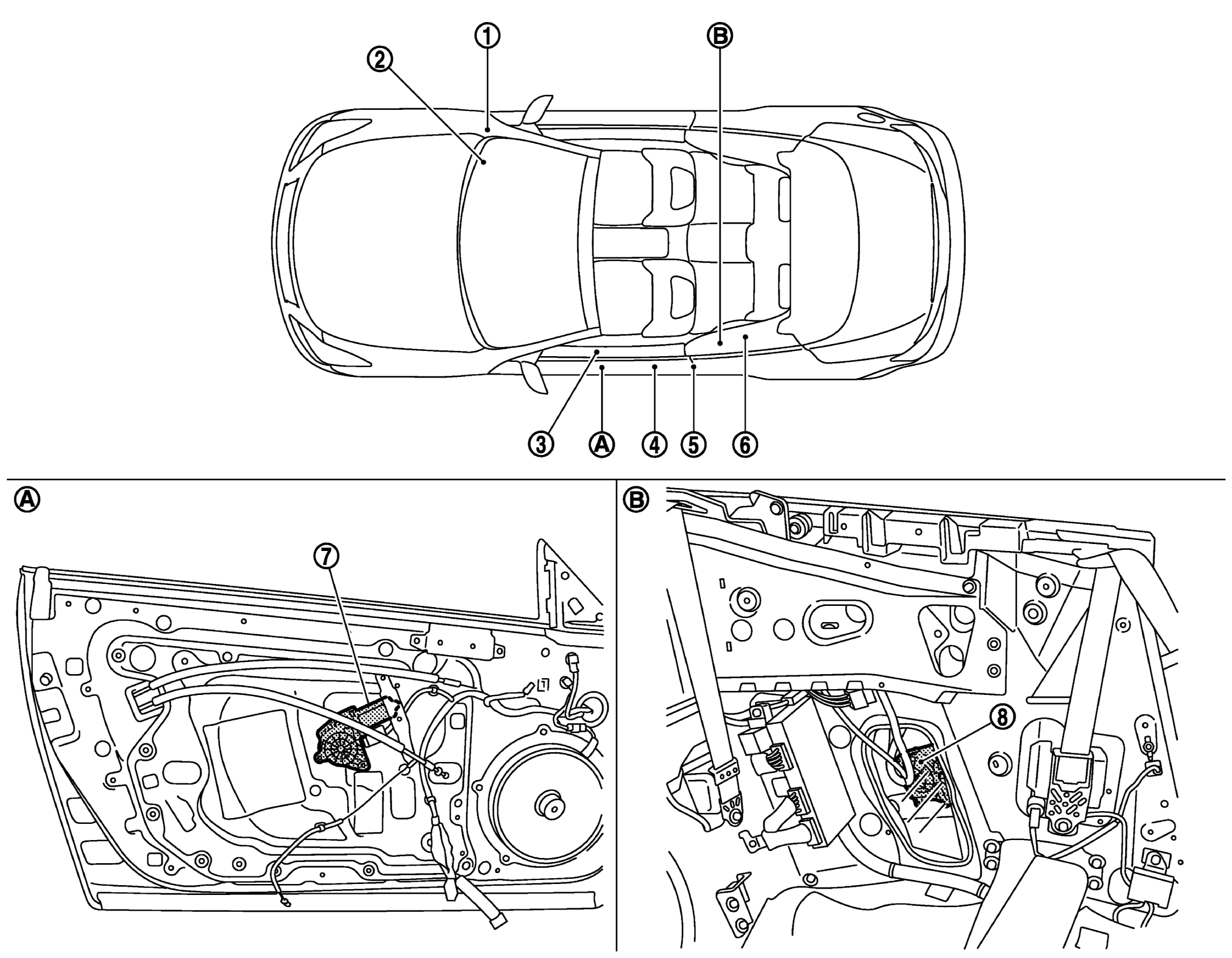

| 1. | BCM M118, M119, M122, M123 Refer to COMPONENT PARTS LOCATION . |
2. | Remote keyless entry receiver M104 Refer to COMPONENT PARTS LOCATION . |
3. | Power window main switch D8, D9 |
| 4. | Driver side door lock assembly (key cylinder switch) D15 | 5. | Driver side door switch B16 | 6. | Retractable hard top control unit B82, B83 Refer to COMPONENT PARTS LOCATION . |
| 7. | Driver side power window motor D10 | 8. | Rear power window motor LH B653 | ||
| A. | View with dash side lower (passenger side) | B. | View with door finisher removed |
