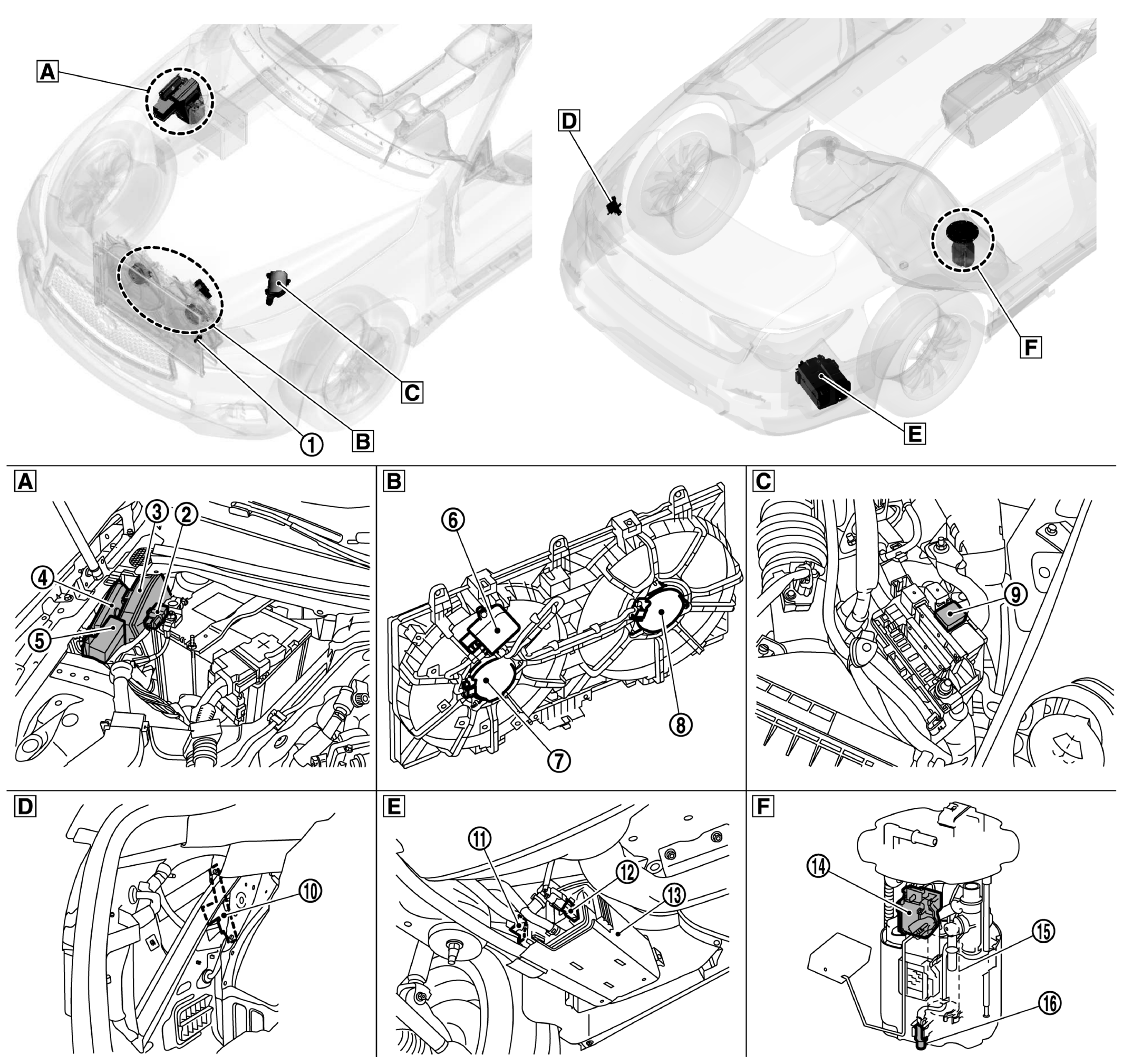

Vehicle Compartment
| Around the battery | Around the radiator | Fuse and fusible link block | |||
| Left side of trunk room | Right side of main muffler | Rear seat (lower right) |
| No. | Component | Function |
|---|---|---|
| Refrigerant pressure sensor | REFRIGERANT PRESSURE SENSOR Refer to COMPONENT PARTS LOCATION for installation. |
|
| Battery current sensor (with battery temperature sensor) | BATTERY CURRENT SENSOR (WITH BATTERY TEMPERATURE SENSOR) | |
| IPDM E/R | IPDM E/R control the internal relays and the actuators. When CAN communication with ECM is impossible, IPDM E/R performs fail-safe control. |
|
| VVEL control module | VVEL CONTROL MODULE | |
| VVEL actuator motor relay | VVEL ACTUATOR MOTOR RELAY | |
| Cooling fan control module | COOLING FAN | |
| Cooling fan motor - 1 | COOLING FAN | |
| Cooling fan motor - 2 | COOLING FAN | |
| Cooling fan relay | COOLING FAN | |
| Fuel pump control module* | FUEL PUMP CONTROL MODULE | |
| EVAP canister vent control valve | EVAP CANISTER VENT CONTROL VALVE | |
| EVAP control system pressure sensor | EVAP CONTROL SYSTEM PRESSURE SENSOR | |
| EVAP canister | EVAP canister stores the generated fuel vapors in the sealed fuel tank to activated charcoals of EVAP canister when the engine is not operating or when refueling to the fuel tank. | |
| Fuel level sensor | FUEL LEVEL SENSOR | |
| Fuel pump | FUEL PUMP | |
| Fuel tank temperature sensor | FUEL TANK TEMPERATURE SENSOR |
*: With fuel pump control module (FPCM) models. Refer to HOW TO CHECK VEHICLE TYPE .
