2014 Infiniti QX80 AWDFACTORY OEM SERVICE PROCEDURE

Valve Lift Operation

Rotational movement of the drive shaft equipped with eccentric cam is transmitted to output cam via the rocker arm and two kinds of links to depress the intake valve.

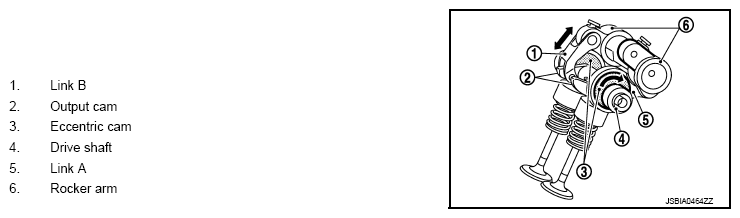

Fig 1: VVEL System Valve Lift Operation

Courtesy of NISSAN NORTH AMERICA, INC.
