2014 Infiniti QX60 Base, AWDFACTORY OEM SERVICE PROCEDURE

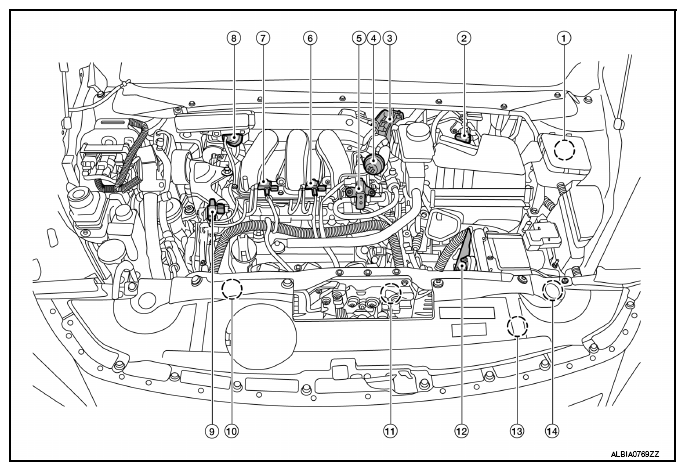

Engine Room
| No. | Component | Function | ||
|---|---|---|---|---|
| 1. | IPDM E/R | IPDM E/R activates the internal control circuit to perform the relay ON-OFF control according to the input signals from various sensors and the request signals received from control units via CAN communication. Refer to "COMPONENT PARTS LOCATION " for detailed installation location. |
||
| 2. | Mass air flow sensor (with intake air temperature sensor) | "MASS AIR FLOW SENSOR (WITH INTAKE AIR TEMPERATURE SENSOR) " | ||
| 3. | Electric throttle control actuator | "ELECTRIC THROTTLE CONTROL ACTUATOR " | ||
| 4. | Power valve actuator 2 | "POWER VALVE ACTUATOR 1 AND 2 " | ||
| 5. | EVAP canister purge volume control solenoid valve | "EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE " | ||
| 6. | VIAS control solenoid valve 2 | "VIAS CONTROL SOLENOID VALVE 1 AND 2 " | ||
| 7. | VIAS control solenoid valve 1 | "VIAS CONTROL SOLENOID VALVE 1 AND 2 " | ||
| 8. | Power valve actuator 1 | "POWER VALVE ACTUATOR 1 AND 2 " | ||
| 9. | Electronic controlled engine mount control solenoid valve | "ELECTRONIC CONTROLLED ENGINE MOUNT " | ||
| 10. | Cooling fan motor-2 | "COOLING FAN MOTOR & COOLING FAN CONTROL MODULE " | ||
| 11. | Cooling fan motor-1 | "COOLING FAN MOTOR & COOLING FAN CONTROL MODULE " | ||
| 12. | ECM | "ECM " | ||
| 13. | Refrigerant pressure sensor | "REFRIGERANT PRESSURE SENSOR " Refer to "FRONT AUTOMATIC AIR CONDITIONING SYSTEM: COMPONENT PARTS LOCATION " for detailed installation location. |
||
| 14. | Battery current sensor (With Battery Temperature Sensor)(1) | "BATTERY CURRENT SENSOR (WITH BATTERY TEMPERATURE SENSOR) " | ||
|
||||
