2014 Infiniti Q50 Base, AWDFACTORY OEM SERVICE PROCEDURE

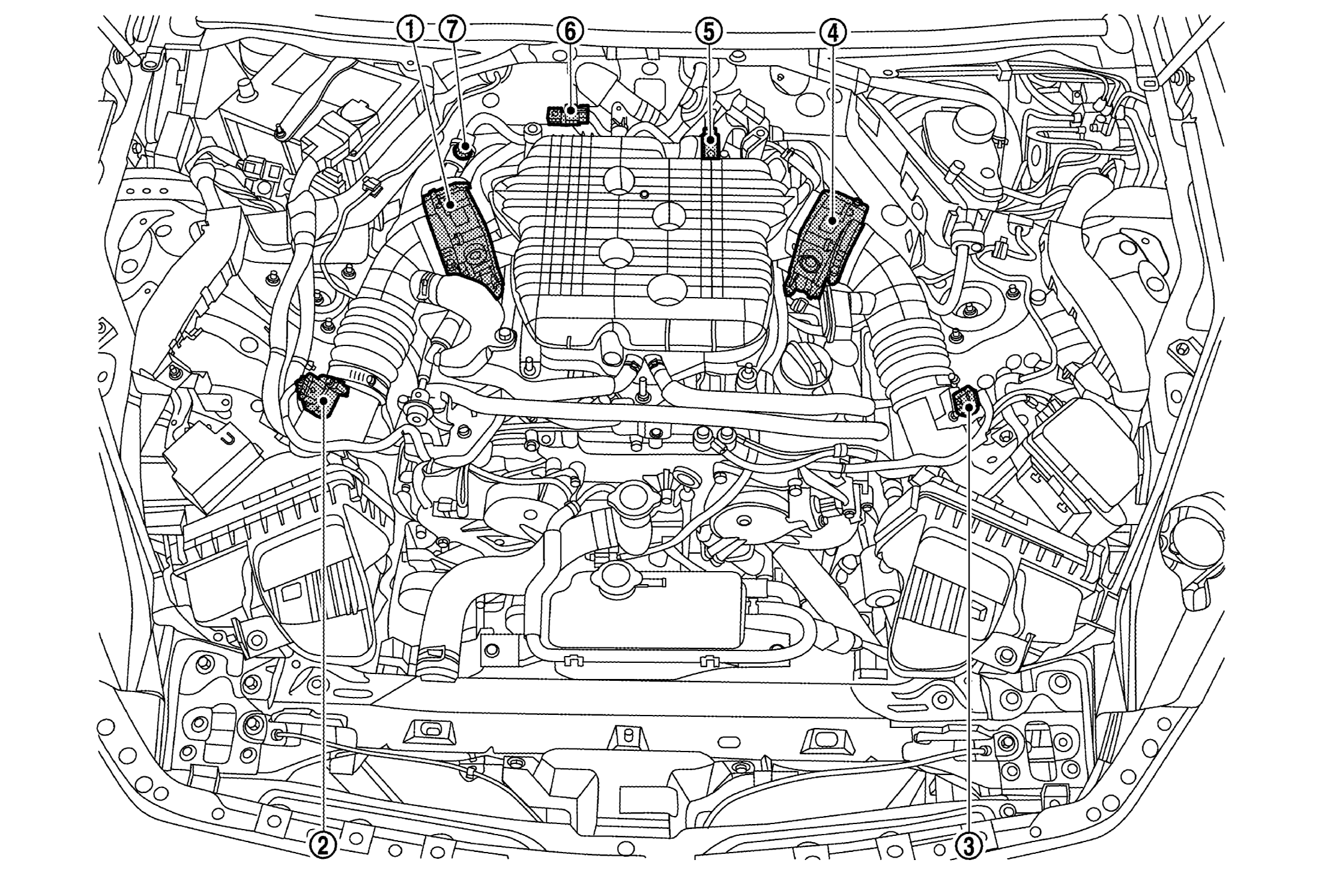

Engine Room Component
| No. | Component | Function | ||
|---|---|---|---|---|
| (1) | Electric throttle control actuator (bank 1) | "ELECTRIC THROTTLE CONTROL ACTUATOR " | ||
| (2) | Mass air flow sensor (with intake air temperature sensor) (bank 1) | "MASS AIR FLOW SENSOR " | ||
| (3) | Mass air flow sensor (bank 2) | "MASS AIR FLOW SENSOR " | ||
| (4) | Electric throttle control actuator (bank 2) | "ELECTRIC THROTTLE CONTROL ACTUATOR " | ||
| (5) | Manifold absolute pressure sensor(1) | "MANIFOLD ABSOLUTE PRESSURE SENSOR " | ||
| (6) | EVAP canister purge volume control solenoid valve | "EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE " | ||
| (7) | EVAP service port | "FOR NORTH AMERICA: INSPECTION " | ||
|
||||
